190501-00-00-05 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

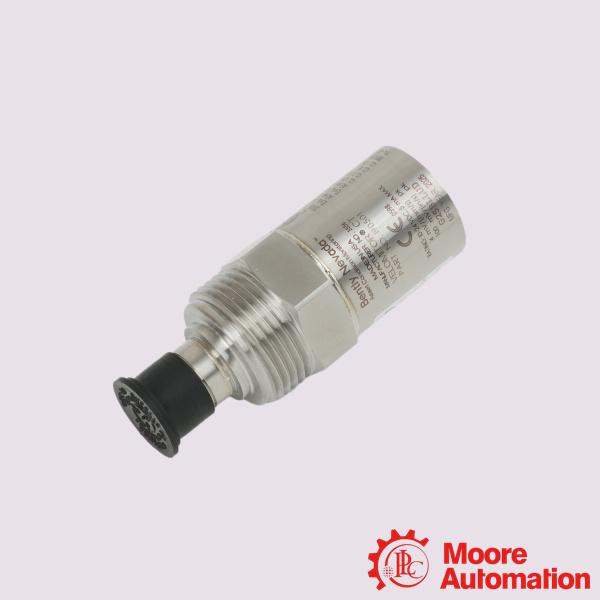

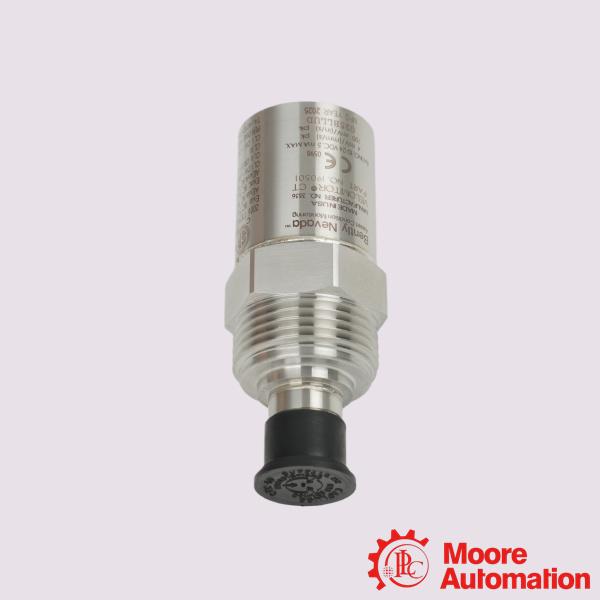

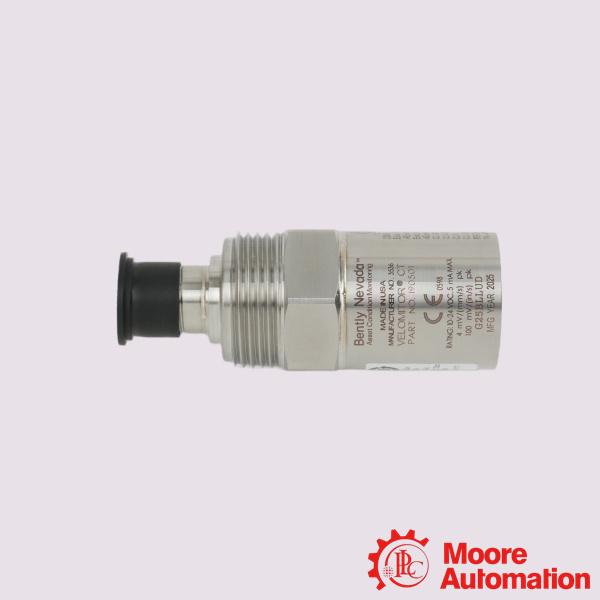

Bently Nevada 190501-00-00-05 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-00-00-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-00-00-05 Velomitor CT Velocity Transducer

Full Description:	The Bently Nevada 190501-00-00-05 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-00-00-05 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Petrochemical and Refining: Protecting process-critical air coolers and refinery cooling water loops.
Power Generation: Ensuring continuous operation of cooling towers tied to main steam turbine condensers.
Chemical Processing: Monitoring heat exchangers vulnerable to structural stresses.
Pulp and Paper / Heavy Manufacturing: Protecting secondary fluid handling machinery.

Frequently Asked Questions (FAQ)

Q:What is the main difference between this and a standard Velomitor?
A:The 190501 Velomitor CT features a downward-adjusted frequency range to monitor slow-moving machinery. While standard velocity sensors roll off early, the CT version accurately measures vibration frequencies for cooling towers or heat exchanger fan assemblies running as low as 90 RPM (1.5 Hz).
Q:What are its environmental limits?
A:According to the official Baker Hughes Transducer Datasheet, it features an operating temperature range of -40 °C to +85 °C (-40 °F to +185 °F) and a 100% condensing, non-submerged humidity limit. It also has a maximum shock limit of 5,000 g pk.

Q:What is the maximum allowed cable distance?
A:The sensor supports up to a maximum continuous cable length of 305 meters (1,000 feet) without any signal degradation.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-00-00-05
Mounting Hardware Option	No stud
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%.
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%.
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
