330901-00-90-05-02-00 | Bently Nevada 3300 NSv Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.2x1x69cm
Weight:
0.05kg
Country of Origin: :
USA
Description:

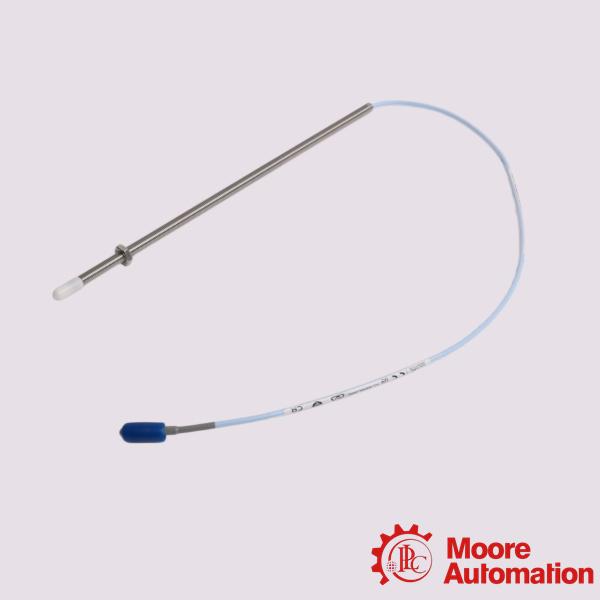

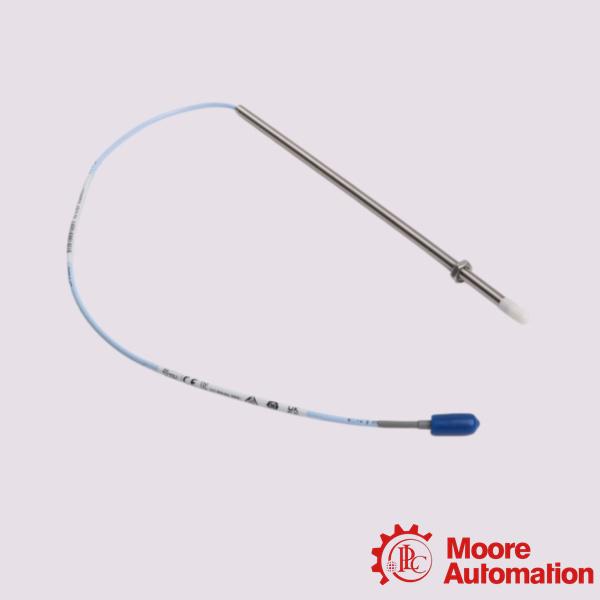

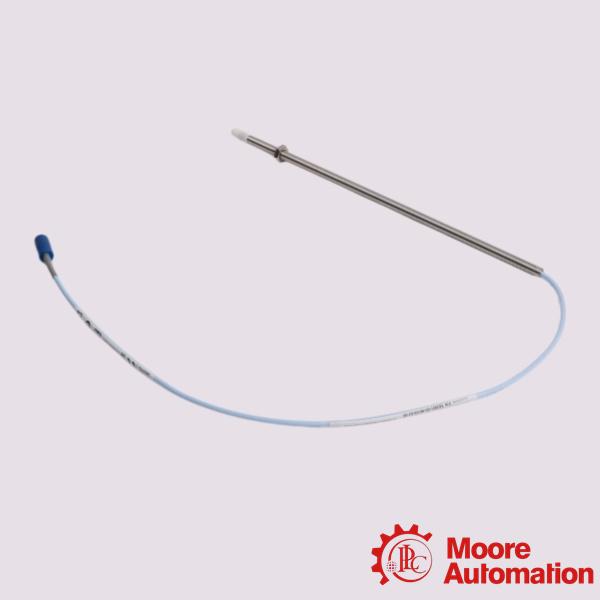

Bently Nevada 330901-00-90-05-02-00 3300 NSv Proximity Probes

Inquiry now

Mfr. Part Number:	330901-00-90-05-02-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330901-00-90-05-02-00 3300 NSv Proximity Probes

Full Description:	The 330901-00-90-05-02-00 3300 NSv Proximity Probe is a M8 x 1 thread, without armor probe for vibration and position measurements in small shaft and tight installation machinery applications.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330901-00-90-05-02-00 probe and extension cable are mechanically and electrically compatible with previous 3300 RAM proximity probes and extension cables, allowing direct interchangeability. Compared with the 3300 RAM probe, the NSv probe provides increased chemical resistance, making it suitable for many process compressor applications. It also offers improved side-view characteristics over the 3000-series 190 probe when installed at the same probe target distance.

The probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8X1 and M10X1
probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8-24 or M10X1 threads.

Application:

Centrifugal Air Compressors: Used for precise radial vibration and shaft position monitoring on heavy-duty industrial air compressors operating within tight internal clearances.
Industrial Refrigeration Plants: Integrated into large-scale cooling and chiller compressor packages for continuous thrust position supervision and machinery protection.
Process Gas Compressor Facilities: Applied on high-pressure hydrocarbon and gas processing machinery where compact clearances require a narrow side-view footprint for non-contact measurements.
Fluid-Filmed Bearing Systems: Installed near fluid-film bearings to monitor shaft movement on targets smaller than 51 mm where standard 5 mm or 8 mm sensors cannot fit.

Frequently Asked Questions (FAQ)

Q: Can 330901-00-90-05-02-00 maintain stable performance under high vibration conditions?
A: Yes, the probe is built to operate reliably in high-vibration industrial settings commonly found in turbine and compressor installations.

Q: Does 330901-00-90-05-02-00 require frequent calibration during operation?
A: No, the probe is engineered for long-term stability and typically does not require frequent recalibration under normal operating conditions.

Q: Can 330901-00-90-05-02-00 be integrated into existing vibration monitoring systems?
A: Yes, the probe is compatible with standard proximity measurement and condition monitoring architectures used in industrial asset protection systems.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 330901-00-90-05-02-00
Unthreaded Length Option (AA)	00 0in
Overall Case Length Option (BB)	90 9in
Total Length Option (CC)	05 0.5 meter (20 in)
Connector and Cable-Type Option (DD)	02 Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option (EE)	00 Not required
Power Requires	-17.5 Vdc to -26 Vdc
Supply Sensitivity	Less than 2 mV
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft)
Linear Range	1.5 mm (60 mils)
Recommended Gap Setting	1.0 mm (40 mils)
Frequency Response	0 to 10 kHz
Operating Temperature	-52°C to +177°C (-62°F to +351°F)
Storage Temperature	-52°C to +177°C (-62°F to +351°F)
