Product Description:

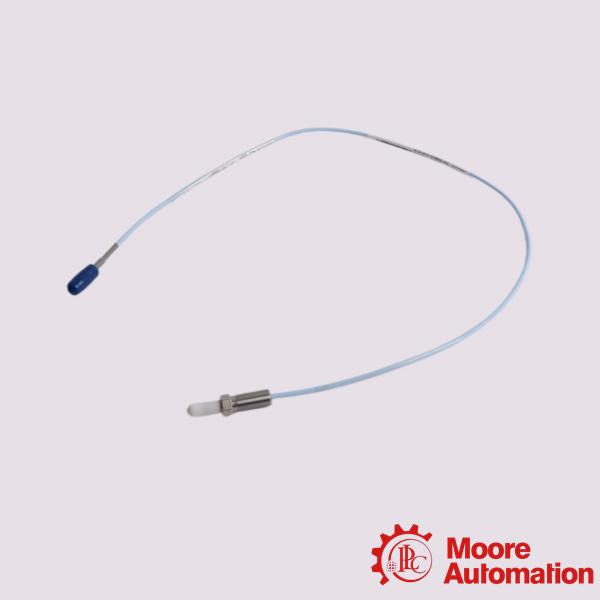

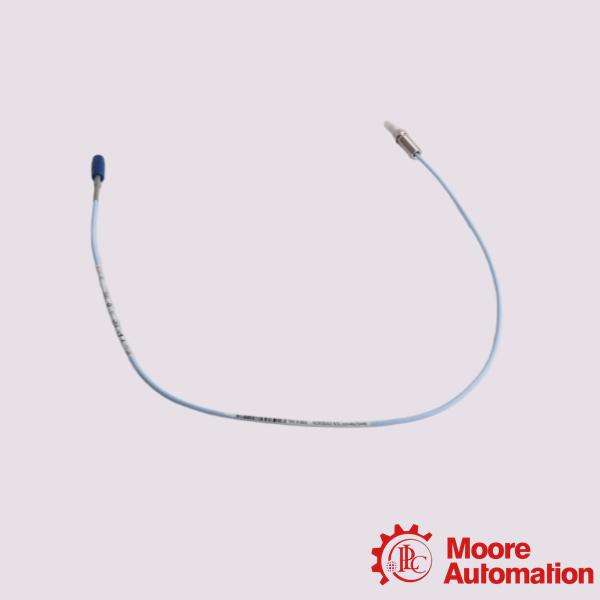

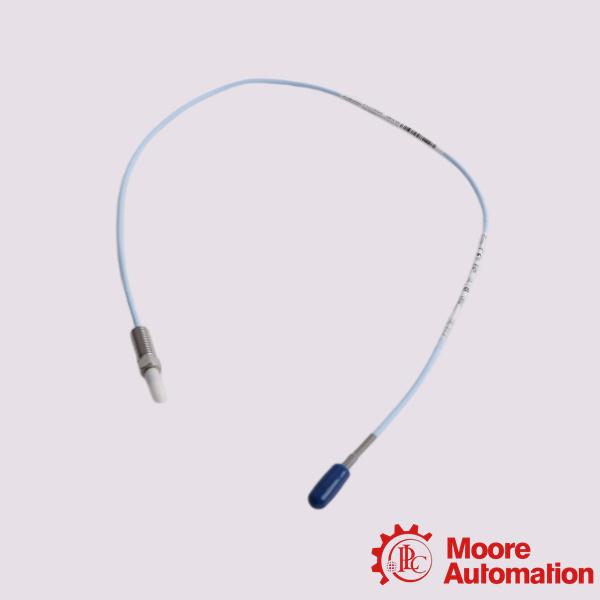

The 330906-02-12-05-02-05 is a 3300 XL NSv Reverse Mount Proximity Probe designed for use with the 3300 XL NSv Proximity Transducer System. It is configured with a 0.5 m (20 in) total system length and a miniature coaxial ClickLoc connector. The probe utilizes a reverse-mount 3/8-24 UNF threaded configuration and is intended for installation in tight clearance machinery locations where conventional probe mounting is not practical.

This probe is part of the NSv proximity measurement system and is intended for non-contact measurement of shaft radial vibration and position in small- to medium-diameter rotating machinery. It is compatible with NSv extension cables and Proximitor Sensor modules within the 3300 XL NSv series. The assembly supports FluidLoc cable options and armored cable configurations depending on ordering selection, and is suitable for use in industrial machinery monitoring applications requiring compact installation geometry.

Application:

Centrifugal Air Compressors: Used for precise radial vibration and shaft position monitoring on heavy-duty industrial air compressors operating within tight internal clearances.
Industrial Refrigeration Plants: Integrated into large-scale cooling and chiller compressor packages for continuous thrust position supervision and machinery protection.
Process Gas Compressor Facilities: Applied on high-pressure hydrocarbon and gas processing machinery where compact clearances require a narrow side-view footprint for non-contact measurements.
Fluid-Filmed Bearing Systems: Installed near fluid-film bearings to monitor shaft movement on targets smaller than 51 mm where standard 5 mm or 8 mm sensors cannot fit.

Frequently Asked Questions (FAQ)

Q: Can 330906-02-12-05-02-05 probe be disconnected and reconnected during maintenance?
A: Yes, the system uses a locking coaxial connector that allows repeated disconnection and reconnection without special tools, provided the connector is kept clean and properly aligned.

Q: Is 330906-02-12-05-02-05 cable assembly resistant to fluid exposure in industrial environments?
A: The cable system includes a FluidLoc-style construction designed to reduce fluid ingress along the cable length, improving suitability for wet or oil-prone installations.

Q: Is special alignment required during connector mating?
A: The connector system is keyed and designed to ensure correct alignment during mating, minimizing the risk of improper connection.
