in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
33x9x9cmWeight:
1.45kgCountry of Origin: :
USADescription:

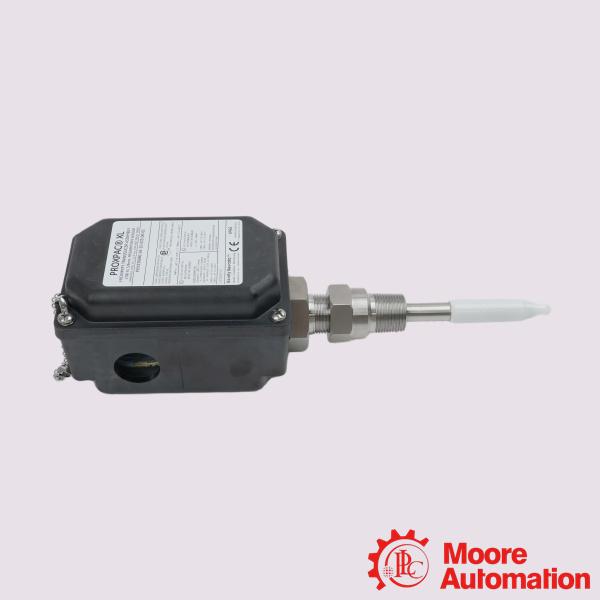

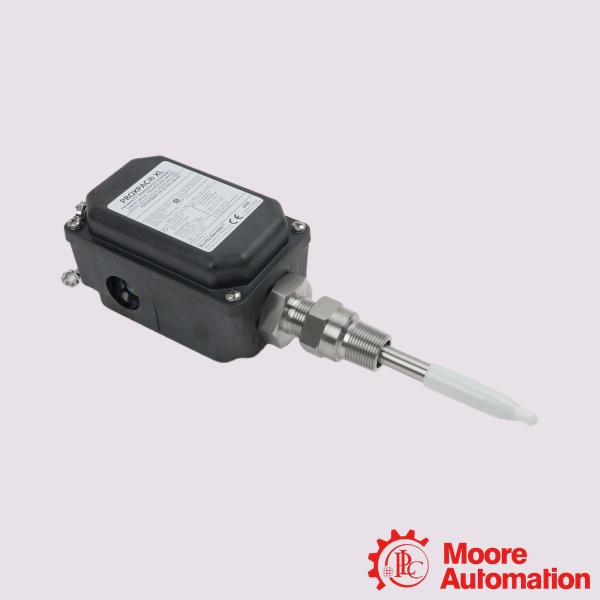

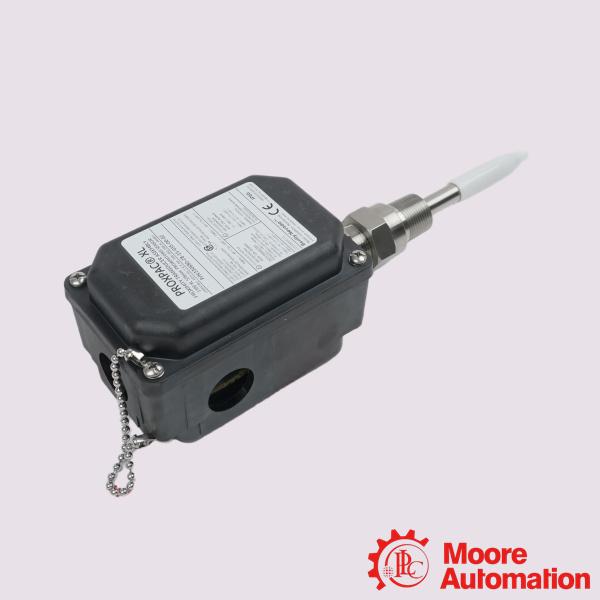

Bently Nevada 330880-16-15-060-01-02 PROXPAC XL Proximity Transducer
| Mfr. Part Number: |
330880-16-15-060-01-02 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330880-16-15-060-01-02 is part of the PROXPAC XL series, an integrated proximity transducer assembly used for condition monitoring and machinery protection in heavy industrial sectors. The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor. This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.
Application:
Oil & Gas: Used in refineries, offshore production platforms, and natural gas pipelines to monitor high-speed centrifugal compressors and gas turbines.
Power Generation: Essential for monitoring steam and gas turbines, thrust bearing wear, and large electric motors in coal-fired and combined-cycle plants.
Chemical and Petrochemical: Real-time condition monitoring of chemical pumps, reactor drive systems, and other critical rotating assets.
Heavy Manufacturing & Mining: Monitoring axial position in heavy-duty rolling mills and large industrial motors, where the system's IP66 rating protects it from dust and high humidity.
Frequently Asked Questions (FAQ)
Q:Is this housing rugged enough for harsh environments?
A:Yes. The PROXPAC XL body is molded from high-performance Polyphenylene Sulfide (PPS) embedded with glass and conductive fibers. This makes the outer assembly highly resistant to impact, chemical corrosion, and environmental ingress, with an engineering rating of Type 4X / IP66.
Q:How far away can the field monitor be placed?
A:You can run a 3-conductor shielded triad cable up to a maximum distance of 305 meters (1,000 feet) from the internal sensor terminals directly to your continuous monitoring rack.
Q:What target material is this system calibrated for out of the box?
A:The sensor is calibrated by default to AISI 4140 steel targets. If your rotating machine shaft or target area is composed of a different alloy, the output scale factor will shift, requiring custom factory calibration or monitoring system adjustment.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330880-16-15-060-01-02 |
|
Probe and Approvals Option |
3300 XL 8 mm probe without approvals |
|
Standoff Adapter Option (B Dimension) |
1.5 in (38 mm) |
|
Probe Penetration Option (C Dimension) |
6.0 in |
|
Fittings Option |
One 3/4-14 NPT fitting, two plugs |
|
Output resistance |
50 Ω |
|
Recommended Gap Setting |
1.27 mm (50 mils) |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Proxpac Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
