in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
33x9x9cmWeight:
1.45kgCountry of Origin: :
USADescription:

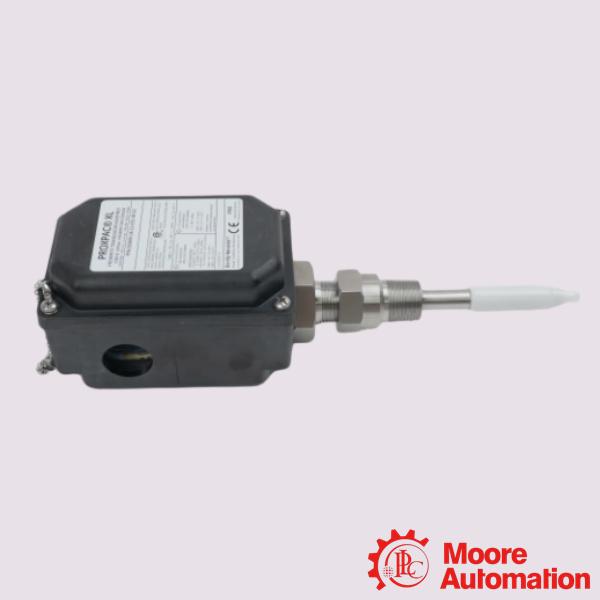

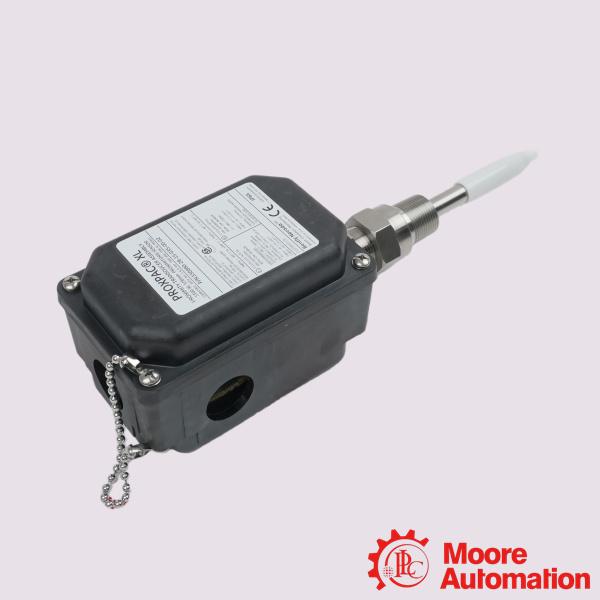

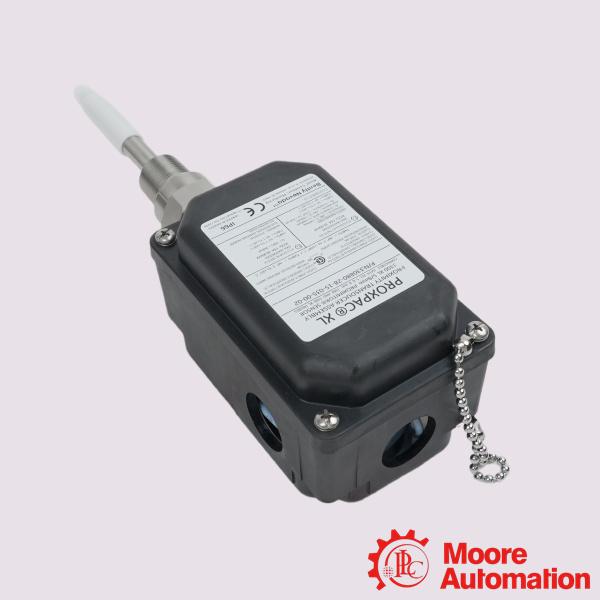

Bently Nevada 330880-16-15-065-01-02 PROXPAC XL Proximity Transducer
| Mfr. Part Number: |
330880-16-15-065-01-02 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330880-16-15-065-01-02 is a PROXPAC XL Proximity Transducer Assembly, an integrated system that combines a 3300 XL 8mm proximity probe and a Proximitor sensor into a single, compact unit.The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor. This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.
Application:
Critical Rotating Equipment: Designed for continuous monitoring of steam and gas turbines, centrifugal and process gas compressors, and large pumps.
Fluid-Film Bearing Machines: Used specifically for vibration and position measurements on machines utilizing fluid-film bearings.
Motors and Generators: Rigorous monitoring of large industrial motors and steam turbine generators.
Radial Vibration and Position: Measuring the dynamic motion and static position of rotor shafts within bearing clearances.
Frequently Asked Questions (FAQ)
Q:What is PROXPAC XL? How does it differ from the traditional 3300 system?
A:PROXPAC XL is a fully self-contained proximity probe system. The 3300 XL Proximitor sensor is integrated within its housing cover, eliminating the need for extension cables connecting the probe and Proximitor, and also eliminating the need for a separate Proximitor housing. Field wiring can be directly connected to the monitoring system.
Q:Does this model require an external Proximitor?
A:No. 330880-16-15-065-01-02 is a self-contained system; the Proximitor sensor is integrated into the housing cover.
Q:What is the housing material and protection rating?
A:The housing is made of polyphenylene sulfide (PPS) molded thermoplastic material, containing glass fiber and conductive fibers to enhance strength and effectively dissipate static charge. The protection rating is Type 4X / IP66, capable of withstanding 7 J (normal temperature) and 4 J (extreme temperature) impacts.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330880-16-15-065-01-02 |
|
Probe and Approvals Option |
3300 XL 8 mm probe without approvals |
|
Standoff Adapter Option (B Dimension) |
1.5 in (38 mm) |
|
Probe Penetration Option (C Dimension) |
6.5 in |
|
Fittings Option |
One 3/4-14 NPT fitting, two plugs |
|
Mounting Thread Option |
3/4-14 NPT (Required if ordering Standoff Adapter Option.) |
|
Output resistance |
50 Ω |
|
Recommended Gap Setting |
1.27 mm (50 mils) |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Proxpac Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
