in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
118x1.5x1.2cmWeight:
0.16kgCountry of Origin: :
USADescription:

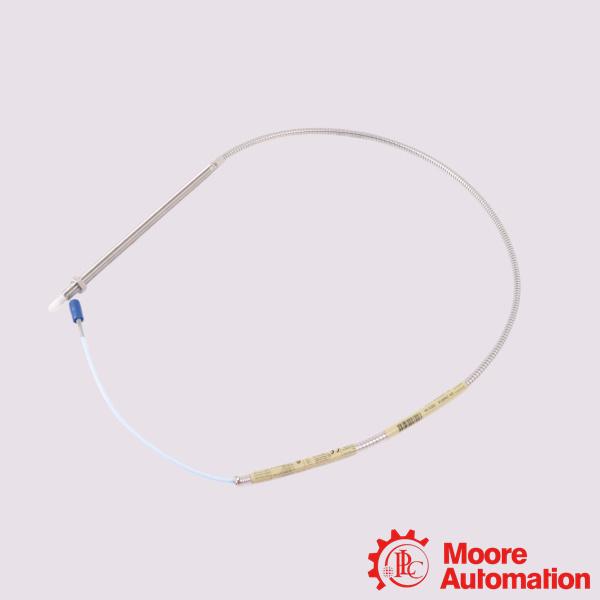

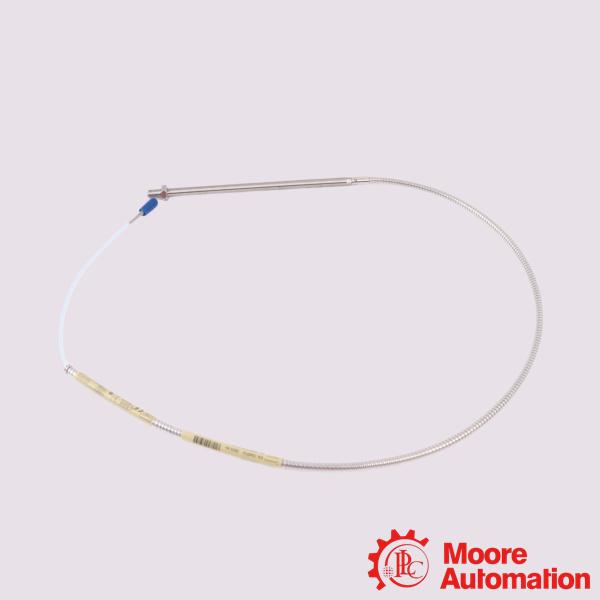

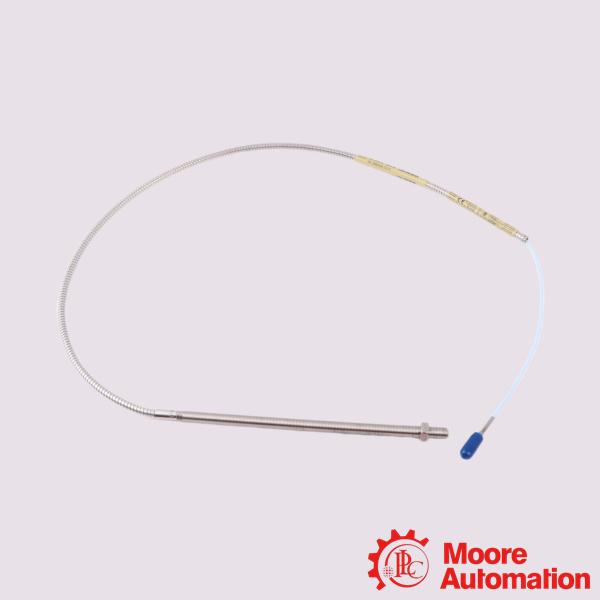

Bently Nevada 330909-00-90-05-02-05 3300 NSv Proximity Probes
| Mfr. Part Number: |
330909-00-90-05-02-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330909-00-90-05-02-05 is a 3300 XL NSv Proximity Probe for rotating machinery. Its primary industrial applications center on industrial compressors and small-shaft machinery with confined installation spaces.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Centrifugal Air Compressors: Monitored for high-speed radial shaft vibration and internal clearances.
Refrigeration Compressors: Deployed in chilling units where tight packaging limits sensor footprint.
Process Gas Compressors: Leveraged in oil, gas, and chemical refining processes due to enhanced chemical resistance.
Small-Shaft Rotating Machinery: Specialized for fluid-filmed bearing machines with rotor shaft diameters under 51 mm (2 inches).
Frequently Asked Questions (FAQ)
Q:What is the total electrical length rule?
A:The combined length of this probe (0.5 metres) and your extension cable must match the total system length of your Proximitor Sensor (typically calibrated for 5.0 metres or 7.0 metres total length) [0.5-10].
Q:What is the linear measurement range?
A:The probe has a linear range of 1.5 mm (60 mils) [0.5-23]. It delivers an Average Scale Factor (ASF) of 7.87 V/mm (200 mV/mil), matching standard industry eddy-current outputs.
Q:What are the main applications for this sensor?
A:The probe primarily measures radial vibration, axial (thrust) position, tachometer speed, and phase reference (Keyphasor) signals [0.5-23]. It is optimized for situations with small target sizes or tight installation constraint.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330909-00-90-05-02-05 |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
9.0 in |
|
Total Length Option |
0.5 meter (20 in) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Agency Approval Option |
Multiple Approvals |
|
