330854-040-25-05 | Bently Nevada 3300 XL 25 mm Extension Cable

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
21x21x2cm
Weight:
0.14kg
Country of Origin: :
USA
Description:

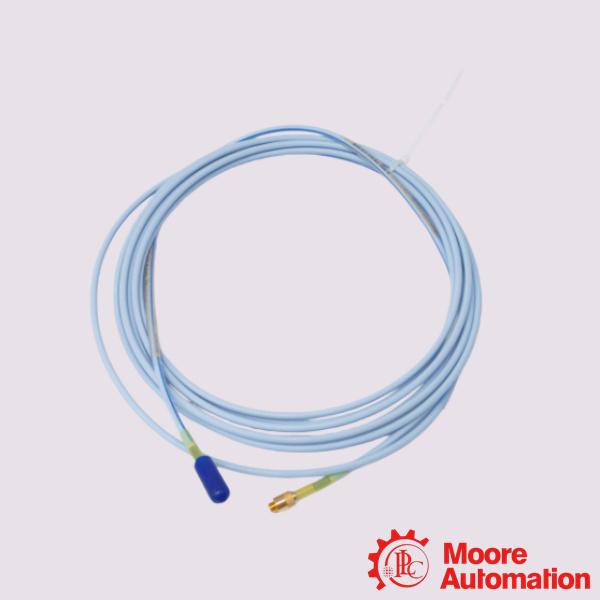

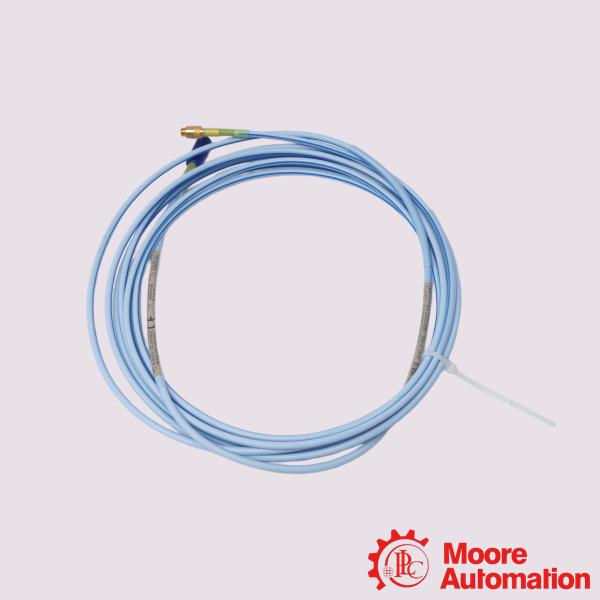

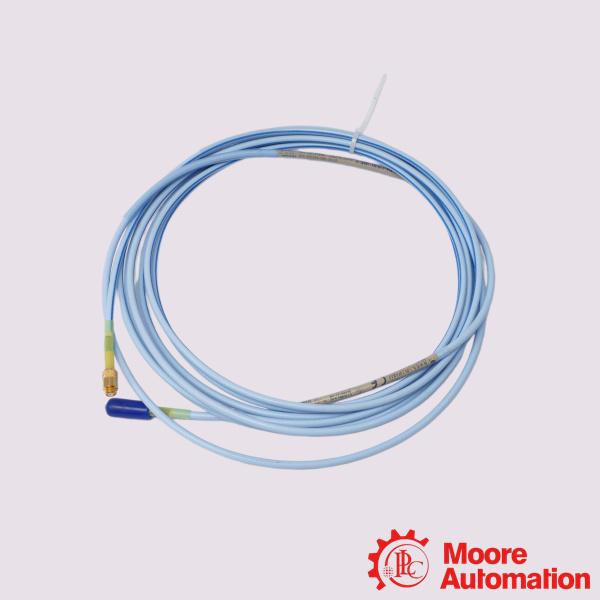

Bently Nevada 330854-040-25-05 3300 XL 25 mm Extension Cable

Inquiry now

Mfr. Part Number:	330854-040-25-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330854-040-25-05 3300 XL 25 mm Extension Cable

Full Description:	The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330854-040-25-05 is an OEM-specification proximity extension cable engineered for the 3300 XL Series continuous vibration monitoring system. Designed to bridge the gap between eddy-current proximity probes and their paired oscillator/driver modules, this cable delivers low-loss signal transmission in demanding rotating machinery environments — including steam turbines, gas compressors, and centrifugal pumps.

Application:

Steam Turbine Generators: Measures Differential Expansion (DE) caused by unequal thermal growth rates between the massive turbine rotor and the machine stator casing during startup and shutdown cycles
Gas Compressor Trains: Monitors radial vibration and axial position on high-vibration, high-temperature fluid-film bearing machines
Centrifugal Pumps: Tracks critical thrust and axial displacement inside wet, chemically aggressive, or demanding process environments.
Power Stations & Chemical Plants: Deployed inside hazardous areas requiring robust safety compliance, meeting ATEX, IECEx, and CSA explosive environment standards.

Frequently Asked Questions (FAQ)

Q:Can I use this cable with 8 mm or 11 mm probes?
A:No. This cable is engineered strictly for the impedance profile of the 3300 XL 25 mm system. Intermixing components with smaller 8 mm or 11 mm systems will disrupt impedance matching, resulting in calibration errors and invalid measurement data.
Q:Where is this cable typically deployed?
A:It is heavily used in large rotating machinery diagnostics, specifically on steam turbine shafts. Because steam turbines undergo immense thermal growth relative to their casings, this cable helps track differential expansion safely through high-vibration and extreme-heat environments

Q:What is the difference between the "-24" and "-25" cable options?
A:While both configurations share the same underlying high-temperature capabilities, the "-25" option features heavy-duty protective armor wrapped over the triaxial line, whereas the "-24" suffix signifies an unarmored high-temperature cable.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330854-040-25-05
Cable Length Option	4.0 metres (13.1 feet)
Armor and Cable Option	Armored High Temperature FluidLoc cable
Agency Approval Option	Multiple Approvals
Output resistance	50 W
Extension cable capacitance	69.9 pF/m (21.3 pF/ft) typical
Average Scale Factor (ASF)	0.787 V/mm (20 mV/mil) nominal
Operating and Storage Temperature	-35°C to +200°C (-31°F to +392°F)
