330103-00-03-90-12-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
21x21x2cm
Weight:
0.18kg
Country of Origin: :
USA
Description:

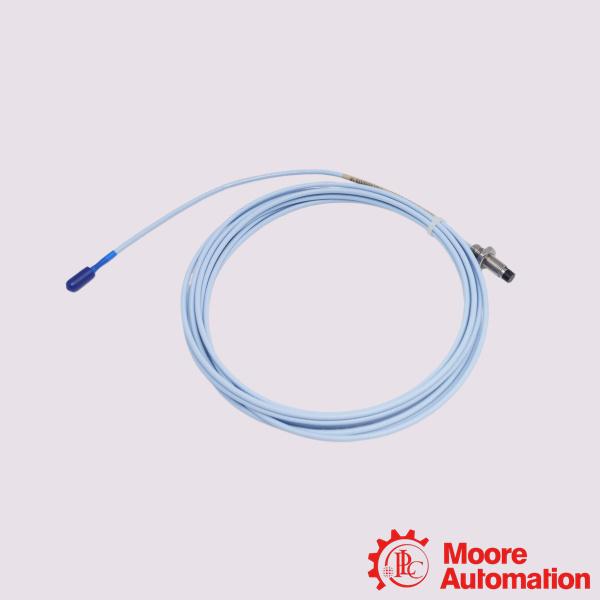

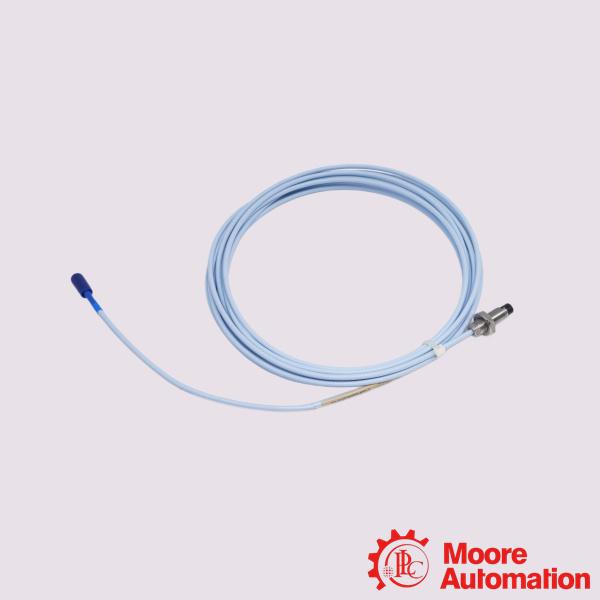

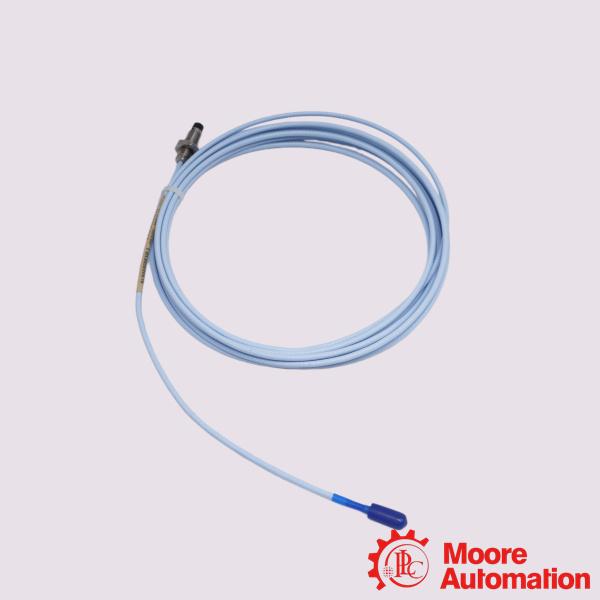

Bently Nevada 330103-00-03-90-12-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330103-00-03-90-12-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330103-00-03-90-12-05 3300 XL 8 mm Proximity Probes

Full Description:	The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330103-00-03-90-12-05 3300 XL 8 mm Proximity Probes delivers advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Application:

Power Generation: Monitoring thermal, nuclear, and hydroelectric turbine-generator sets.
Oil & Gas: Safeguarding upstream drilling platforms, midstream pipelines, and downstream refining units.
Chemical & Petrochemical: Tracking high-stress process pumps and heavy-duty gas compressors.
Water & Wastewater: Managing massive intake, distribution, and treatment water pumps.

Frequently Asked Questions (FAQ)

Q:What type of cable configuration does a 9.0-meter probe require?
A:To ensure proper calibration and system performance, the total electrical length of the probe plus the extension cable must match the Proximitor Sensor specifications. Because this specific probe option has a 9.0-meter total length, it must be connected directly to a 9-meter calibrated Proximitor Sensor without an extension cable.
Q:Can I mix this probe with non-XL 3300 series parts?
A:Yes. The 3300 XL components are designed by Bently Nevada to be backward compatible and interchangeable with standard, non-XL 3300 series 5 mm and 8 mm transducer components.

Q:Does this system require individual calibration?
A:No. The 3300 XL 8 mm Proximity Transducer System features full interchangeability. You can replace the probe or the sensor unit without bench calibration or matching specific component pairs.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330103-00-03-90-12-05
Unthreaded Length Option	0 mm
Overall Case Length Option	30 mm
Total Length Option	9.0 meters (29.5 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Probe Tip Material	Polyphenylene sulfide (PPS).
Probe Case Material	AISI 303 or 304 stainless steel (SST).
Standard Probe	-52°C to +177°C (-62°F to +350°F)
