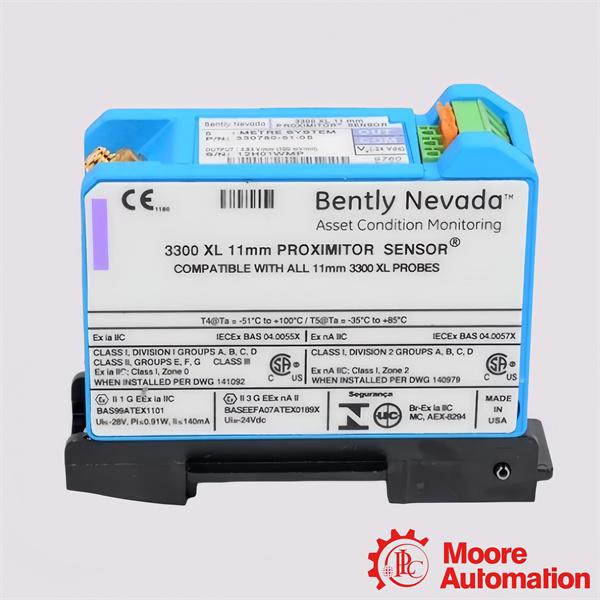

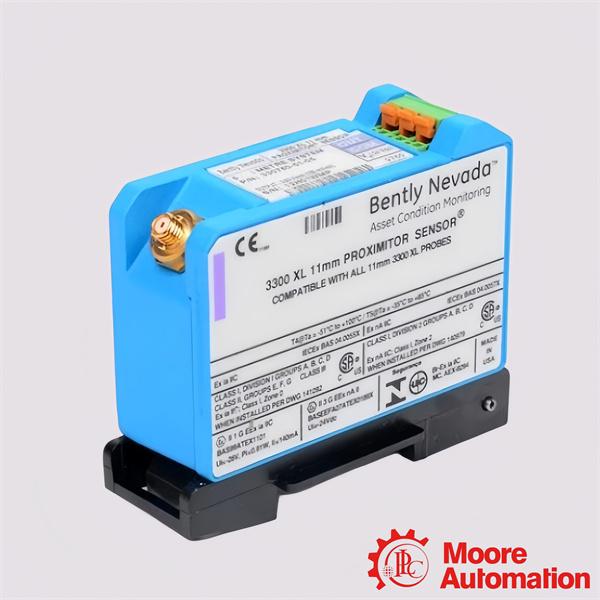

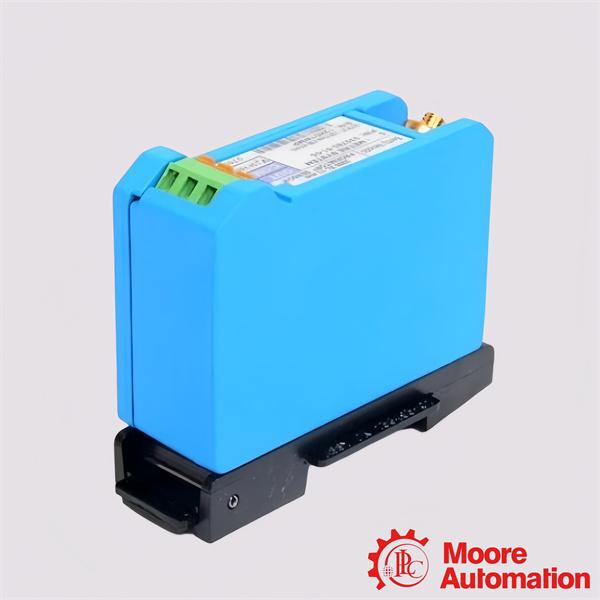

330780-51-05 | Bently Nevada 3300 xL 11 mm Proximitor Sensor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.6x3.4x7cm
Weight:
0.22kg
Country of Origin: :
USA
Description:
Bently Nevada 330780-51-05 3300 xL 11 mm Proximitor Sensor

Inquiry now

Mfr. Part Number:	330780-51-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330780-51-05 3300 xL 11 mm Proximitor Sensor

Full Description:	The Bently Nevada 330780-51-05 3300 xL 11 mm Proximitor Sensor has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330780-51-05 3300 xL 11 mm Proximitor Sensor has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.

Application:

Axial Thrust Position Monitoring: Measures the longitudinal float or displacement of a machine's shaft. It prevents catastrophic rotor-to-stator contact in large turbines and compressors.
Radial Vibration and Displacement: Tracks dynamic shaft movement within fluid-film bearings to detect unbalance, misalignment, or bearing wear.
Keyphasor and Speed Measurements: Registers once-per-turn voltage pulses from a shaft keyway to calculate precise rotational speed and phase angles for diagnostic mapping.
Industrial Turbines: Deployed heavily on large-scale steam and gas turbines utilized in power generation plants to track thermal growth and thrust position.

Frequently Asked Questions (FAQ)

Q:What is the linear measurement range of this probe?
A:It has a linear range of 4.0 mm (160 mils). This begins at a baseline gap of roughly 0.5 mm (20 mils) from the target surface, providing extended reach over standard 8 mm probes.
Q:What is its Scale Factor?
A:The standard Incremental Scale Factor (ISF) is 3.94 V/mm (100 mV/mil) when monitoring a standard Bently Nevada AISI 4140 steel target.

Q:Can I mix this 11 mm probe with an 8 mm Proximitor Sensor?
A:No. You must connect this probe to a dedicated 3300 XL 11 mm Proximitor Sensor. Mixing probe diameters corrupts calibration and alters the voltage scale factor.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 330780-51-05
Total Length and Mounting Option	5.0 meter (16.4 feet) system length, DIN mount
Agency Approval Option	Multiple approvals
Output resistance	50 Ω
Extension cable capacitance	69.9 pF/m (21.3 pF/ft) typical
Frequency Response	0 to 8 kHz: +0, -3 dB typical
