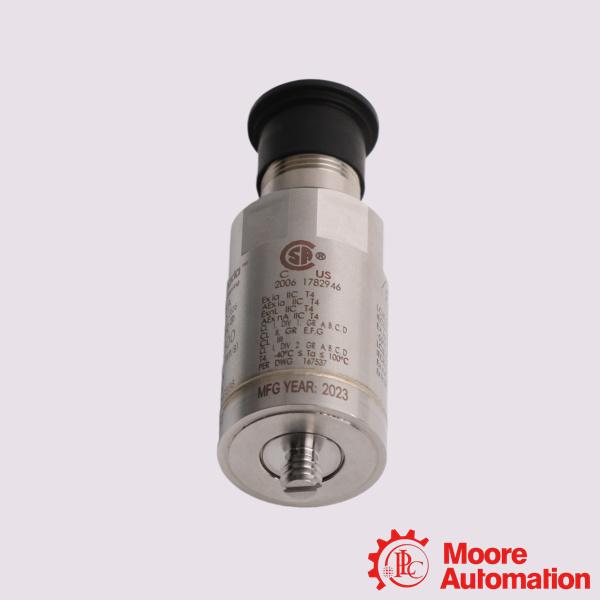

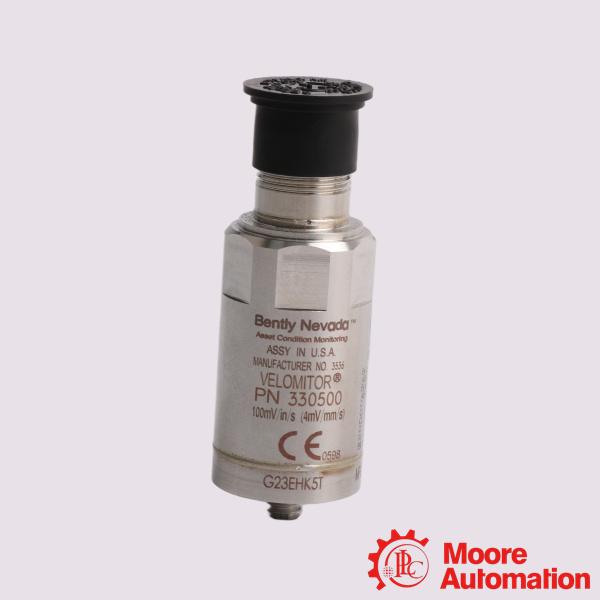

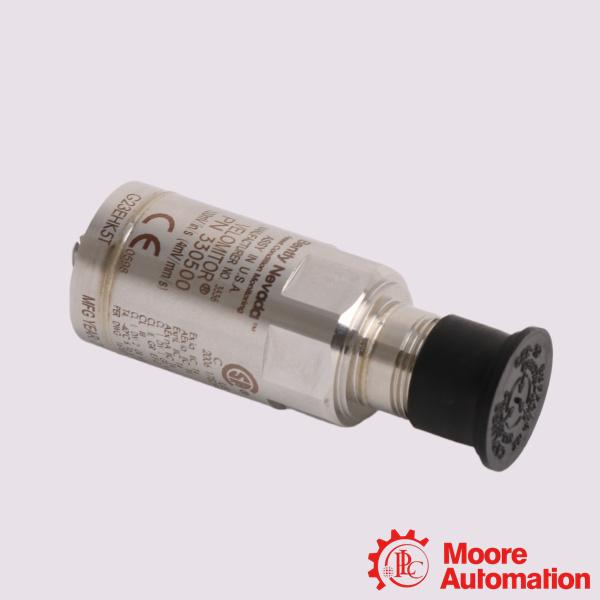

330500-04-04 | Bently Nevada Velomitor Piezo-velocity Sensor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
7.2x2.4x2.4cm
Weight:
0.14 kg
Country of Origin: :
USA
Description:
Bently Nevada 330500-04-04 Velomitor Piezo-velocity Sensor

Inquiry now

Mfr. Part Number:	330500-04-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330500-04-04 Velomitor Piezo-velocity Sensor

Full Description:	The Bently Nevada 330500-04-04 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

Bently Nevada 330500-04-04 Velomitor Piezo-velocity Sensor is designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. It is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation

Application:

Oil & Gas: Used extensively on extraction platforms, refineries, and pipeline facilities where explosive gas atmospheres necessitate its multiple ATEX/CSA hazardous zone approvals.
Power Generation: Deployed in conventional thermal, nuclear, and hydroelectric facilities to safeguard high-capital energy assets.
Chemical & Petrochemical Processing: Monitored on assets handling highly corrosive or volatile chemical compounds where plant safety is a top priority.
Water & Wastewater Management: Integrated into high-capacity pumping stations and municipal treatment plants.

Frequently Asked Questions (FAQ)

Q:What is the maximum torque specification when mounting the sensor?
A:The sensor should be torqued to 2.7 to 4.5 N-m (24 to 40 in-lbf). Over-torquing can damage the internal piezoelectric crystal or strain the integrated electronics casing.
Q:Can the sensor be mounted at an angle?
A:The solid-state design has no moving mechanical parts, meaning it can be mounted vertically, horizontally, or at any orientation angle. However, the sensitive axis must be kept precisely perpendicular to the surface to avoid cross-axis measurement errors.

Q:What is the maximum allowed cable distance?
A:The maximum supported cable run is 305 metres (1,000 feet) using Bently Nevada approved cabling without suffering any signal degradation.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 330500-04-04
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	Typical values range from -14% to +7.5%.
Velocity Range	1270 mm/s (50 in/s) peak
Transverse Sensitivity	Less than 5% of sensitivity
Amplitude Linearity	±2% to 152 mm/s (6 in/s) peak.
