330701-00-15-10-02-05 | Bently Nevada 3300 XL 11 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
2x1.8x117cm
Weight:
0.1kg
Country of Origin: :
USA
Description:

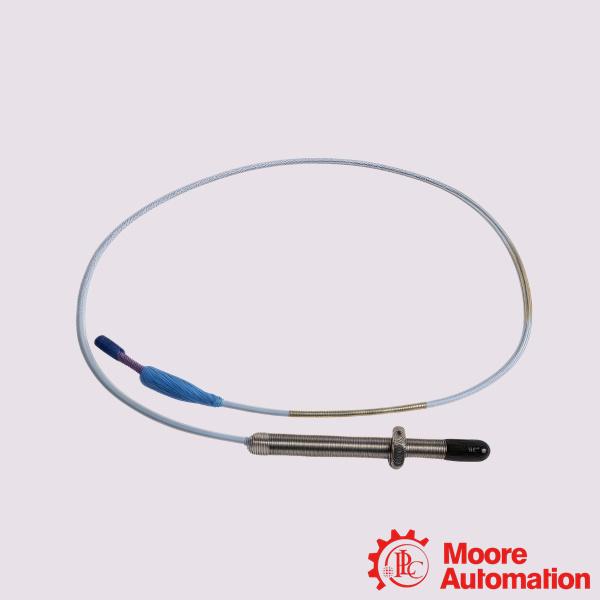

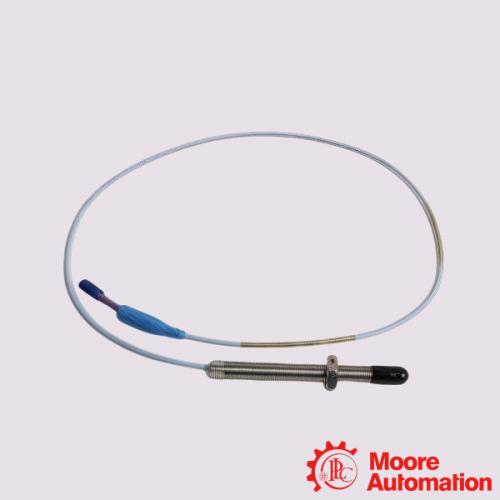

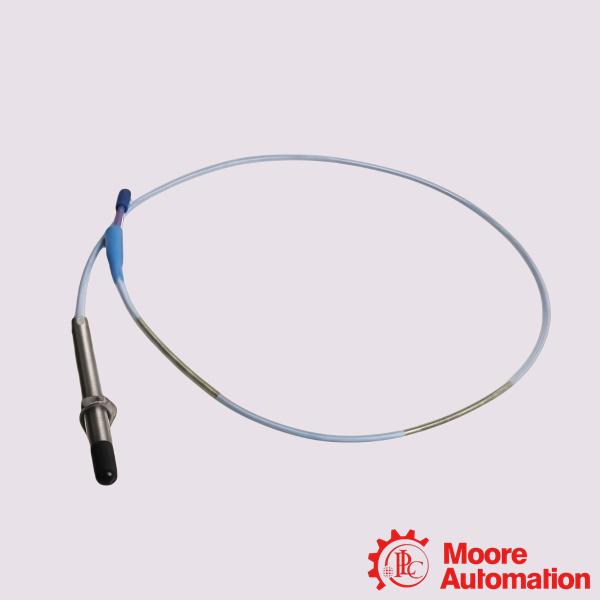

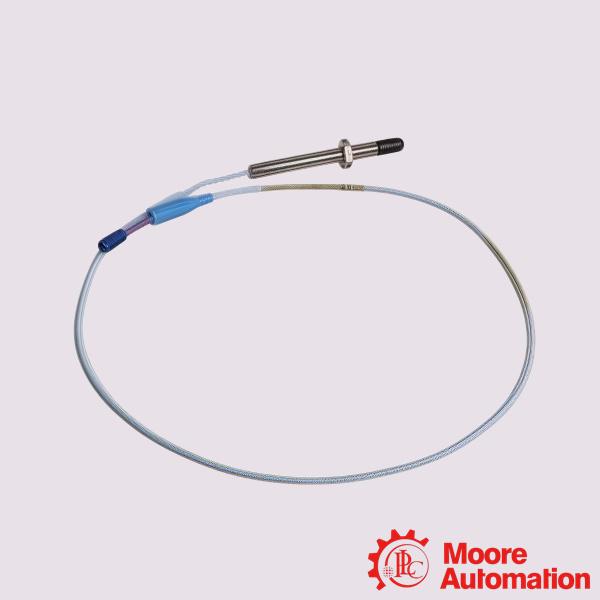

Bently Nevada 330701-00-15-10-02-05 3300 XL 11 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330701-00-15-10-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330701-00-15-10-02-05 3300 XL 11 mm Proximity Probes

Full Description:	The Bently Nevada 330701-00-15-10-02-05 has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330701-00-15-10-02-05 has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following.

Application:

Axial (Thrust) Position Measurements: Monitors the axial displacement of a rotating shaft to prevent catastrophic internal contact within a machine.
Ramp Differential Expansion Measurements: Measures the relative growth difference between a steam turbine rotor and its casing during startup and shutdown thermal cycles.
Tachometer and Zero Speed Measurements: Captures exact rotational speed data, ensuring that large machinery does not suffer damage from overspeed or reverse rotation.
Reciprocating Compressor Rod Position:Tracks rod drop or dynamic rod position to identify premature rider band wear and avoid piston-to-cylinder impact.

Frequently Asked Questions (FAQ)

Q:What is the linear measurement range of this probe?
A:It has a linear range of 4.0 mm (160 mils). This begins at a baseline gap of roughly 0.5 mm (20 mils) from the target surface, providing extended reach over standard 8 mm probes.
Q:What is its Scale Factor?
A:The standard Incremental Scale Factor (ISF) is 3.94 V/mm (100 mV/mil) when monitoring a standard Bently Nevada AISI 4140 steel target.

Q:Can I mix this 11 mm probe with an 8 mm Proximitor Sensor?
A:No. You must connect this probe to a dedicated 3300 XL 11 mm Proximitor Sensor. Mixing probe diameters corrupts calibration and alters the voltage scale factor.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 330701-00-15-10-02-05
Unthreaded Length Option	0.0 in
Overall Case Length Option	1.5 in
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Multiple Approvals
