in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.8x2.3x124cmWeight:
0.2kgCountry of Origin: :
USADescription:

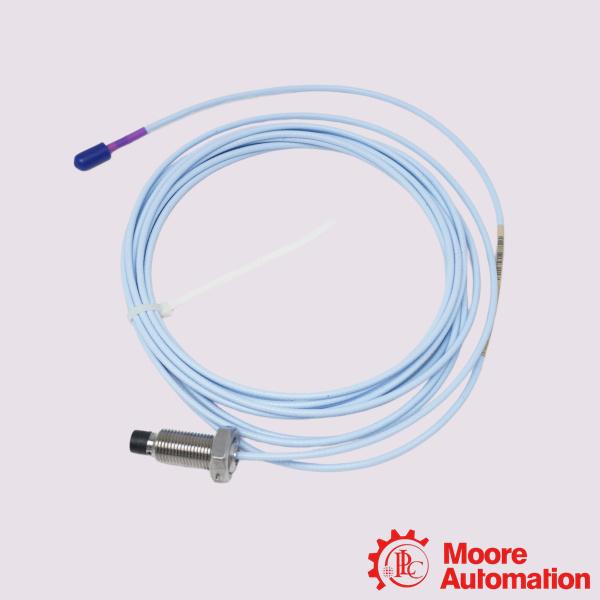

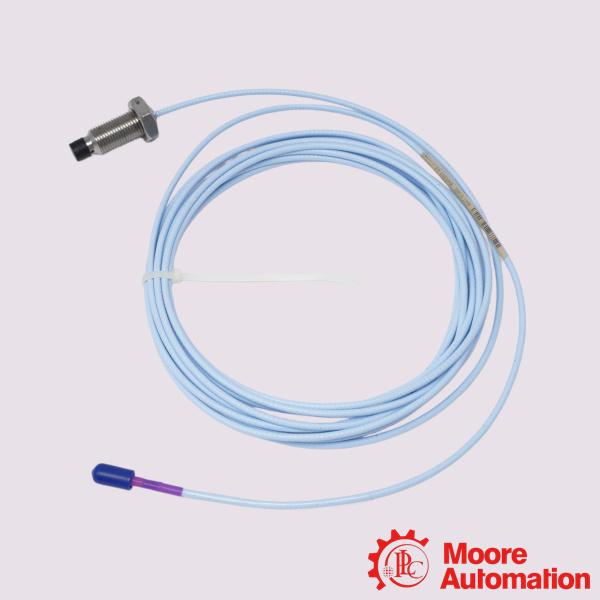

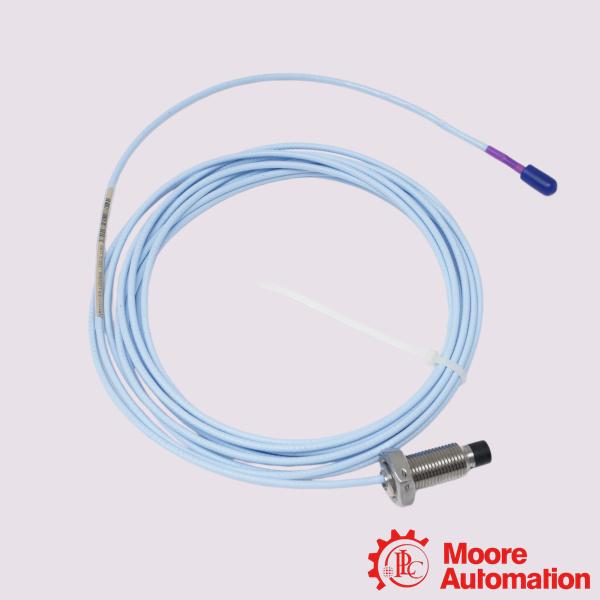

Bently Nevada 330709-000-040-10-02-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330709-000-040-10-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330709-000-040-10-02-00 is an eddy-current proximity probe belonging to the 3300 XL 11 mm Proximity Transducer System. It is for machinery condition monitoring, specifically tracking fluid-film bearing clearance, radial vibration, and axial shaft position in high-speed rotating equipment.The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Gearboxes: Monitors input and output shaft movement under high load conditions.
Heavy-Duty Pumps & Generators: Tracks shaft position and axial drift in massive fluid-film bearing equipment.
Centrifugal and Axial Compressors: Used to continuously monitor thrust position on high-speed process compressors where thrust failures lead to catastrophic machine destruction.
Steam and Gas Turbines: Specifically utilized for differential expansion tracking on steam turbines due to extreme temperature deltas and longer structural expansion spans.
Frequently Asked Questions (FAQ)
Q:Does this probe ship with stainless steel armor?
A:No. The "330709" prefix specifically designates a non-armored thread configuration. It features a standard fluoroethylene propylene (FEP) insulated outer cable jacket.
Q:Which monitoring systems is this probe compatible with?
A:The probe is designed for use with the 3300 XL 11 mm Proximity Transducer System and is fully compatible with Bently Nevada 3500 Series machinery protection systems. To maintain calibration accuracy, the probe, cable, and Proximitor sensor should be matched within the same transducer system.
Q:Why choose the M16 × 1.5 thread version?
A:The M16 × 1.5 mounting thread is commonly used on equipment originally designed for metric probes. It simplifies installation on compatible machine housings and helps avoid the need for adapters or thread modifications during replacement.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330709-000-040-10-02-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
40 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Agency Approval Option |
Not required |
|
