in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
30x25x3cmWeight:
0.6kgCountry of Origin: :
USADescription:

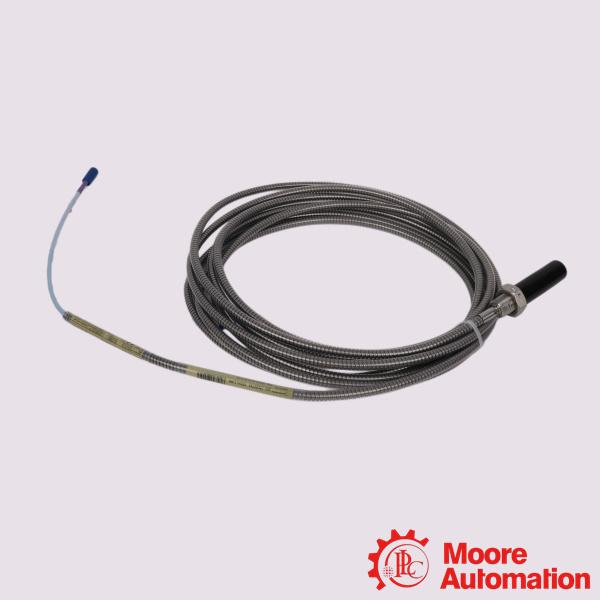

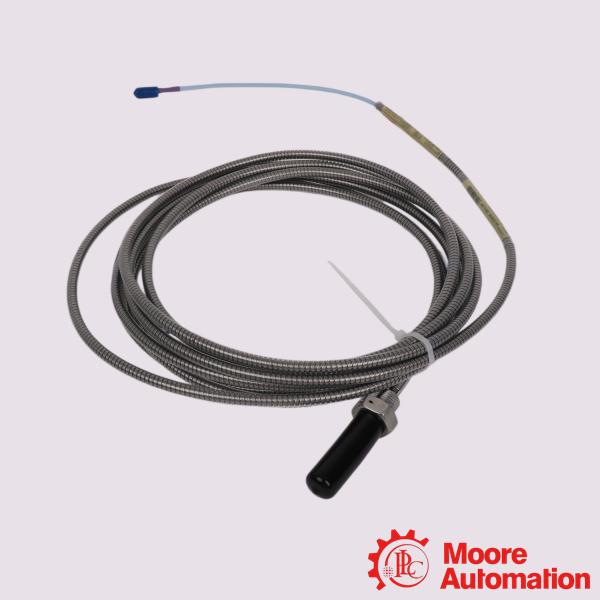

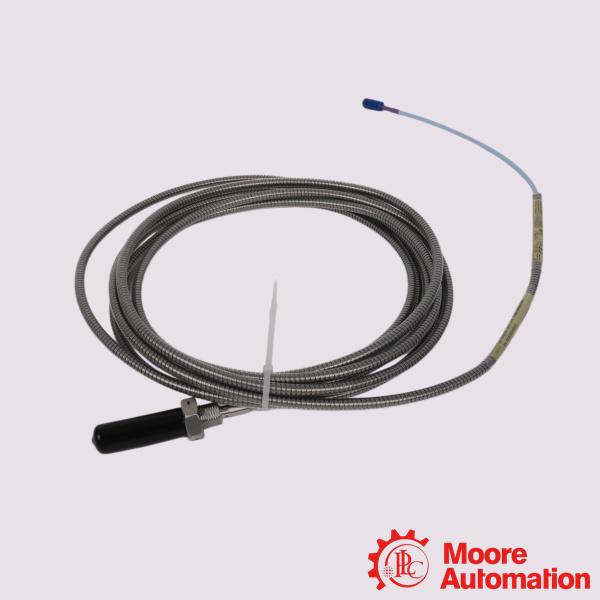

Bently Nevada 330708-000-20-50-02-CN 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330708-000-20-50-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330708-000-20-50-02-CN is an industrial 3300 XL 11 mm Proximity Probe equipped with a 5/8-18 UNF thread and protective cable armor. It is primarily engineered for non-contacting vibration and displacement measurements on heavy fluid-film bearing machinery. The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Mining & Heavy Processing: Monitors massive fans, gearboxes, and large grinding mill drives operating under high structural loads.
Axial (Thrust) Position Measurements: Monitoring the horizontal movement of a machine's shaft relative to its casing. This prevents catastrophic internal structural contact during operation.
Generators: Tracks radial vibration and thermal growth of the rotor assembly during heavy load shifts.
Iron & Steel Mills: Deployed on massive air blast furnace blowers and rolling mill gearboxes.
Frequently Asked Questions (FAQ)
Q:Can I use a different system length cable with this probe?
A:No. Because this specific part number dictates a 5.0-meter total system length (Option -50), it must only be used in a total physical loop length matching 5.0 meters. If using an extension cable, the probe length plus the extension cable length must equal exactly 5.0 meters to maintain calibration accuracy.
Q:What component must this probe connect to?
A:This probe cannot be wired directly into a standard control system panel. It must connect via its armored cable to a dedicated 3300 XL 11 mm Proximitor Sensor (such as the 330780 series). The Proximitor converts the high-frequency RF signal into a steady, readable voltage.
Q:What are the torque guidelines for installing a 5/8-18 thread probe case?
A:Recommended torque: Do not exceed 33.9 N·m (25 ft·lb) during bracket mounting.Over-tightening can deform the probe case, damaging the internal coil assembly and altering the nominal gap sensor calibration.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330708-000-20-50-02-CN |
|
Unthreaded Length Option |
0 in |
|
Overall Case Length Option |
2.0 in |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
