in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.2x2x122cmWeight:
0.2kgCountry of Origin: :
USADescription:

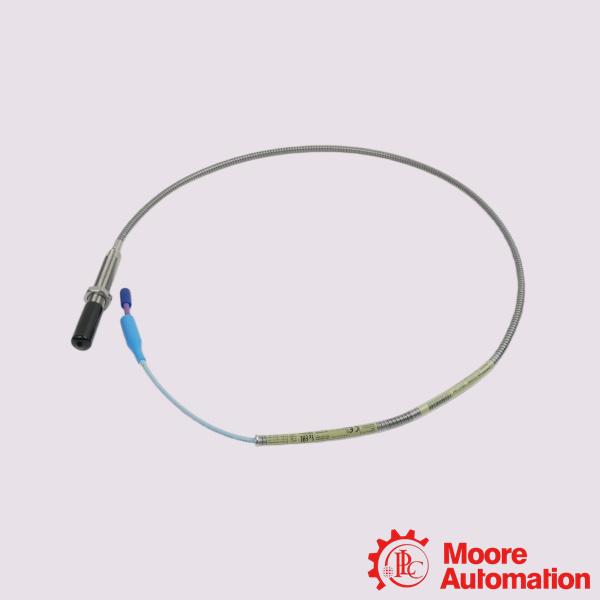

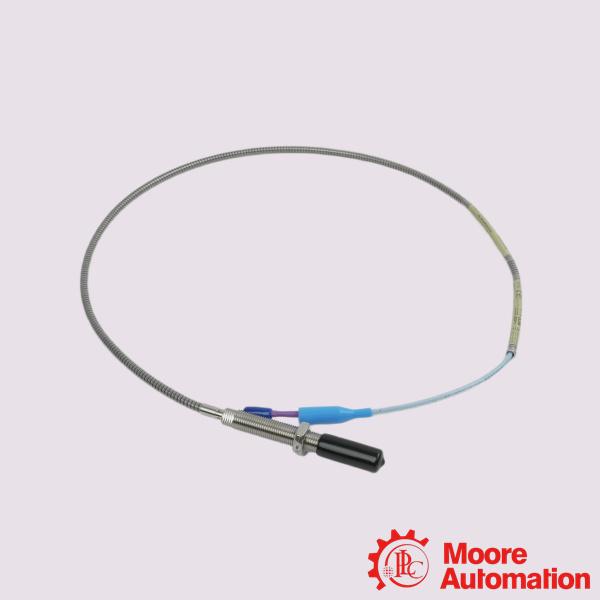

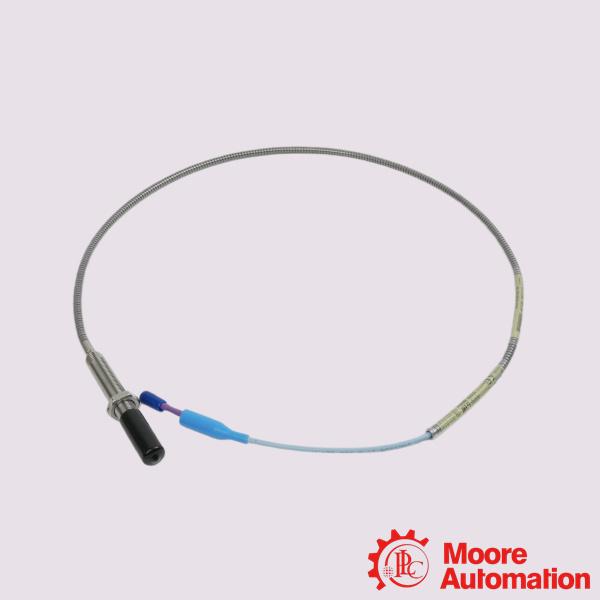

Bently Nevada 330704-000-100-50-11-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330704-000-100-50-11-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-100-50-11-00 is an 11 mm Proximity Probe belonging to the industry-standard 3300 XL 11 mm Proximity Transducer System. It is for non-contacting vibration and axial displacement measurements on fluid-film bearing machines.The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Axial (Thrust) Position: Measuring the physical thrust drift of massive rotor shafts to prevent destructive rotor-to-stator contact.
Ramp Differential Expansion: Monitoring how much faster a turbine rotor expands relative to the outer casing during thermal startup cycles.
Radial Shaft Vibration: Tracking eccentric shaft orbital paths inside fluid-film bearing journals at high speeds.
Large Centrifugal Compressors: Continuously tracking axial movement under intense gas pressures to avoid thrust bearing breakdowns.
Frequently Asked Questions (FAQ)
Q:Does the probe require custom field calibration?
A:No. The probe is factory-matched to function seamlessly with any standard 3300 XL Proximitor Sensor and extension cable that totals a 5-meter system length.
Q:How tightly should the ClickLoc coaxial connector be joined?
A:The electrical connector should only be tightened finger-tight. Never use pliers or wrenches on the miniature coaxial connections, as the maximum rated connector torque is only 0.565 N·m.
Q:What is the proper installation torque for this probe case?
A:The recommended installation torque for the M14 x 1.5 thread body is 21.1 N·m (187 in·lb). The maximum allowable torque is 63.3 N·m (560 in·lb). Exceeding this can permanently strip or deform the stainless steel housing.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-100-50-11-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
100 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option |
Not required |
|
