in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.2x2x115cmWeight:
0.2kgCountry of Origin: :
USADescription:

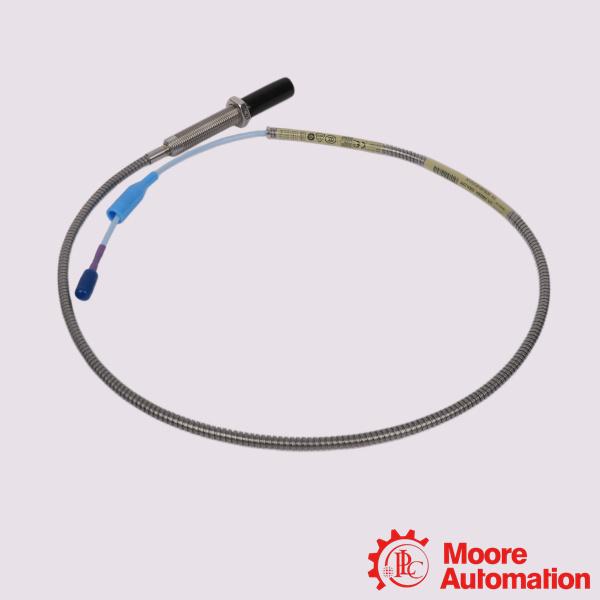

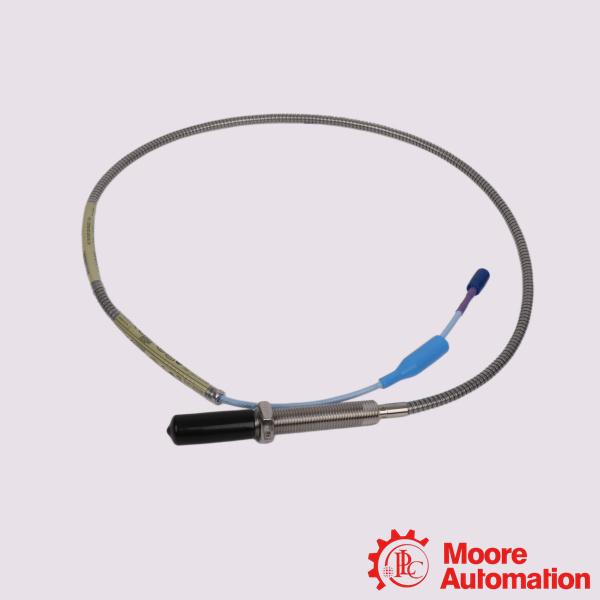

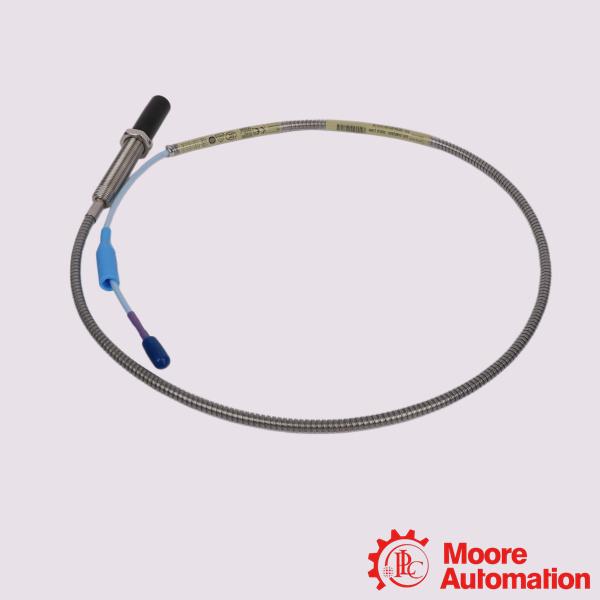

Bently Nevada 330704-000-100-10-11-CN 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330704-000-100-10-11-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-100-10-11-CN is an eddy-current proximity probe from the 3300 XL 11 mm series for machinery condition monitoring, fault prevention, and predictive maintenance.The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Oil & Gas (Upstream & Downstream): Deployed on offshore platforms, refineries, and transport pipelines to monitor high-pressure pumps and gas compressors.
Power Generation: Used on critical power plant turbomachinery like steam turbines, gas turbines, hydro turbines, and large-scale generators.
Petrochemical & Chemical Processing: Safeguards essential process machinery operating continuously within harsh, explosive atmospheres requiring explosive-proof compliance.
Heavy Industry & Utilities: Installed in water pumps, fans, and heavy gearboxes within steel mills, water treatment plants, and marine infrastructure.
Frequently Asked Questions (FAQ)
Q:Can I use this probe directly with a 3500 Monitoring System?
A:No. The proximity probe cannot be wired directly into a monitoring rack. It must be connected via an extension cable to a matching 3300 XL 11 mm Proximitor Sensor. The Proximitor converts the physical gap into a dynamic AC/DC voltage or 4-20mA signal for the Bently Nevada 3500 Platform.
Q:What is the standard measurement range of an 11 mm probe?
A:Bently Nevada 11 mm probes are deployed when a wider linear measurement range is needed than what the standard 8 mm probes offer. The 11 mm transducer system yields a total linear range of 4.0 mm (160 mils), compared to the 2.0 mm range of 8 mm systems.
Q:Can I connect this 1-meter probe to a 5-meter or 9-meter system?
A:Yes, but you must use the correct matching extension cable. For a 5-meter system, use a 4.0-meter extension cable. For a 9-meter system, use an 8.0-meter extension cable. The total length of the probe cable plus the extension cable must exactly match the tuned length required by your specific Proximitor Sensor.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-100-10-11-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
100 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
