in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.2x1.2x119cmWeight:
0.05kgCountry of Origin: :
USADescription:

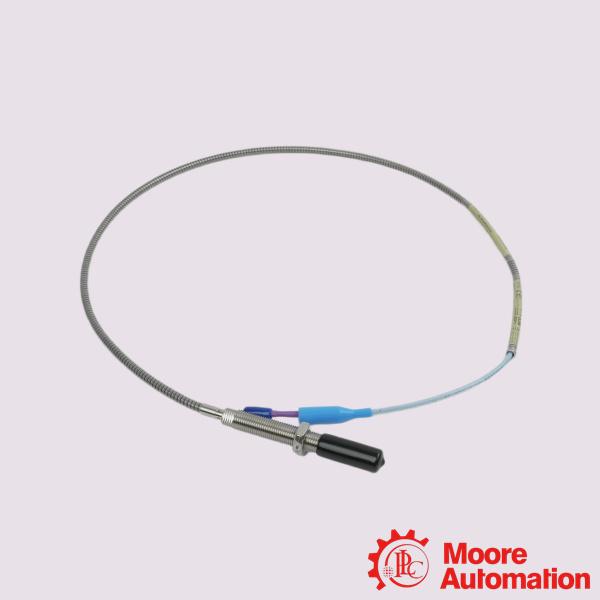

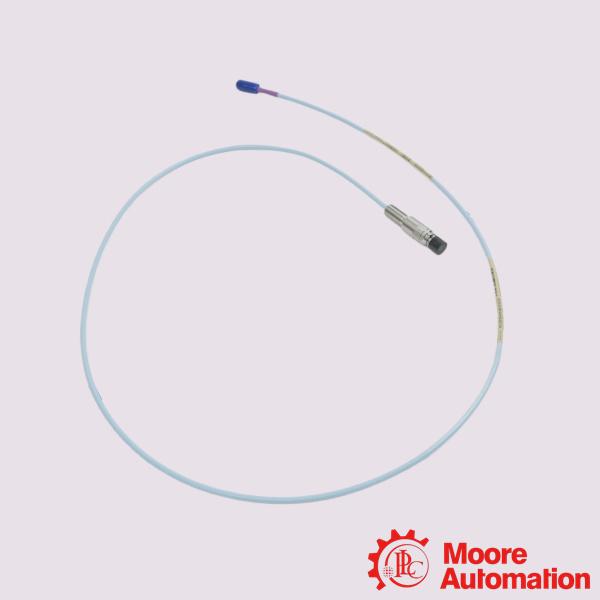

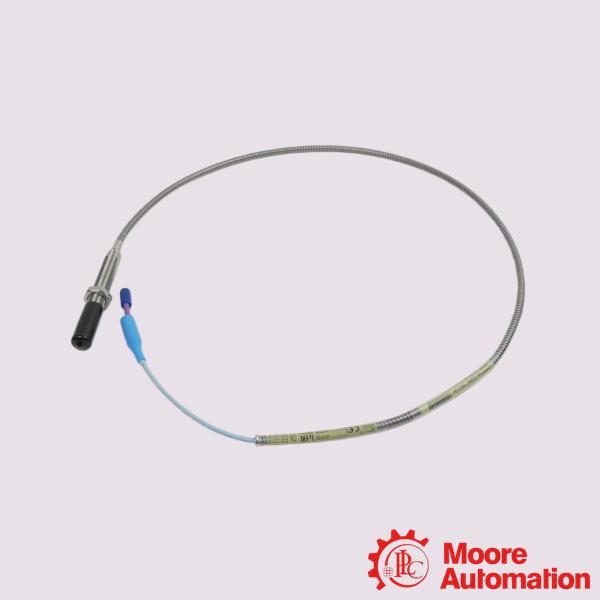

Bently Nevada 330704-000-100-50-11-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330706-005-046-10-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330706-005-046-10-02-CN is a 3300 XL 11 mm Reverse Mount Proximity Probe designed for critical machinery condition monitoring. This eddy-current sensor precisely measures non-contacting vibration, displacement, and shaft positioning in heavy-duty industrial rotating hardware.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Steam and Gas Turbines: Monitors high-speed rotor shaft radial vibration, thermal expansion, and axial displacement to prevent catastrophic blade or casing contact.
Hydroelectric Turbines: Measures lower frequency runner vibrations, alignment, and guide bearing shaft deflections.
Generators and Exciters: Tracks rotor dynamics under severe electromagnetic loads.
Turboexpanders: Measures precise axial thrust positioning under intense pressure and extreme thermal fluctuations.
Frequently Asked Questions (FAQ)
Q:What is the advantage of a "Reverse Mount" probe?
A:Standard probes are threaded from the outside of the machine housing. Reverse mount probes are designed to be installed from the inside of a specialized probe housing or sleeve assembly. This prevents the probe body from rotating while twisting the external hardware, protecting the integrated cable from twisting or fraying.
Q:Can I use this 11 mm probe with a standard 8 mm Proximitor sensor?
A:No. The 11 mm probe has a vastly different electrical profile and sensing range compared to 8 mm components. It requires a matched 3300 XL 11 mm Proximitor Sensor (such as the 330780 series) to deliver the proper scale factor.
Q:How do I choose the right extension cable length?
A:The combined length of your probe and extension cable must match the total system length expected by your Proximitor sensor. Because this probe has a 1.0-meter integrated cable, you must use an 8.0-meter extension cable if you are connecting to a standard 9.0-meter Proximitor system.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330706-005-046-10-02-CN |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Connector Option |
Miniature ClickLoc coaxial connector |
|
