in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.2x2x115cmWeight:
0.2kgCountry of Origin: :
USADescription:

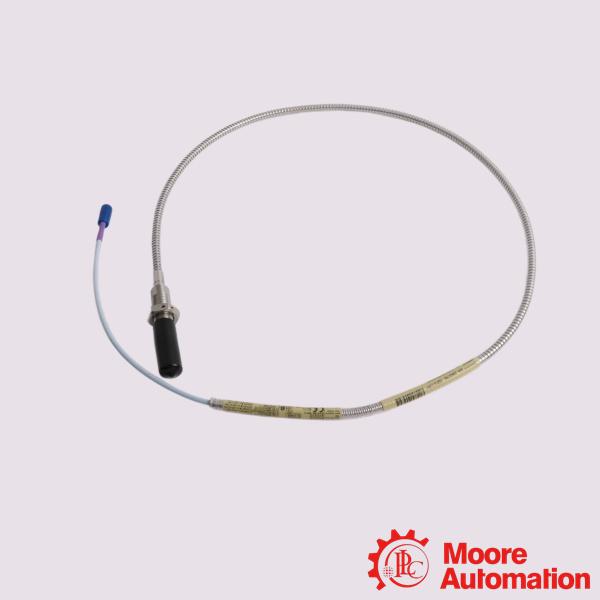

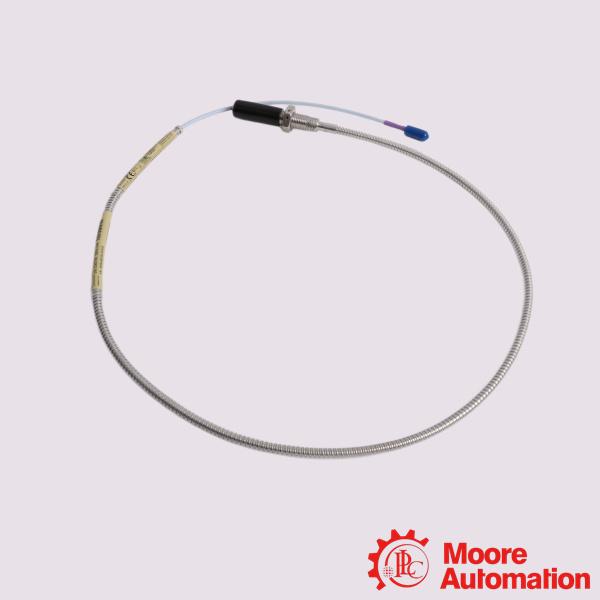

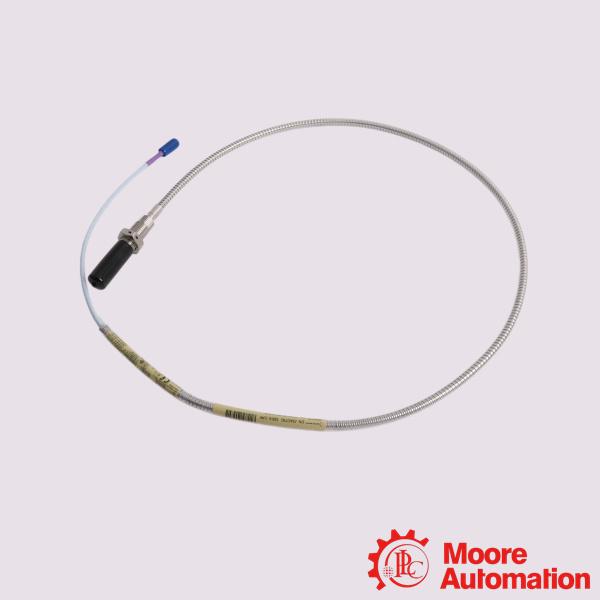

Bently Nevada 330704-000-080-50-02-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330704-000-080-50-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-080-50-02-00 is an industrial 3300 XL 11 mm Proximity Probe for measuring vibration and shaft displacement in critical rotating machinery.The 3300 XL 11 mm Proximitor Sensor replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Fluid-Film Bearing Monitoring: Tracks dynamic radial vibration and static oil-film clearances inside large sleeve/journal bearings.
Industrial Compressors: Used on large-scale centrifugal air compressors, axial flow process gas compressors, and industrial refrigeration units.
High-Power Pumps & Generators: Monitors shaft alignment and rotational stability in high-capacity water flood pumps, boiler feed pumps, and power plant generators.
Oil & Gas (Upstream/Downstream): Offshore platforms, refineries, and pipeline pumping stations.
Frequently Asked Questions (FAQ)
Q:What are the power requirements of the system?
A:The matched Proximitor Sensor requires a -17.5 Vdc to -26 Vdc power supply at a maximum consumption rate of 12 mA. Operating with power more positive than -23.5 Vdc will significantly reduce the linear tracking range of your sensor.
Q:Can I connect this 5.0-metre probe directly to a 5.0-metre Proximitor Sensor?
A:No. A 5.0-metre Proximitor Sensor expects a 1.0-metre probe paired with a 4.0-metre extension cable. Connecting a 5.0-metre probe directly into a 5.0-metre Proximitor without an extension cable will cause major calibration and voltage output errors, disabling accurate machinery protection.
Q:What Proximitor sensor is required for a 5.0-metre probe?
A:When paired with a matching 3300 XL 11 mm Proximitor Sensor, it delivers a nominal output sensitivity of 3.94 V/mm (100 mV/mil).Because this probe features a 50 option (5.0-metre total length), it must be paired with a 9.0-metre system Proximitor Sensor used alongside a separate 4.0-metre extension cable.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-080-50-02-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
80 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Not required |
|
