in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
115.5x2.5x2cmWeight:
0.16kgCountry of Origin: :
USADescription:

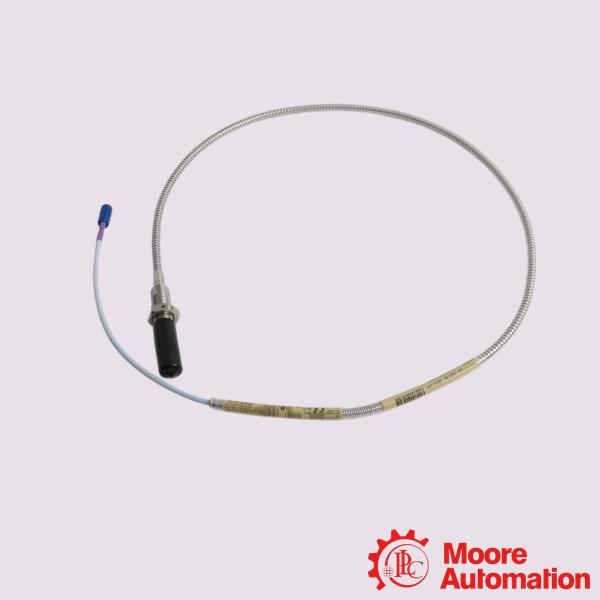

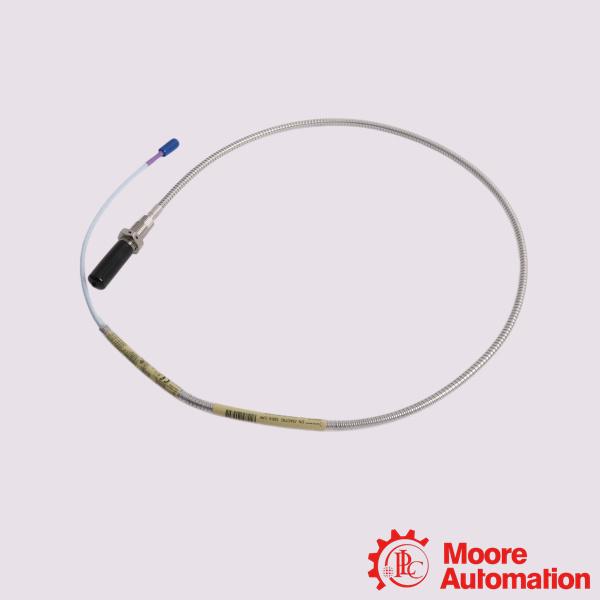

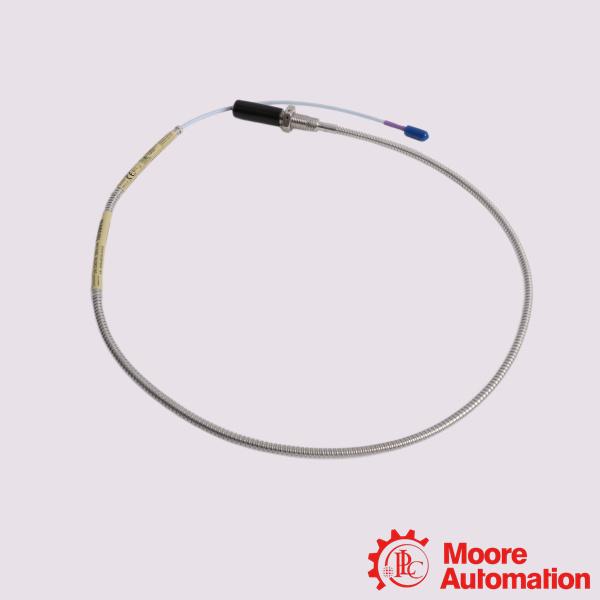

Bently Nevada 330704-000-080-50-12-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330704-000-080-50-12-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-080-50-12-00 is an industry-standard 3300 XL 11 mm Proximity Probe for critical machinery health monitoring and condition-based predictive maintenance. The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Power Generation: Used extensively on large steam and gas turbines, as well as generators, to safely monitor shaft position changes during high-temperature thermal expansion or load shifts.
Oil & Gas (Upstream & Downstream): Essential for heavy-duty centrifugal compressors, expanders, and multiphase pumps operating in harsh extraction or refining environments.
Petrochemical & Chemical Refining: Deployed on critical process machinery and high-speed mixers where hazardous materials require continuous asset health tracking
Water & Municipal Engineering: Installed on high-capacity water distribution pumps and wastewater treatment blowers.
Frequently Asked Questions (FAQ)
Q:What is the linear range of this 11 mm probe?
A:The 3300 XL 11 mm sensor system offers a standard linear range of 4.0 mm (160 mils). Its extended scale begins at a probe gap of approximately 0.5 mm (20 mils) and remains highly accurate up to 4.5 mm (180 mils). This makes it superior to 5 mm or 8 mm variations when tracking high-clearance or larger industrial machinery shafts.
Q:Does this probe require a power supply?
A:No, proximity probes are passive components. Power is instead delivered directly by the matching Bently Nevada Proximitor Sensor which operates on a negative DC voltage range between -17.5 Vdc and -26 Vdc.
Q:Is the probe tip submersible?
A:While the probe body can withstand highly humid conditions up to 100% condensing relative humidity, it is not rated for continuous submersion in aggressive chemical solutions. Highly acidic or alkaline liquids can corrode the tip's epoxy housing, risking internal core leakage.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-080-50-12-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
80 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option |
Not required |
|
