in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.2x2x119cmWeight:
0.16kgCountry of Origin: :
USADescription:

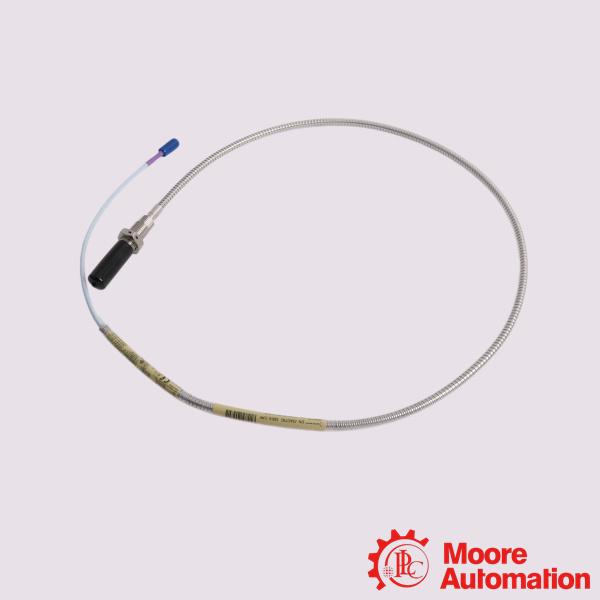

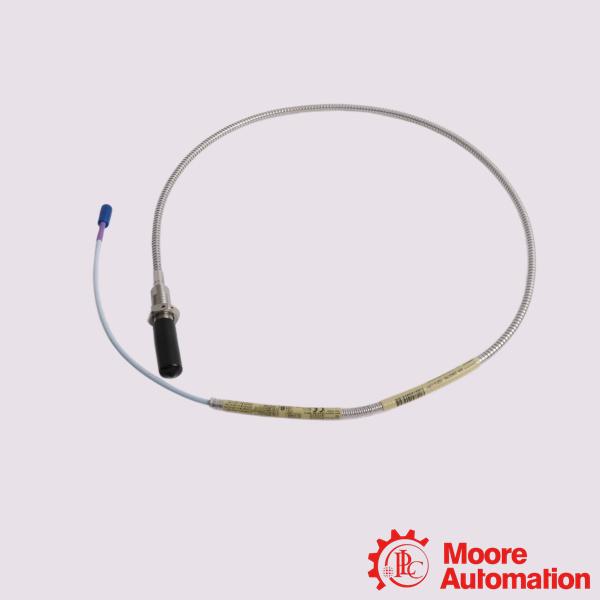

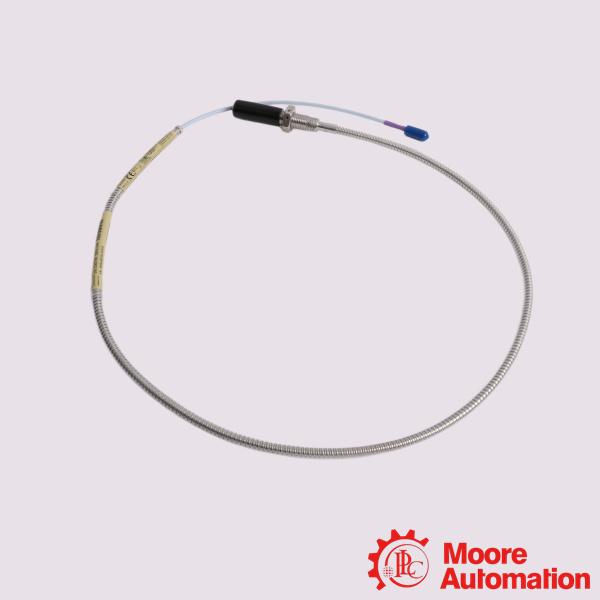

Bently Nevada 330704-000-080-10-02-CN 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330704-000-080-10-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-080-10-02-CN is an industrial-grade 3300 XL 11 mm Proximity Probe (Metric) for non-contacting machinery condition monitoring. It primarily targets heavy rotating equipment utilizing fluid-film bearings to monitor vibration and position.The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Steam and Gas Turbines: Tracks continuous shaft displacement, thermal growth, and critical speed clearances.
Generators & Exciters: Checks oil-film bearing health and rotor alignment.
Boiler Feed Pumps: Monitors heavy-duty critical water auxiliary pumps.
Pipeline Pumps: Monitoring multi-stage crude and high-pressure oil transport pumps.
Frequently Asked Questions (FAQ)
Q:Can this probe be used in harsh chemicals or food processing?
A:Yes. The probe tip is made from Polyphenylene sulfide (PPS). This material meets FDA standards for food processing and is chemically resistant, though high/low pH solutions can erode the tip over extended contact.
Q:What is the recommended installation torque?
A:The recommended mounting torque for the M14 thread is 21.1 N·m (187 in·lb). Do not exceed a absolute maximum torque of 63.3 N·m to avoid crushing the housing.
Q:What is the standard measurement sensitivity?
A:TWhen paired with a matching 3300 XL 11 mm Proximitor Sensor, it delivers a nominal output sensitivity of 3.94 V/mm (100 mV/mil).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-080-10-02-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
80 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
