in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
30x30x4cmWeight:
0.98kgCountry of Origin: :
USADescription:

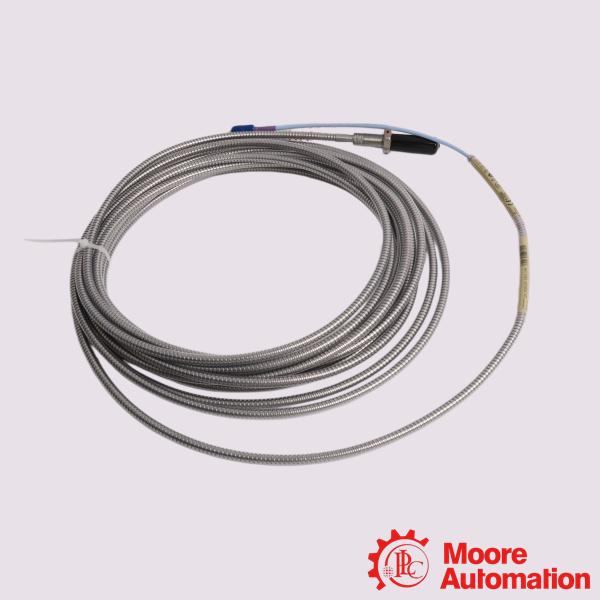

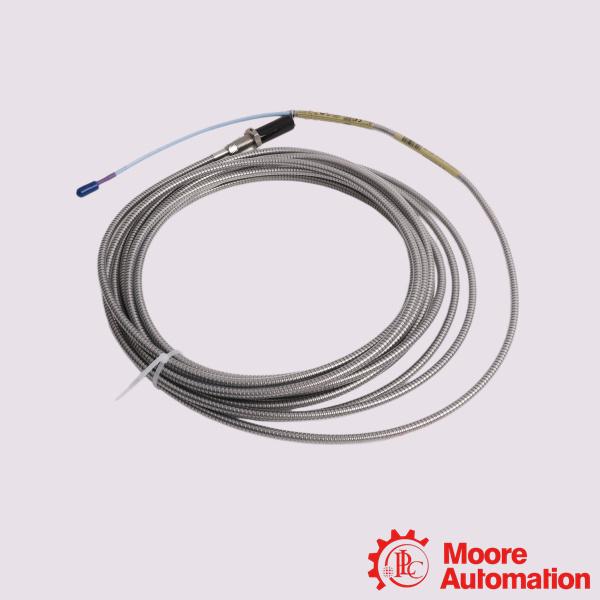

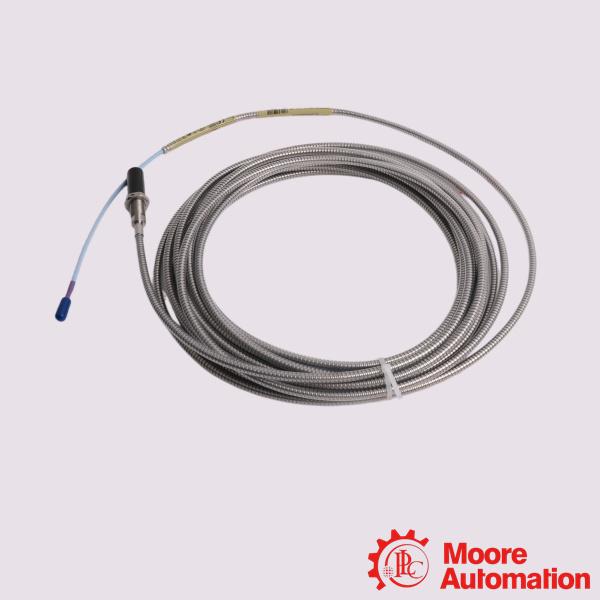

Bently Nevada 330704-000-060-90-01-CN 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330704-000-060-90-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-060-90-01-CN is an industry-standard 3300 XL 11 mm Proximity Probe for non-contacting vibration and displacement measurements in critical rotating machinery. This metric thread eddy current sensor translates the gap between the probe tip and a conductive target into a precise voltage output.The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Steam Turbines: Used primarily for measuring ramp differential expansion, which ensures the rotor and casing expand safely relative to each other during start-up thermal shifts.
Reciprocating Compressors: Applied for continuous "rod drop" or rod position monitoring to track rider band wear and prevent critical piston-to-cylinder contact.
Hydroelectric & Gas Generators: Monitored for thrust (axial) position and large shaft radial vibrations to safeguard heavy rotating assemblies.
Heavy Duty Industrial Pumps & Fans: Tracks structural shaft behavior under fluid-film bearing operations.
Frequently Asked Questions (FAQ)
Q:Does it require a matching Proximitor sensor?
A:Yes. To get a valid measurement, you must connect this 9.0-meter probe to a matching 3300 XL 11 mm Proximitor Sensor configured for a 9.0-meter system length. Do not mix it with 5.0-meter systems or 8 mm sensor lines, as doing so will ruin calibration.
Q:What is the scale factor and range of this probe?
A:As an 11 mm system probe, it yields a standard linear scale factor of 3.94 V/mm (100 mV/mil). It is ideal for wider measuring ranges compared to smaller 8 mm probe systems.
Q:What are the thread and case measurements?
A:This specific configuration utilizes an M14 x 1.5 metric thread, featuring a fully threaded 60 mm case length and 0 mm of unthreaded body.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-060-90-01-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
60 mm |
|
Total Length Option |
9.0 meters (29.5 feet) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
