in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
30x30x4cmWeight:
0.98kgCountry of Origin: :
USADescription:

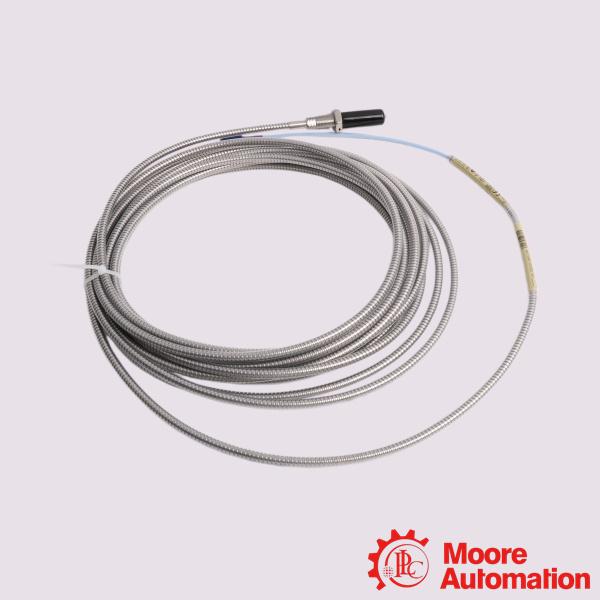

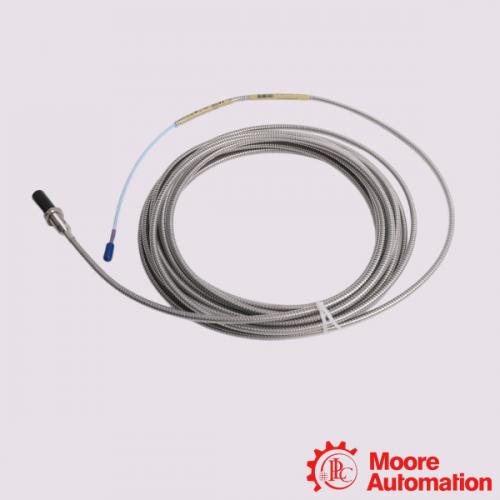

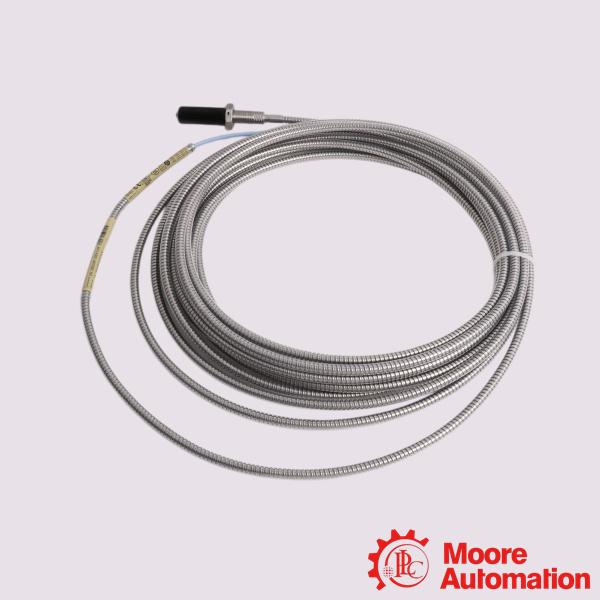

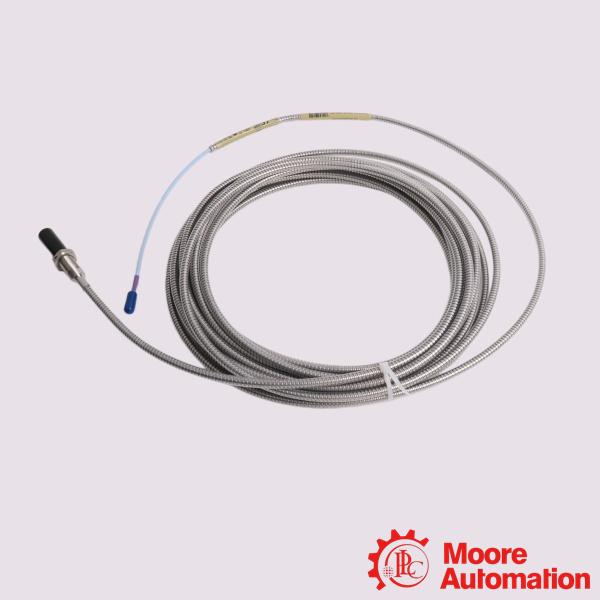

Bently Nevada 330704-000-060-50-12-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330704-000-060-50-12-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-060-50-12-00 is an industrial-grade 3300 XL 11 mm Proximity Probe featuring an M14 x 1.5 metric thread and integrated armor protection. It uses non-contact eddy-current technology to measure static position (thrust) and dynamic shaft vibration in critical rotating machinery like turbines and compressors. The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Steam and Gas Turbines: Monitors rotor position and dynamic stress during high-temperature thermal growth.
Centrifugal and Axial Compressors: Tracks heavy shaft movements under variable aerodynamic loads.
Industrial Pumps and Electric Motors: Detects fluid-film bearing degradation and shaft misalignment in high-power setups.
Hydroelectric Generators: Measures broad mechanical clearances and low-frequency vibration on large rotor shafts.
Frequently Asked Questions (FAQ)
Q:Can I calibrate this probe to a target material other than steel?
A:The factory-calibrated standard target material is AISI 4140 steel. While it will detect other conductive metals, utilizing alternative targets will alter the voltage output slope and decrease system measurement accuracy unless the matching Proximitor is custom-calibrated.
Q:Does this probe require an extension cable?
A:It depends on your overall transducer layout. Because this model contains a 5.0-metre total cable, it can connect directly to a 5.0-metre rated Proximitor Sensor without an extension cable. If using a 9.0-metre system configuration, a 4.0-metre 3300 XL extension cable must be added.
Q:What is the purpose of the 11 mm probe compared to an 8 mm probe?
A:The 11 mm probe tip provides a wider linear range (4.0 mm) compared to standard 8 mm probes (2.0 mm). This makes it optimal for measuring large axial changes, such as thrust position and differential expansion on massive turbine rotors.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-060-50-12-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
60 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option |
Not required |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
