in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
6x2.5x2.5cmWeight:
0.08kgCountry of Origin: :
USADescription:

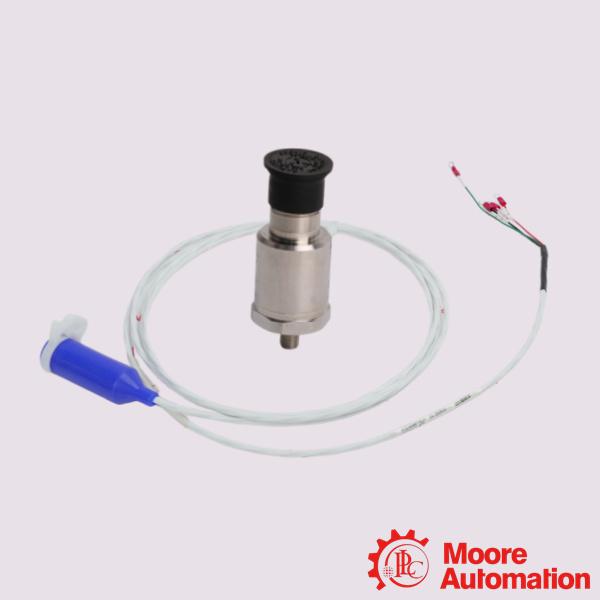

Bently Nevada 330400-01-00 130539-25 Accelerometer with Interconnect Cables
| Mfr. Part Number: |
330400-01-00 130539-25 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

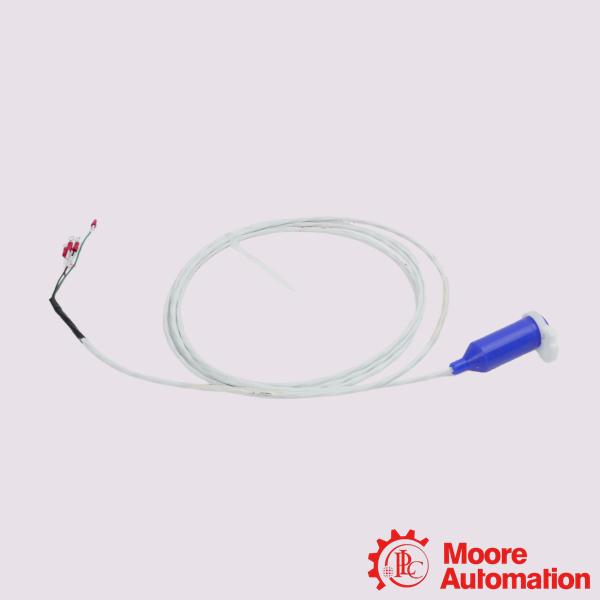

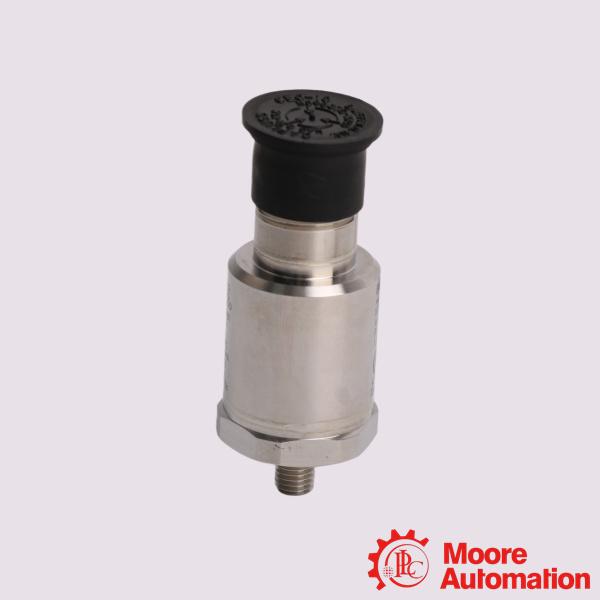

The Bently Nevada 330400-01-00 is a high-performance piezoelectric accelerometer sensor primarily used for machinery casing vibration monitoring, while the 130539-25 is its corresponding 25-foot 3-wire shielded interconnect cable. This hardware pairing is standard in critical industrial environments like gear mesh monitoring. These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. The 330400 is to address the requirements of American Petroleum Institute Standard 670 for accelerometers. It provides an amplitude range of 50 g peak and a sensitivity of 100 mV/g. The 330425 is identical except it provides a larger amplitude range (75 g peak) and a sensitivity of 25 mV/g.
Application:
Oil and Gas: Upstream drilling platforms, midstream pipelines, and downstream oil refineries.
Power Generation: Nuclear, fossil fuel, and hydroelectric power plants utilizing large turbine-generator sets.
Chemical and Petrochemical: Continuous-operation processing plants where machinery downtime is highly costly.
Pulp and Paper / Mining: Large rollers, crushers, conveyors, and heavy grinding mills.
Frequently Asked Questions (FAQ)
Q:Does high-frequency vibration affect accuracy?
A:Yes. Vibration frequencies above 15 kHz—especially those hitting the transducer's natural resonant peak (which sits greater than 30 kHz)—can saturate the internal electronics and significantly lower the measurable "g" range.
Q:How should the sensor be mounted?
A:The sensor must be securely fastened via its 1/4-28 UNF thread base. Ensure the mounting surface is flat, clean, and torque-loaded to manual specifications to avoid losing frequency response clarity.
Q:What kind of applications is this pairing used for?
A:It is built for critical machinery applications that require structural casing acceleration measurements. It is heavily used in gear mesh monitoring, high-speed rolling element bearings, and aerodynamic compressors. It addresses all compliance guidelines for the American Petroleum Institute (API) Standard 670.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330400-01-00 130539-25 |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ±5%. |
|
Amplitude Linearity |
±1% to 490 m/ s2 (50 g) peak |
|
Transverse Sensitivity |
Less than 5% of axial. |
|
Input Voltage |
-24 ± 0.5 Vdc. |
|
Bias Current |
2 mA nominal. |
|
Output Bias Voltage |
-8.5 ± 0.5 Vdc. |
|
Operating and storage temperature |
-55°C to +121°C (-67°F to +250°F) |
|
Mounting Thread Option |
¼-28 UNF integral stud |
|
Agency Approval Option |
None |
|
Cable Length Option in feet |
25 ft |
|
