in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
114.5x2.5x2cmWeight:
0.16kgCountry of Origin: :
USADescription:

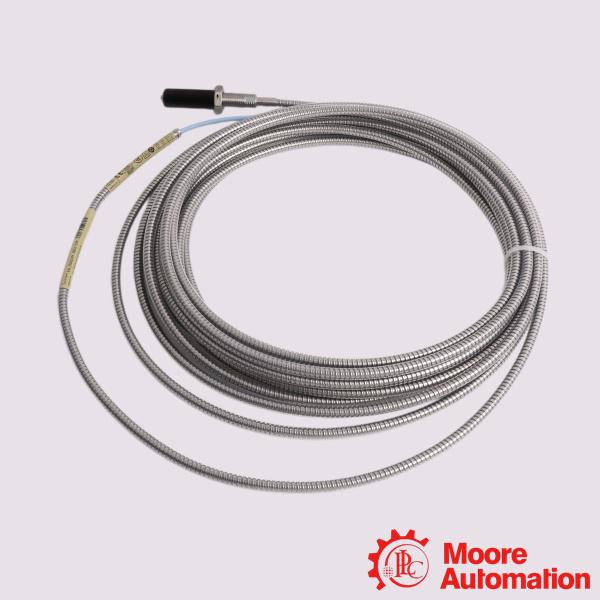

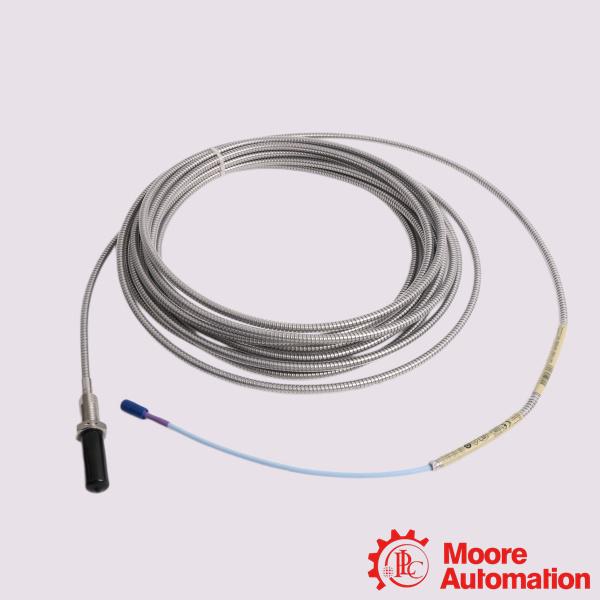

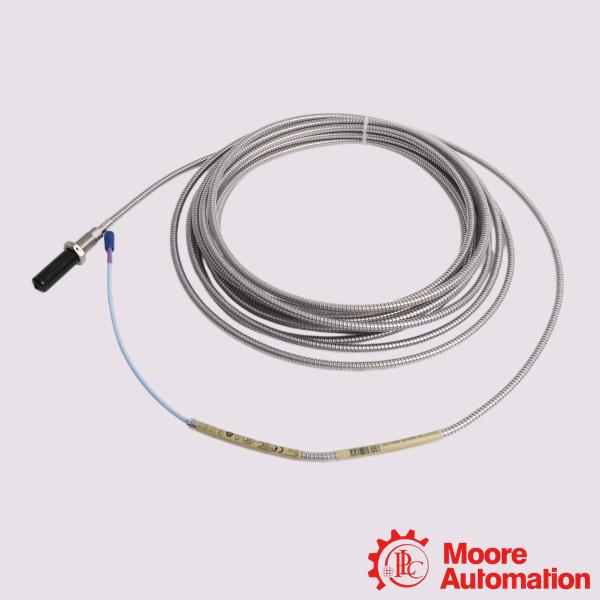

Bently Nevada 330704-000-050-10-01-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330704-000-050-10-01-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and
displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-050-10-01-00 is a proximity probe from the 3300 XL 11 mm Proximity Transducer System. It is specifically for non-contact vibration and position measurements in high-performance rotating machinery. Given your existing physical inventory of Bently Nevada components and your focus on industrial automation spare parts, this model is a critical asset for protection and diagnostic strategies in heavy industrial sectors.The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Power Generation: Monitoring bearing vibration and displacement in steam turbines, water turbines, and generators. It is also essential for feed pumps to prevent catastrophic equipment failure
Oil & Gas and Petrochemical: Monitoring critical assets such as gas turbines and large process compressors (centrifugal, refrigeration, and gas).
Industrial Manufacturing: Used on any heavy machinery utilizing fluid-film bearings, providing data for predictive maintenance and asset protection.
Radial Vibration: Monitoring the side-to-side movement of shafts to detect imbalances or bearing wear.
Frequently Asked Questions (FAQ)
Q:How does this sensor system work?
A:The system utilizes eddy current sensor technology. The probe tip emits a high-frequency radio frequency (RF) signal. As a conductive metal target (like a machine shaft) moves closer or further away, it disrupts this field, altering the return voltage to track position or vibration.
Q:What is the typical gap voltage for setting up this probe?
A:The standard operating gap voltage range for Bently Nevada 3300 XL probes is −9 VDC to −11 VDC. This signifies the probe is properly positioned in the middle of its linear measurement range.
Q:What target material is required for maximum measurement accuracy?
A:System accuracy and interchangeability specifications are based on a standard AISI 4140 steel target. The target area must be at least 31 mm (1.2 inches) in diameter or larger. Calibrating to other materials requires custom adjustments.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-050-10-01-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
50 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output resistance |
50 Ω |
|
Standard DSL range |
Less than ±0.10 mm (±4 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Agency Approval Option |
Not required |
|
