in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.5x2x122cmWeight:
0.14kgCountry of Origin: :
USADescription:

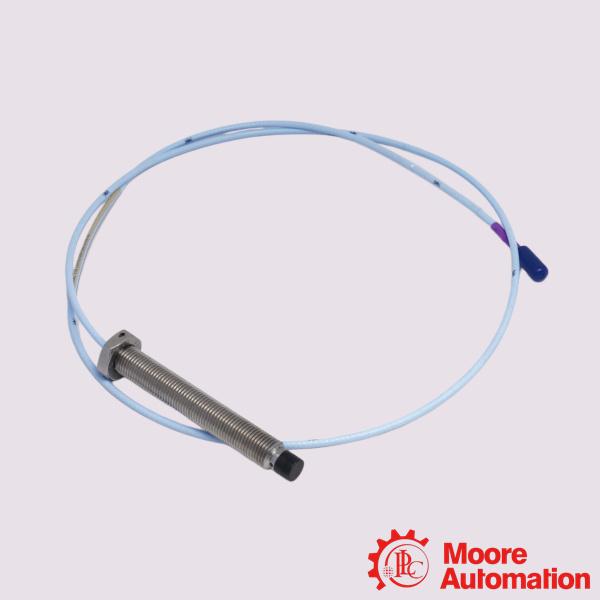

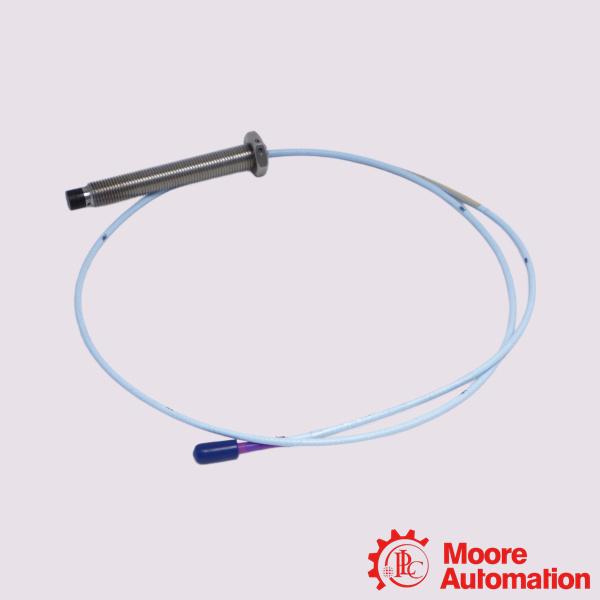

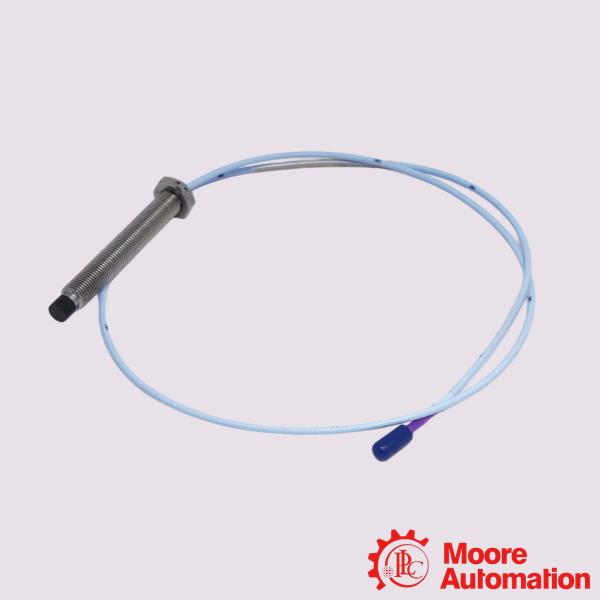

Bently Nevada 330703-000-100-50-12-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330703-000-100-50-12-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and
displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330703-000-100-50-12-00 is an 11 mm proximity probe belonging to the 3300 XL series. It is primarily used for machinery condition monitoring and predictive maintenance in heavy industrial environments to detect potential faults before catastrophic failure occurs.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Turbines (Steam and Gas): Used for axial (thrust) position measurements and monitoring ramp differential expansion.
Reciprocating Compressors: Specifically utilized for rod position or rod drop measurements to detect wear.
Centrifugal Compressors: Ideal for monitoring radial vibration and axial position where standard 8 mm probes lack sufficient reach or linear range.
Pumps and Motors: Provides continuous vibration monitoring and phase reference (Keyphasor) signals to ensure operational stability.
Frequently Asked Questions (FAQ)
Q:Can this probe be fully submerged?
A:The probe tip and body are rated for 100% condensing humidity and are fully submersible. However, ensure the ClickLoc connector link is safely housed inside a dedicated junction box or connector protector sleeve to prevent fluid ingress from shorting out the high-frequency signal.
Q:What is the recommended gap voltage during installation?
A:For a properly gapped 3300 XL system, your normal gap voltage should measure approximately −9 V to −11 V DC when the monitored shaft is resting in the center of the probe's linear operational range.
Q:What is the scale factor and output configuration?
A:When coupled with a matching 3300 XL 11 mm Proximitor Sensor, the system produces a linear voltage output of 3.94 V/mm (100 mV/mil). The default calibration target is standard AISI 4140 steel.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330703-000-100-50-12-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
100 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Output resistance |
50 Ω |
|
Standard DSL range |
Less than ±0.10 mm (±4 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Agency Approval Option |
Not required |
|
