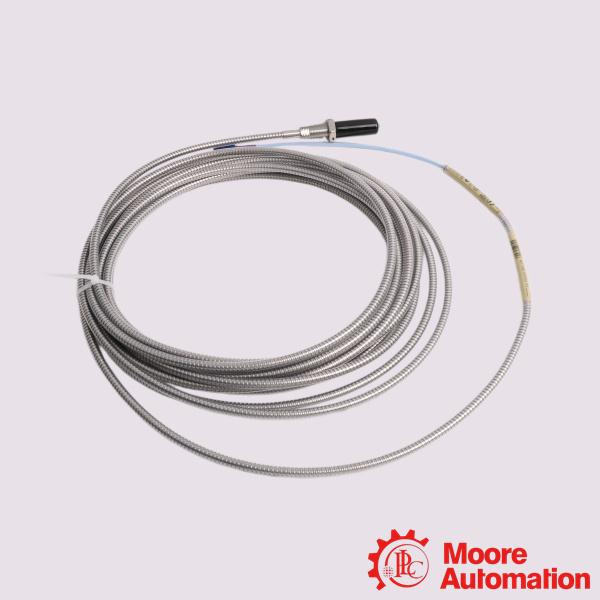

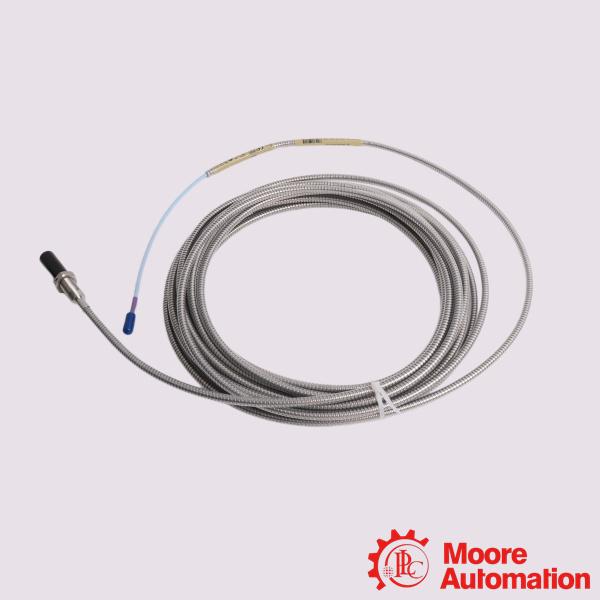

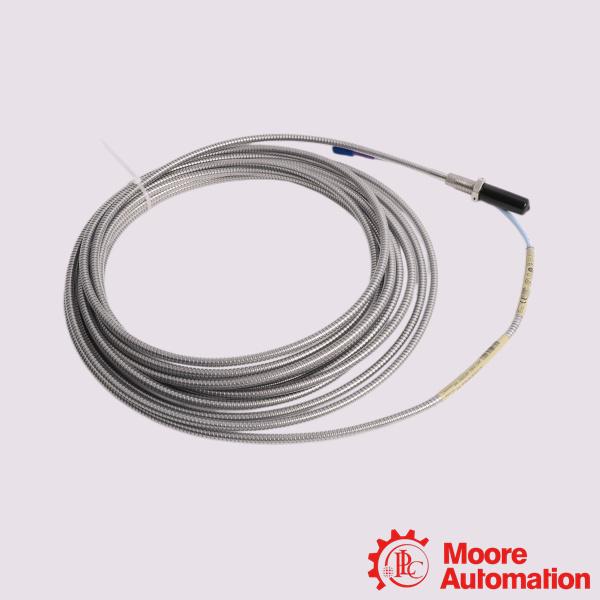

Bently Nevada 330704-000-030-10-02-00 Two-wire Transducer
| Mfr. Part Number: |
330704-000-030-10-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-030-10-02-00 is an 11 mm proximity probe from the 3300 XL 11mm Proximity Transducer System, primarily engineered for continuous machinery protection, fluid-film bearing monitoring, and non-contact vibration analysis in critical industrial assets.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated.
Application:
Steam and Gas Turbines: Monitors severe axial thrust displacement and high-amplitude radial vibration.
Centrifugal and Axial Compressors: Tracks fast-rotating shaft stability and guards against surge-related thrust damage.
Large Industrial Pumps & Fans: Detects misalignment, unbalance, and bearing wear patterns before catastrophic failure.
Gearboxes and Generators: Measures shaft position variations under changing load conditions.
Frequently Asked Questions (FAQ)
Q:What Proximitor Sensor must I use with this probe?
A:You must connect this probe to a 1.0-meter system compatible 3300 XL 11 mm Proximitor Sensor combined with a matching extension cable to match the overall electrical length required by the sensor (typically a 5-meter or 9-meter total system). Do not mix it with 5 mm, 8 mm, or 25 mm sensor systems.
Q:What is the target material used for calibration?
A:The system is factory-calibrated to a standard AISI 4140 steel target. Using other metals will alter the output sensitivity and system accuracy.
Q:Is the probe tip pressure-sealed?
A:Yes. The probe uses an integrated Viton O-ring designed to seal differential pressure between the probe tip and the case. However, they are not custom pressure-tested by the factory prior to shipment unless specifically requested.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-030-10-02-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
30 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Agency Approval Option |
Not required |
|
