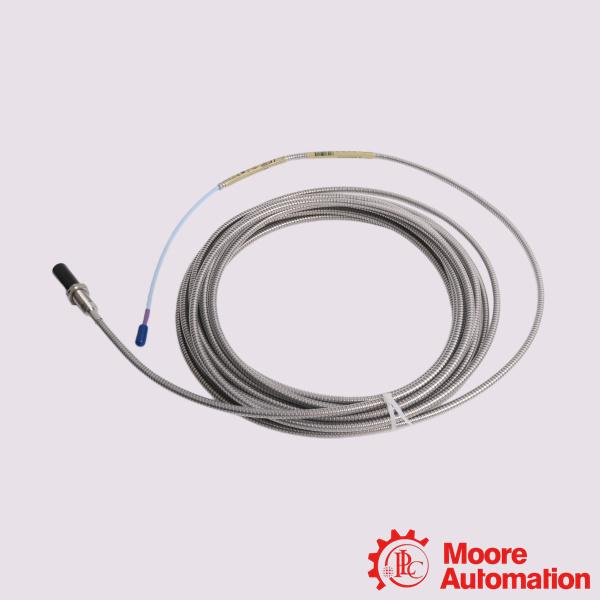

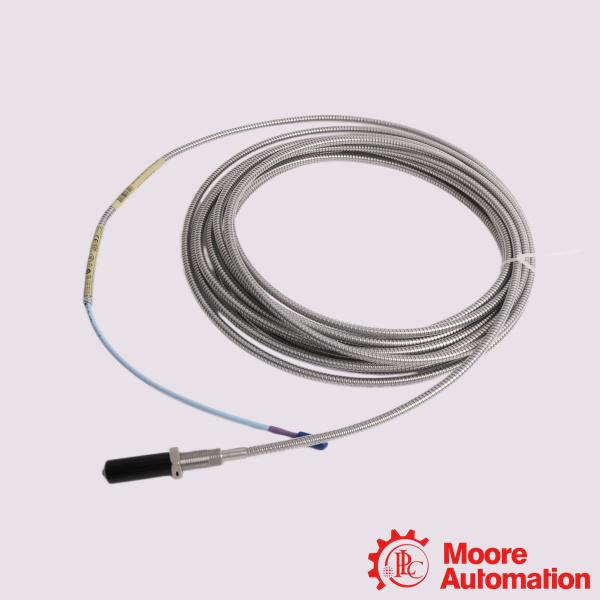

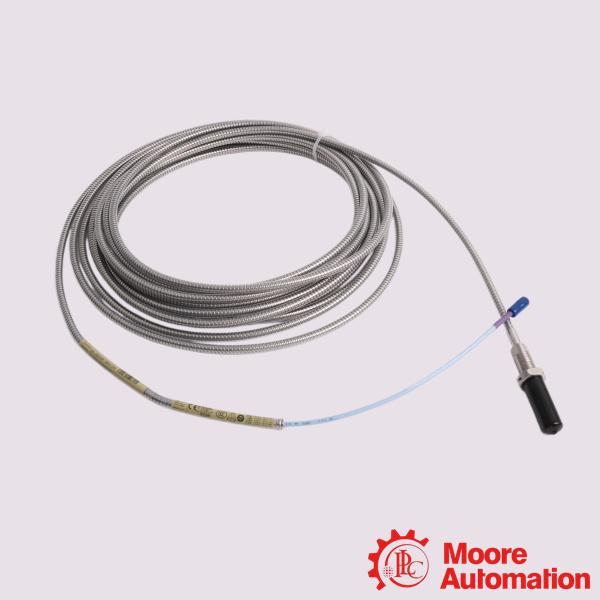

Bently Nevada 330704-000-040-10-02-00 Two-wire Transducer
| Mfr. Part Number: |
330704-000-040-10-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-040-10-02-00 is an 11 mm Proximity Probe belonging to the 3300 XL 11mm Proximity Transducer System. It is primarily for the non-contact measurement of shaft vibration, position, and speed in critical industrial machinery.The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Shaft Radial Vibration: Capturing dynamic motion of the shaft within fluid-film bearings.
Axial (Thrust) Position: Monitoring subtle shifting of the shaft along its axis to prevent catastrophic internal rotor-to-stator contact.
Keyphasor Phase Reference: Providing exact timing markers for rotational speed and phase angle measurements.
Thermal Growth / Expansion: Measuring slow, static changes in position as machinery heats up to operating temperatures.
Frequently Asked Questions (FAQ)
Q:What extension cable and sensor do I need for a complete loop?
A:Because the probe has a 1.0-meter cable, you will need to pair it with either a 4.0-meter extension cable (for a 5-meter system) or an 8.0-meter extension cable (for a 9-meter system). Match this total loop length exactly to a 5m or 9m 3300 XL 11mm Proximitor Sensor.
Q:Is this probe backward-compatible with legacy systems?
A:Yes. The 3300 XL series maintains backward compatibility with legacy 3300 extension cables and Proximitor sensors. However, they must be installed as a matched system length (either 5-meter or 9-meter configurations) to maintain accuracy.
Q:What is the default calibration target for this system?
A:The factory specifications and accuracy metrics are calibrated using an AISI 4140 steel target. If your machinery uses a different target material, the system must be recalibrated, or the gap voltage readings will lose precision
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-040-10-02-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
40 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Agency Approval Option |
Not required |
|
