in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
31x28x4cmWeight:
0.55kgCountry of Origin: :
USADescription:

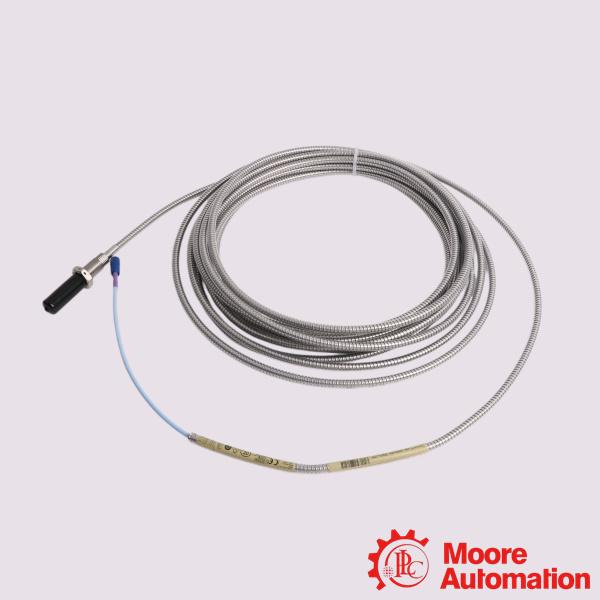

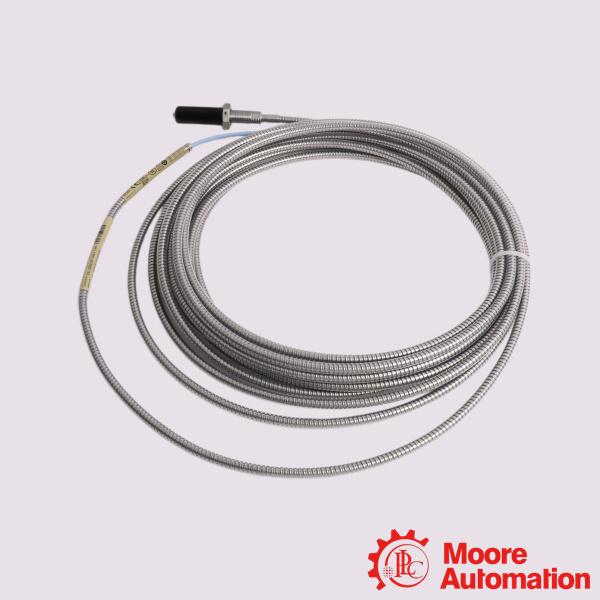

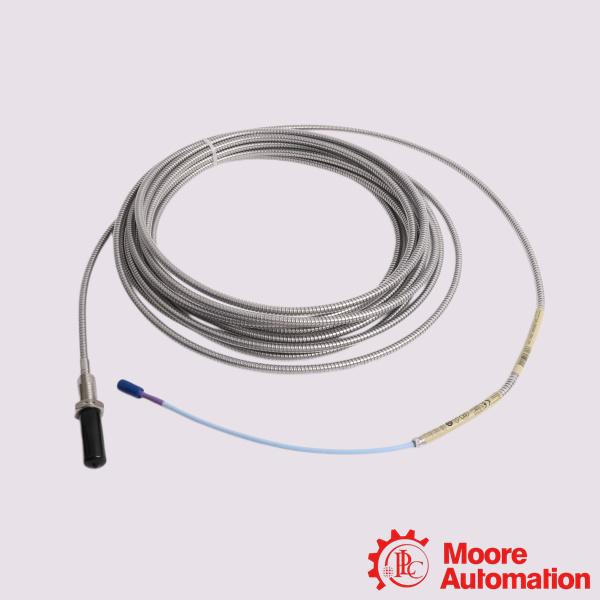

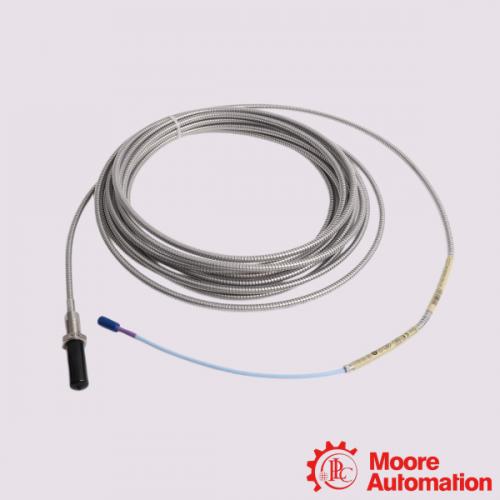

Bently Nevada 330704-000-026-50-02-CN Two-wire Transducer
| Mfr. Part Number: |
330704-000-026-50-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-026-50-02-CN is an industry-standard 3300 XL 11 mm Proximity Probe for non-contact vibration, displacement, and position monitoring in critical rotating machinery. It operates via eddy-current technology to detect minute dynamic and static movements of industrial machine shafts.The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Power Generation:Steam turbines, gas turbines, large hydro-turbines, and generator shafts.
Oil, Gas & Petrochemical:Centrifugal compressors, process gas compressors, turbo-expanders, and high-capacity water pumps.
Chemical Processing:Industrial mixers, blowers, high-speed fans, and cooling tower gearboxes.
Heavy Manufacturing & Metallurg:Large electric motors, heavy-duty propulsion machinery, and process air compressors.
Frequently Asked Questions (FAQ)
Q:Is this probe pressure-sealed?
A:Yes. The 3300 XL probe series features a built-in seal engineered to withstand differential pressure across the joint between the fluid-film bearing's inner casing (oil-filled) and the exterior environment.
Q:Can I mix and match components with other systems?
A:No. The 11 mm probe tip must be used exclusively with the 3300 XL 11 mm Proximitor Sensor and its appropriate system-length cables. Mixing 11 mm probes with 5 mm, 8 mm, or 50 mm sensor electronics will generate severe measurement errors due to mismatched operating frequencies and coil inductance.
Q:What is the target material requirement for this probe?
A:The sensor system achieves its standard accuracy and linear range when reading against a Bently Nevada AISI 4140 steel target. Utilizing alternate target metals will change the target's eddy current characteristics, requiring custom system calibration.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-026-50-02-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
26 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
