Product Description:

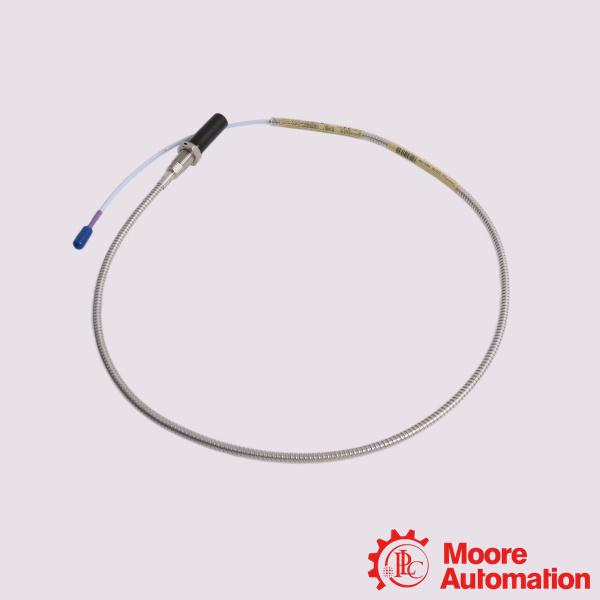

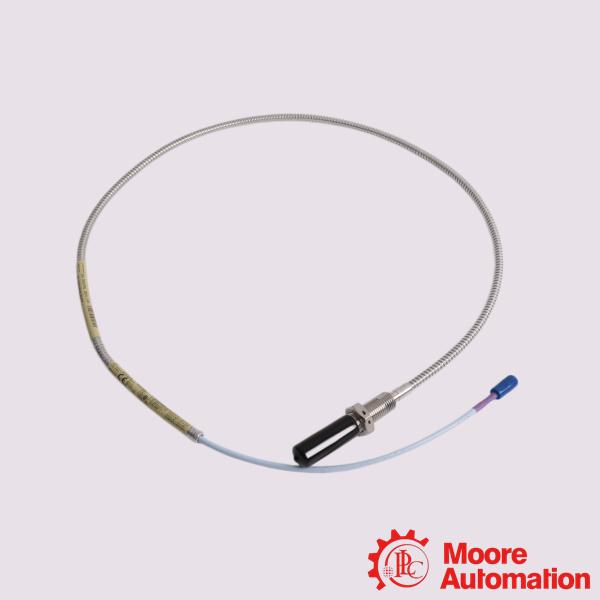

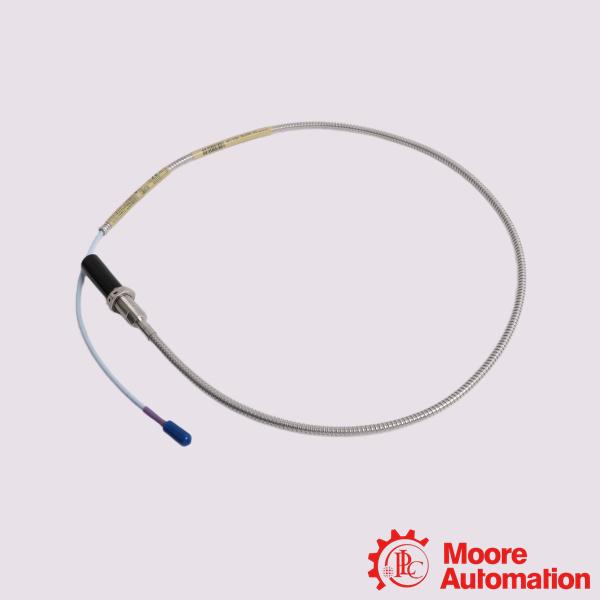

The Bently Nevada 330704-000-026-50-01-CN is an 11 mm Proximity Probe belonging to the 3300 XL Transducer System family. It uses eddy-current technology for non-contact vibration and displacement monitoring on critical rotating machinery.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.

Frequently Asked Questions (FAQ)

Q:What are the physical benefits of the integrated armor?

A:The flexible AISI 302 stainless steel armor sleeve surrounds the internal coaxial cable to shield it against abrasion, physical crushing, and sharp impacts inside the turbine or machine housing. It also features a robust CableLoc design providing up to 330 N (75 lbf) of pull strength between the case and the lead line.
Q:What does the "CN" suffix mean for hazardous locations?
A:The "CN" designation indicates China-specific hazardous area certifications. This guarantees that the hardware complies with local Chinese safety standards (such as GB/T codes for intrinsic safety or explosion-proofing) and passes regional customs or compliance inspections without friction.

Q:What is the linear range and scale factor of this sensor system?
A:When connected to a matching 3300 XL 11 mm Proximitor Sensor, the system yields a linear range of 4.0 mm (160 mils). The nominal scale factor is 3.94 V/mm (100 mV/mil) when measuring an AISI 4140 steel target.
