in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.2x2x115cmWeight:
0.2kgCountry of Origin: :
USADescription:

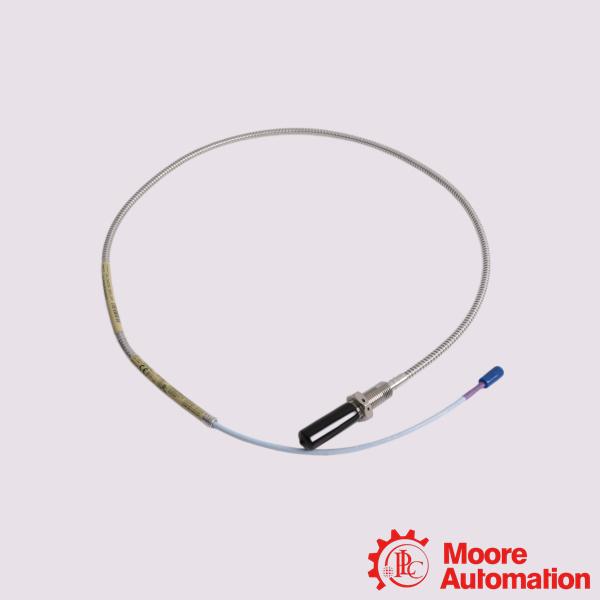

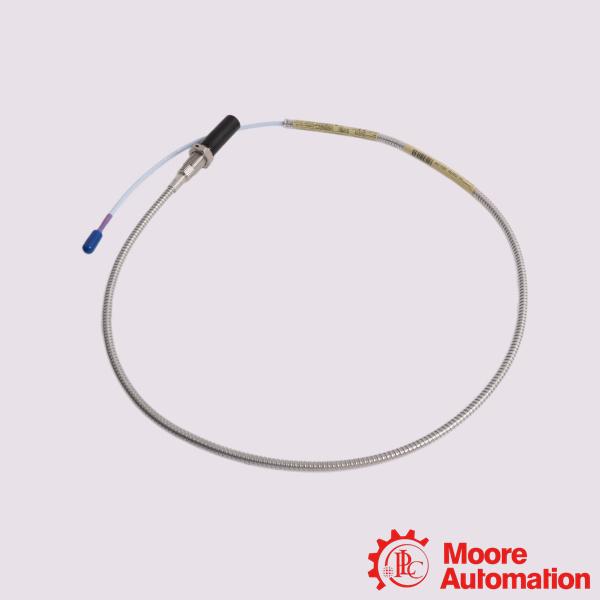

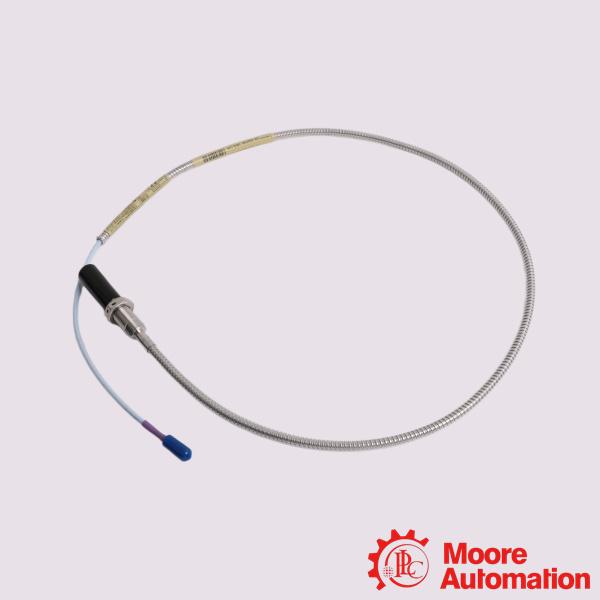

Bently Nevada 330704-000-026-50-01-00 Two-wire Transducer
| Mfr. Part Number: |
330704-000-026-50-01-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-026-50-01-00 is an 11 mm Metric Proximity Probe belonging to the industry-standard 3300 XL Proximity Transducer System.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Oil & Gas (Upstream & Downstream): Deployed on offshore drilling platforms, refineries, and pipelines.
Steam and Gas Turbines: Monitors thermal expansion, thrust position, and high-speed rotor vibration.
Centrifugal & Axial Compressors: Tracks rotor stability and manages surge prevention tracking.
Large Industrial Pumps & Motors: Protects high-energy boiler feed pumps and fluid transfer systems.
Frequently Asked Questions (FAQ)
Q:Can I use this to replace old 7200-series sensors?
A:Yes, the 3300 XL 11 mm series is engineered as a direct commercial upgrade to replace legacy 7200-series 11 mm and 14 mm transducer systems. However, verify that your monitoring rack cards match the 3.94 V/mm scale configuration.
Q:What target material is this probe calibrated to?
A:By default, Bently Nevada calibrates these sensors using an AISI 4140 steel target. If your machinery uses a different shaft material, a custom calibration or scale-factor correction factor must be applied to prevent measurement drift.
Q:What is the scale factor and linear range?
A:The 3300 XL 11 mm system features a standard output sensitivity of 3.94 V/mm (100 mV/mil). It delivers an extended linear measurement range of up to 4.0 mm (160 mils), starting from a recommended default gap setting of 2.5 mm (100 mils).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-026-50-01-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
26 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Agency Approval Option |
Not required |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
