in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.5x2x124cmWeight:
0.1kgCountry of Origin: :
USADescription:

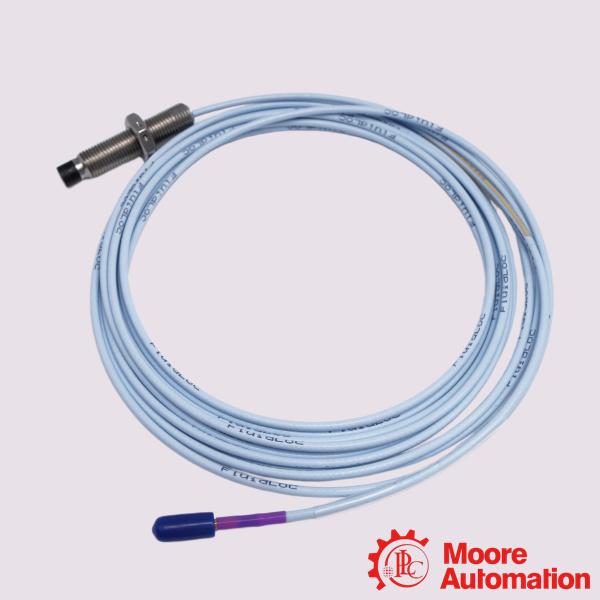

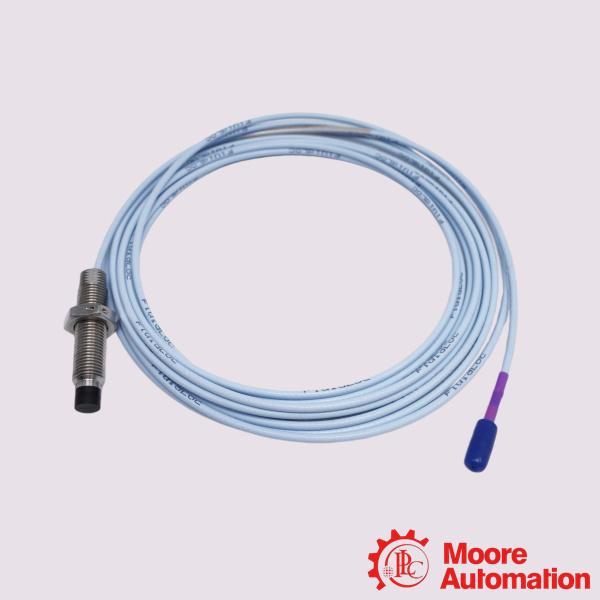

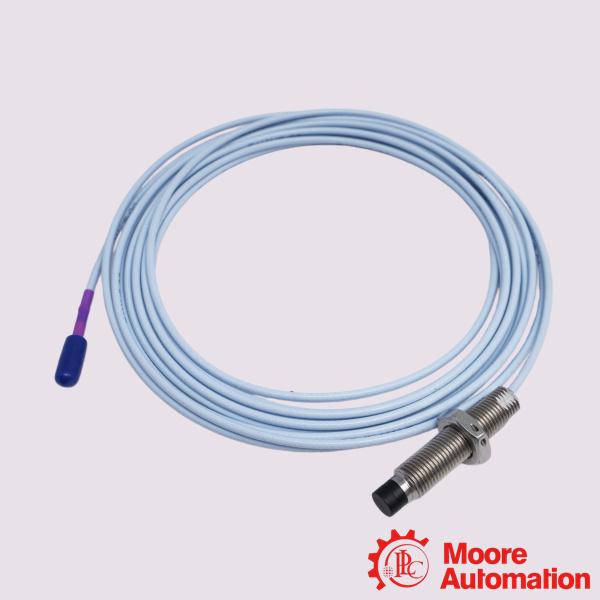

Bently Nevada 330703-000-100-10-02-CN3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330703-000-100-10-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and
displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330703-000-100-10-02-CN is an 11 mm Proximity Probe from the 3300 XL series. It is primarily for high-end industrial machinery health monitoring where a longer linear measurement range is required than what standard 8 mm probes can provide.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Steam and Gas Turbines: Used for ramp differential expansion measurements and monitoring shaft position or eccentricity.
Reciprocating Compressors: Ideal for rod position or rod drop measurements to detect excessive wear.
General Rotating Machinery: Monitoring axial (thrust) position, radial vibration, and acting as a phase reference (Keyphasor) or tachometer for zero-speed measurements.
Safety-Critical Systems: These components are often integrated into Emergency Shutdown (ESD) Systems and other electronic safety environments where precise timing and reliability are essential.
Frequently Asked Questions (FAQ)
Q:What torque should be applied during installation?
A:The recommended installation torque is 21.1 N⋅m (187 in⋅lb). Do not exceed the maximum rating of 63.3 N⋅m, and limit thread engagement to 21 mm to prevent physical case deformation.
Q:What is the typical gap voltage setting for operation?
A:The standard operating gap voltage is typically between -9 V DC and -11 V DC when the probe is properly positioned and the monitored shaft is centered within its linear range.
Q:What is the output scale and performance of the transducer system?
A:When connected to a matching 3300 XL Proximitor Sensor, it provides a linear output voltage of 3.94 V/mm (100 mV/mil). The voltage is directly proportional to the physical gap distance between the probe tip and the target conductive surface.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330703-000-100-10-02-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
100 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output resistance |
50 Ω |
|
Standard DSL range |
Less than ±0.10 mm (±4 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
