in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
122x2.7x2.2cmWeight:
0.14kgCountry of Origin: :
USADescription:

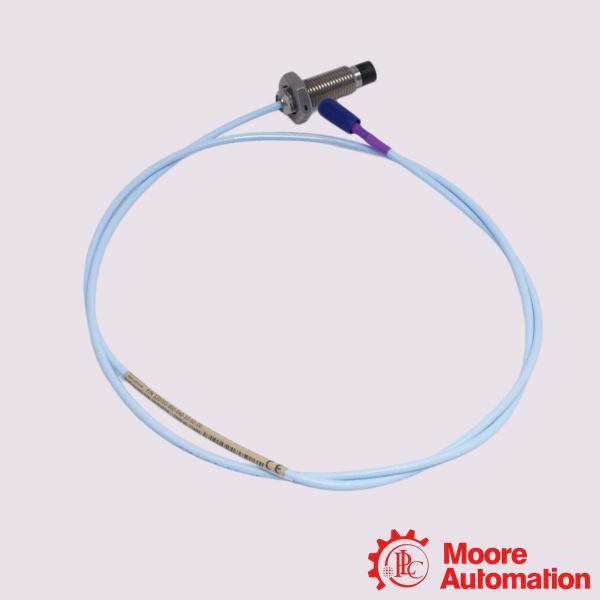

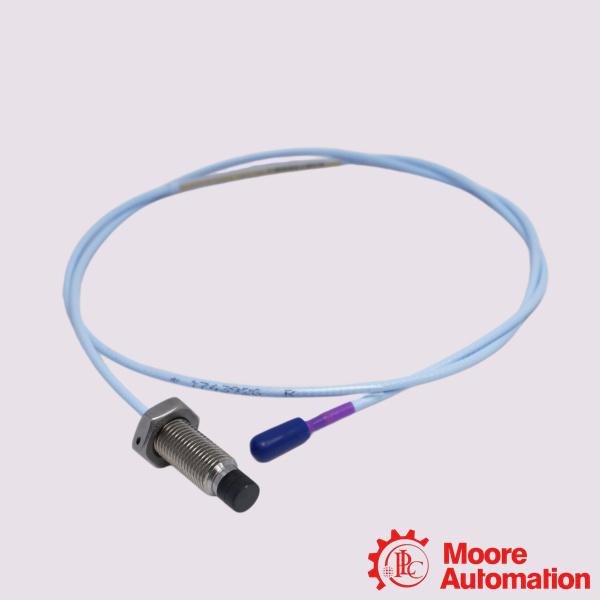

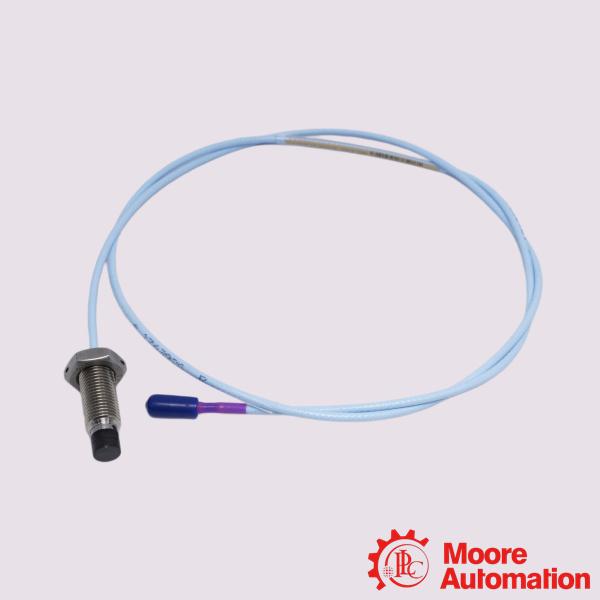

Bently Nevada 330703-000-090-10-02-00 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330703-000-090-10-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and
displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330703-000-090-10-02-00 is a 3300 XL 11 mm Proximity Probe commonly used in heavy industrial machinery to monitor vibration, axial position, and speed. The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Centrifugal Compressors: Monitors radial vibration and axial position of high-pressure process shafts.
Steam and Gas Turbines: Tracks rotor dynamics and thermal growth clearances in power generation and mechanical drive units.
Main Steam Turbines: Measures severe shaft displacements and axial thrust variations.
Generator Rotors: Analyzes journal bearing clearances and structural rotor alignment.
Frequently Asked Questions (FAQ)
Q:What is the scale factor of this probe?
A:The 3300 XL 11 mm system features a standard linear scale factor of 3.94 V/mm (100 mV/mil).
Q:What is the typical gap voltage for operation?
A:When correctly positioned relative to a centered fluid-filmed bearing or shaft, the baseline gap voltage typically reads between −9 V DC and −11 V DC within its linear range.
Q:Why is checking internal thread engagement important?
A:.Bently Nevada builds threads to standard tolerances. If your internal machine casing thread engagement exceeds 0.563 inches (for 3/8-24 threads), the probe case can bind during tightening. Binding often shears internal wires, which is explicitly not covered under factory warranty.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330703-000-090-10-02-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
90 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output resistance |
50 Ω |
|
Standard DSL range |
Less than ±0.10 mm (±4 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Not required |
|
