in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.2x2x112cmWeight:
0.14kgCountry of Origin: :
USADescription:

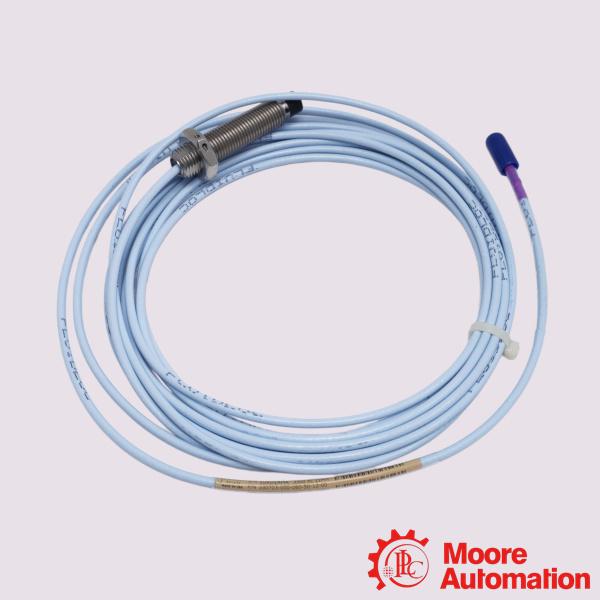

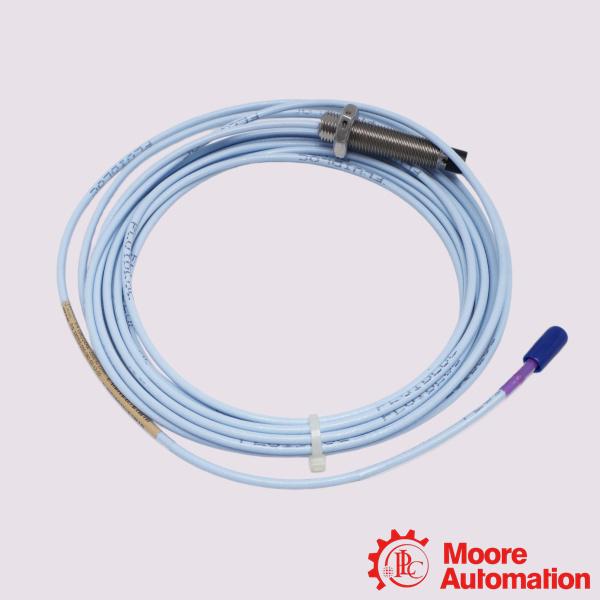

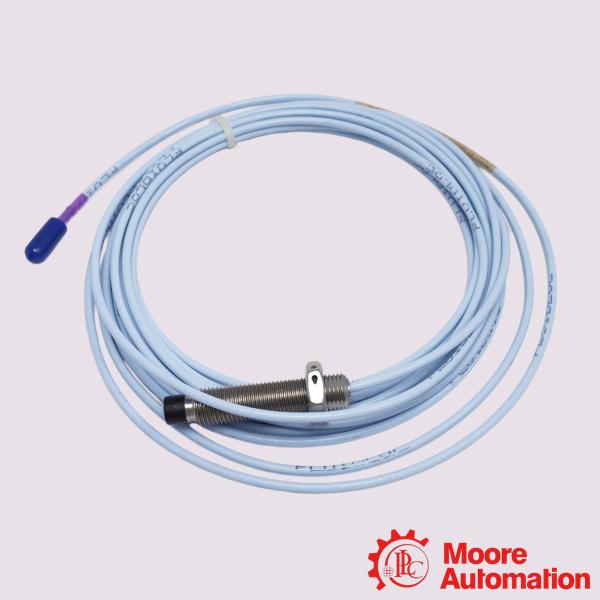

Bently Nevada 330703-000-026-10-01-CN 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330703-000-026-10-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and
displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330703-000-026-10-01-CN is an 11 mm Proximity Probe part of the 3300 XL Proximity Transducer System. This specific probe is a non-contacting eddy current sensor designed to measure vibration and position relative to a target shaft, primarily in critical machinery that requires a longer linear range than standard 8 mm probes.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Axial (Thrust) Position: The 11 mm probe is specifically chosen for axial position measurements because its larger tip allows for a longer linear sensing range.
Radial Vibration and Position: Measuring shaft movement within the clearances of fluid-film bearings.
Power Generation: Coal-fired and combined-cycle plants, as well as wind condition monitoring.
Manufacturing: Steel and metal production, pulp and paper mills, and general discrete manufacturing.
Frequently Asked Questions (FAQ)
Q:Is this probe compatible with standard 8 mm systems?
A:No. The 330703 probe requires a dedicated matching system. It must interface explicitly with a 3300 XL 11 mm Extension Cable and a 3300 XL 11 mm Proximitor Sensor. Mixing 8 mm and 11 mm hardware will distort the electrical field calibration, resulting in false machinery trip triggers,
Q:What is the typical gap voltage setting?
A:When installed and gapped correctly against a steel target (like 4140 steel) within its linear range, the normal output gap voltage should read roughly −9 V to −11 V DC.
Q:What is the purpose of the 11 mm tip?
A:The larger 11 mm tip allows for a longer linear measurement range (3.94 V/mm or 100 mV/mil) compared to the more common 8 mm variants.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330703-000-026-10-01-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
26 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output resistance |
50 Ω |
|
Standard DSL range |
Less than ±0.10 mm (±4 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
