in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.3x2x112cmWeight:
0.1kgCountry of Origin: :
USADescription:

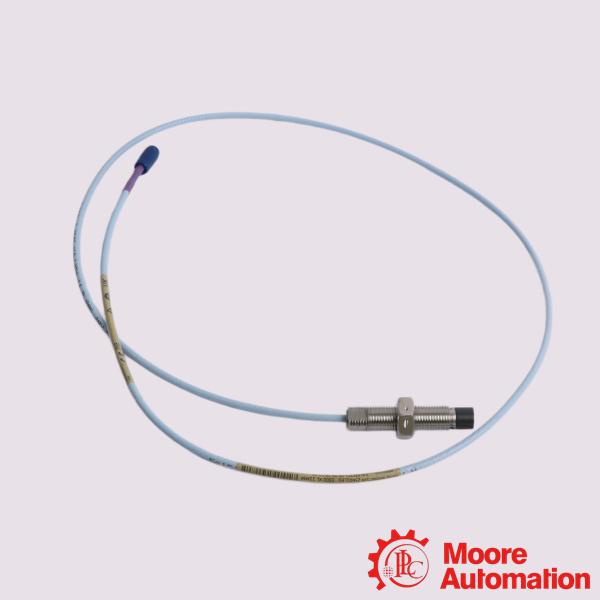

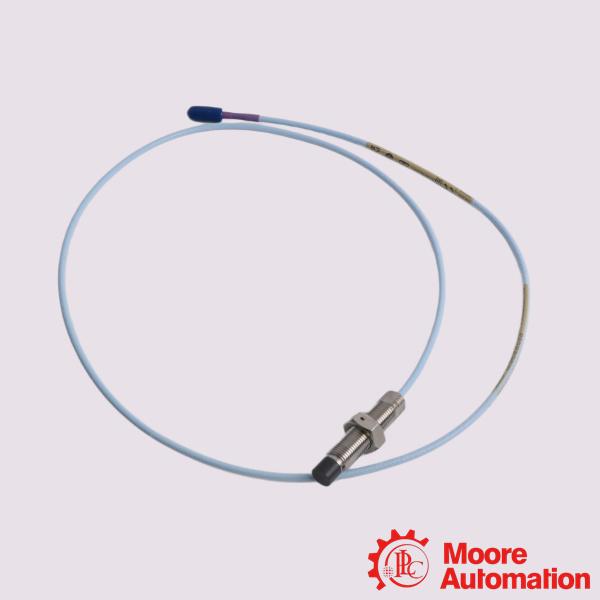

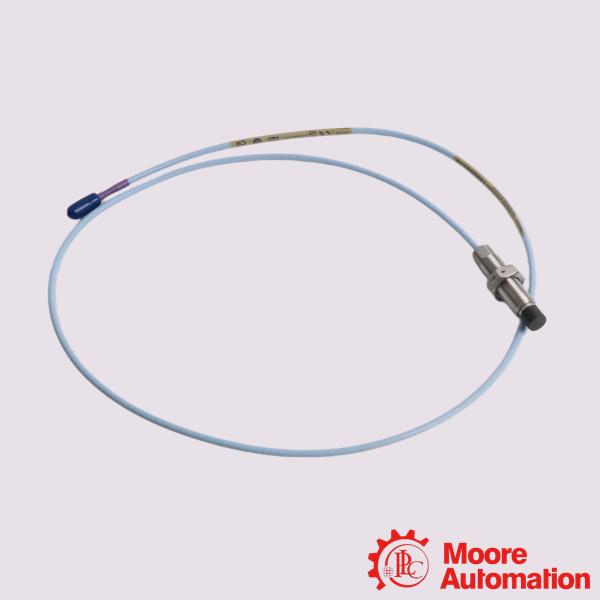

Bently Nevada 330701-00-20-90-02-CN 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330701-00-20-90-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and
displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330701-00-20-90-02-CN is a 3300 XL 11 mm Proximity Probe, which is a component of the 3300 XL 11 mm Proximity Transducer System. This system is primarily for high-precision vibration and position monitoring in critical industrial machinery, particularly where a longer linear range (up to 4 mm) is required compared to standard 8 mm sensors.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Steam and Gas Turbines: It is used for axial (thrust) position measurements and ramp differential expansion measurements specifically on steam turbines.
Reciprocating Compressors: The 11 mm probe is utilized for measuring rod position or rod drop, helping to monitor the health of reciprocating components.
Fluid-Film Bearing Machines: Its primary application is measuring radial vibration and position on machines that use fluid-film bearings, where it detects rotor shaft movement within the bearing clearance.
Speed Measurement: Used as a tachometer for zero speed and rotational speed monitoring.
Frequently Asked Questions (FAQ)
Q:Is an extension cable required for this part number?
A:No. Because this specific option features a -90 (9.0-meter) total integrated cable, it connects directly from the machine's casing area to a matching 9.0-meter 3300 XL Proximitor Sensor. Adding an extension cable here would mismatch the tuned 1 MHz resonant frequency loop and distort measurements.
Q:How tightly should I join the coaxial ClickLoc connector?
A:Connectors must only be finger-tight. Never use pliers or wrenches on the gold-plated brass ClickLoc fittings, as this will crush the core and ruin the RF path.
Q:What is the recommended installation gap?
A:For a 9.0-meter system length, the recommended gap setting is 2.5 mm (100 mils), which translates to a physical gap voltage sweet spot of roughly -9 V to -11 V DC when properly centered.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330701-00-20-90-02-CN |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
2.0 in |
|
Total Length Option |
9.0 meters (29.5 feet) |
|
Output resistance |
50 Ω |
|
Standard DSL range |
Less than ±0.10 mm (±4 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
