190501-07-00-04 | Bently Nevada Velomitor CT Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38 kg
Country of Origin: :
USA
Description:

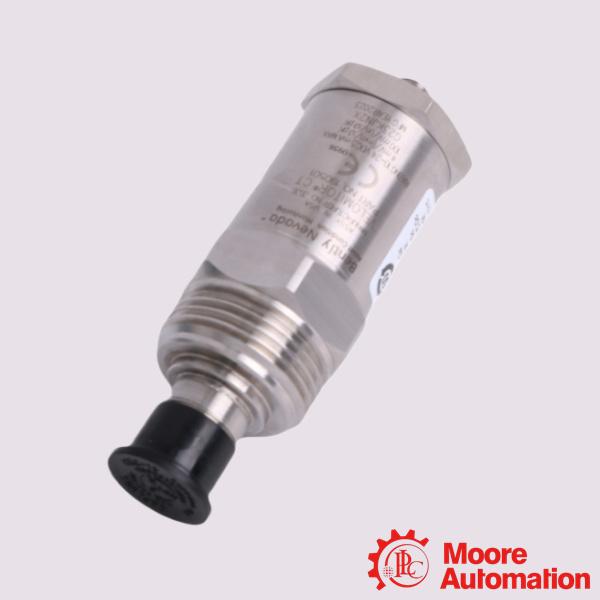

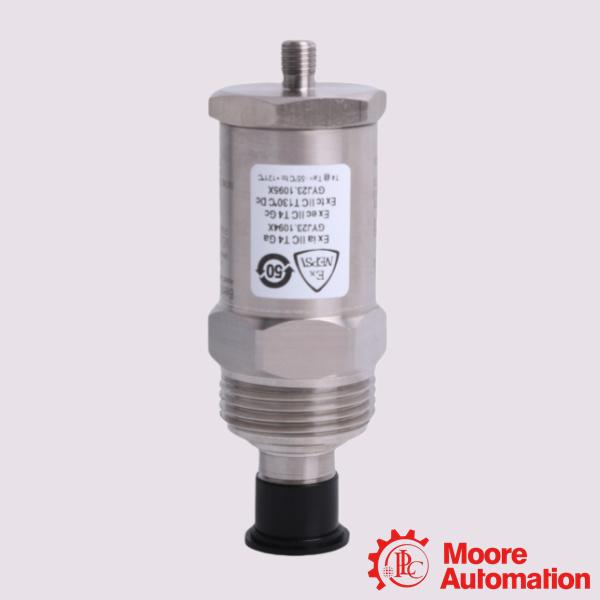

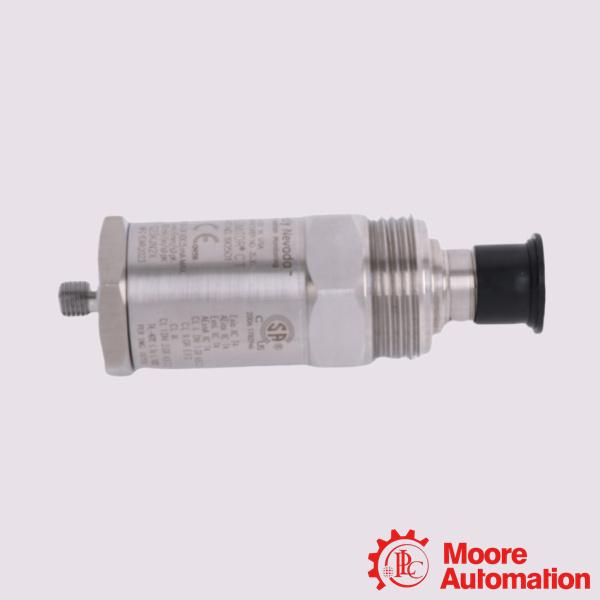

Bently Nevada 190501-07-00-04 Velomitor CT Transducer

Inquiry now

Mfr. Part Number:	190501-07-00-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-07-00-04 Velomitor CT Transducer

Full Description:	The Bently Nevada 190501-07-00-04 Velomitor CT Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-07-00-04 Velomitor CT Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).

Application:

Cooling Tower Fan Assemblies: Measures structural casing and gearbox vibrations induced by heavy, low-RPM fan blades in commercial and industrial HVAC and process systems.
Air-Cooled Heat-Exchangers (Fin-Fans): Monitors high-stress, low-frequency vibrations generated across massive fan assemblies used in cooling petrochemical components.
Gear-Driven Fan Systems: Captures unique vibration signatures stemming from both the high-speed fan motor and the slow-speed, torque-heavy speed reducer.
Slow-Speed Industrial Rotating Machinery: Validates structural health on specialized processing equipment operating within the 100 to 300 RPM window.

Frequently Asked Questions (FAQ)

Q:What is the minimum operating speed (RPM) this sensor can monitor?
A:The sensor is explicitly optimized for low-speed machinery operating as low as 90 RPM (or Cycles Per Minute / CPM). This accommodates slow-turning machinery like cooling tower fans and air-cooled heat exchangers.
Q:What torque must be applied when mounting the sensor?
A:The sensor must be tightened to exactly 4.5 N·m ± 0.6 N·m (40 in·lbf ± 5 in·lbf). Under-torquing reduces high-frequency signal transmission, while over-torquing can damage the internal piezoelectric crystal assembly.

Q:Can this sensor be mounted sideways or upside down?
A:Yes, it supports any orientation (0° to 360°). Note that the internal signal polarity dictates that Pin A goes positive relative to Pin B when mechanical velocity moves from the sensor base toward the top cap.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number:190501-07-00-04
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Frequency Response	3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB
Transverse Response	Less than 5% of the axial sensitivity
Case Material	316L stainless steel
Dynamic Output Impedance	<400 Ω typical
