Brand/ Manufacturer:
Bently NevadaDimensions:
7.5x2.8x2.8cmWeight:
0.15kgCountry of Origin: :
USADescription:

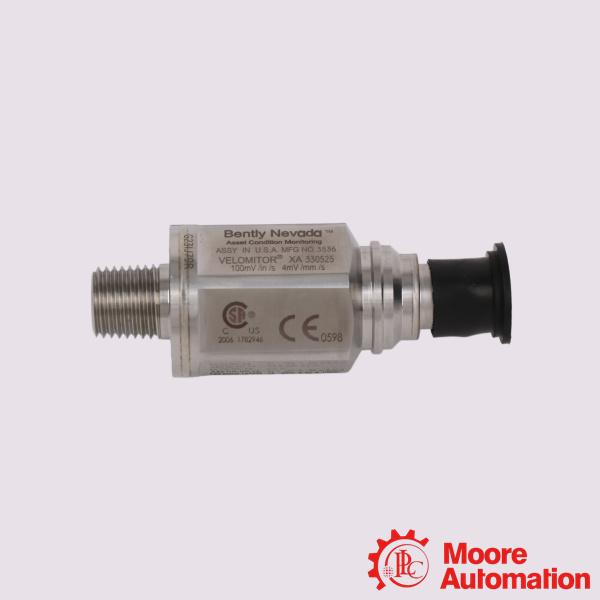

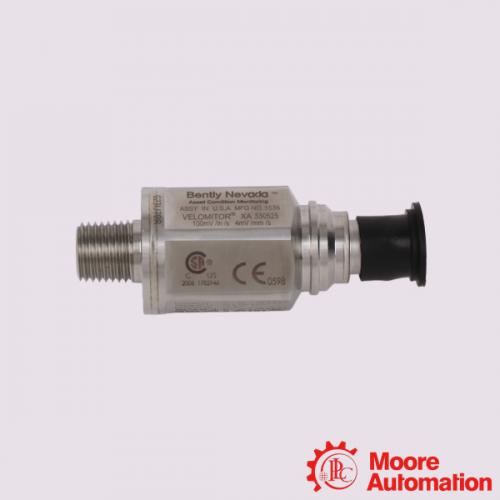

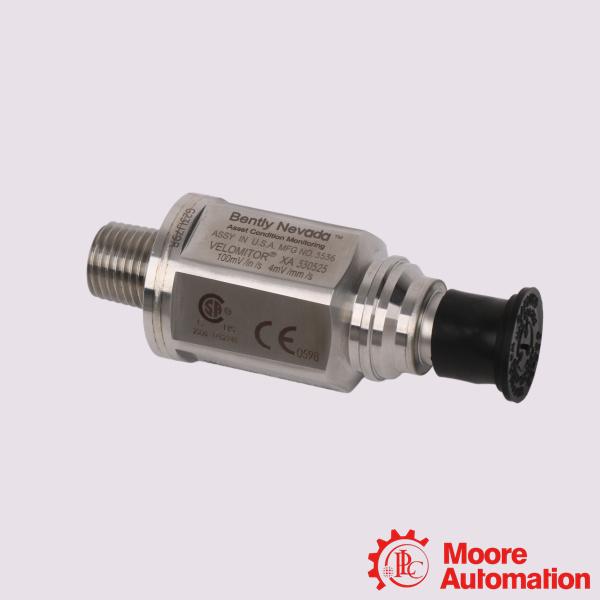

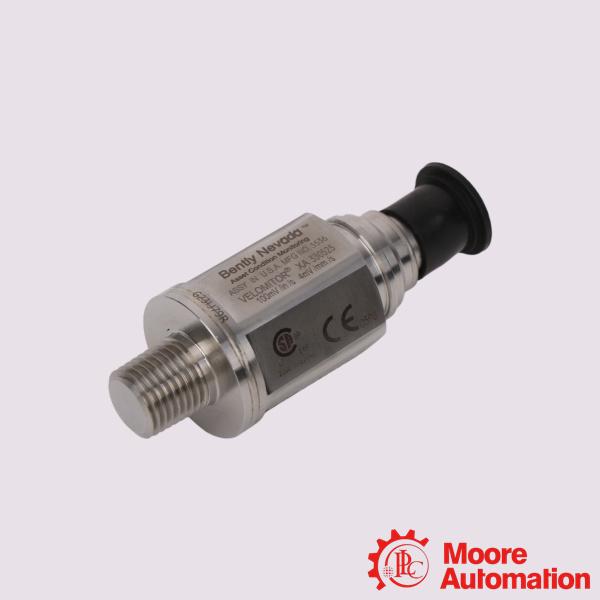

Bently Nevada 330525-10 Velomitor XA Piezo-velocity Sensor
| Mfr. Part Number: |
330525-10 |
| Manufacturer: |
Bently Nevada |
| Description: |
Bently Nevada 330525-10 Velomitor XA Piezo-velocity Sensor |
| Full Description: |
The Bently Nevada 330525-10 Velomitor XA Piezo-velocity Sensor is a ruggedized version of Bently Nevada's 330500 Velomitor Sensor. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330525-10 Velomitor XA Piezo-velocity Sensor is a ruggedized version of Bently Nevada's 330500 Velomitor Sensor. Its 316L stainless steel case and unique, weatherproof connector and cable assembly permit mounting without a housing. The Velomitor XA Sensor cable assembly is suitable for use in moist environments, and the Velomitor XA Sensor design meets the requirements of IP-65 and NEMA 4X dust ratings when properly installed with a mating extension cable.
Application:
Oil & Gas Processing: Deployed on offshore production platforms, refining units, and gas transport pipelines to monitor critical feed pumps and compressors where hazardous area ratings are legally mandated.
Power Generation: Used in thermal and hydroelectric plants on auxiliary balance-of-plant (BOP) equipment like cooling water pumps, draft fans, and localized steam/hydro turbine casings.
Chemical & Petrochemical Manufacturing: Monitors corrosive and moist areas like fertilizer production blocks and polymer processing loops.
Mining & Heavy Metals: Ideal for shaker screens, crushers, and ore-processing centrifuges exposed to massive shock loads and abrasive dust.
Frequently Asked Questions (FAQ)
Q:What kind of power supply does the sensor require?
A:The 330525 is a loop-powered, two-wire system. It requires a DC source voltage between 22 and 30 VDC and a continuous constant current restricted to 2.5 to 6 mA (typically supplied automatically by a [Bently Nevada 3500 Monitoring System](0.5.17, 0.5.28) seismic card).
Q:What is the polarity behavior of the 2-pin connector?
A:The sensor features a 2-pin MIL-C-26482 hermetically sealed connector. When the physical motion of the machine casing moves toward the sensor connector, Pin A becomes positive relative to Pin B.
Q:What is the recommended mounting torque?
A:To guarantee accurate vibration transfer through the base without damaging the internal crystal element, tighten the sensor to a maximum torque of 45 N-m (33 ft-lb).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330525-10 |
|
Sensitivity |
4 mV/mm/s (100 mV/in/s) ±5% at 100 Hz |
|
Frequency Response |
±0.9 dB, 6.0 Hz to 1.0 kHz ±3.0 dB, 4.5 Hz to 2.0 kHz |
|
Velocity Range |
1270 mm/s (50 in/s), peak |
|
Transverse Sensitivity |
<5% of axial sensitivity |
|
Amplitude Linearity |
±2% to 6.0 in/s, peak |
|
Mounted Resonant Frequency |
12 kHz, minimum |
|
Power Requirements |
DC Voltage: -22 to -30 Vdc Bias Current: 2.5 to 6.0 mA |
|
Dynamic Output Impedance |
<2400 Ω |
|
Broadband Noise Floor |
< 0.004 mm/s (160 µin/s |
|
Operating Temperature Range |
-55° C to 121° C (-67° F to 250° F) |
|
Shock Limit |
5000 g’s, peak |
|
Humidity Limit |
100% Relative (hermetically sealed) |
|
