330101-02-12-10-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
110x1.5x1.2cm
Weight:
0.04kg
Country of Origin: :
USA
Description:

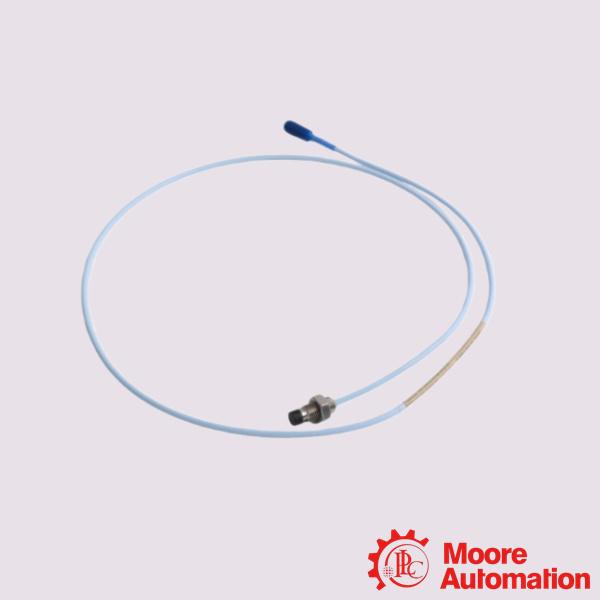

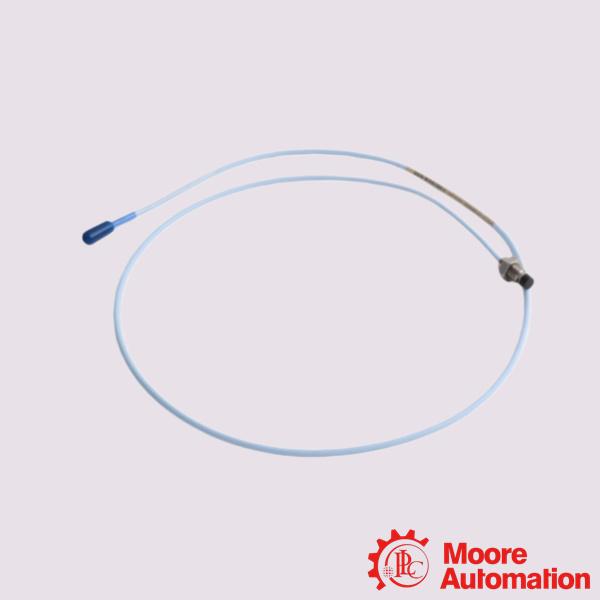

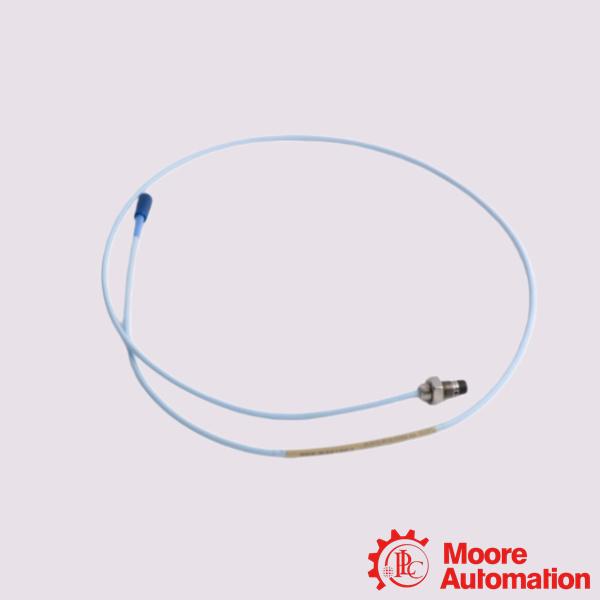

Bently Nevada 330101-02-12-10-02-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330101-02-12-10-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330101-02-12-10-02-05 3300 XL 8 mm Proximity Probes

Full Description:	The Bently Nevada 330101-02-12-10-02-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330101-02-12-10-02-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements

Application:

Steam and Gas Turbines: Monitors continuous axial displacement and radial vibration to protect large-scale turbine shafts from catastrophic rotor-to-stator contact.
Boiler Feedwater Pumps: Captures high-frequency vibration profiles to prevent pump cavitation or bearing breakdown.
Centrifugal Compressors: Delivers real-time position measurements for high-pressure process gas compressors to protect against surge conditions.
Large Electric Induction Motors: Safeguards the core drive motors powering industrial conveyor lines, crushers, and grinders.

Frequently Asked Questions (FAQ)

Q:Can I mix this probe with older, non-XL 3300 series parts?
A:Yes. The 3300 XL 8 mm hardware components are fully interchangeable and backward-compatible with standard, non-XL 3300 5 mm and 8 mm system parts. However, mixing variants restricts the total system performance to the lower limitations of the older non-XL standard.
Q: Do the connectors need tools or tape during installation?
A:No. The triaxial cable features gold-plated ClickLoc connectors that seal tightly with simple finger torque. You will hear an audible "click" once fully locked, and the built-in mechanical detent prevents loose connections caused by machinery vibration.

Q:What is the standard system scale factor?
A:When combined with a matching 3300 XL Proximitor Sensor and appropriate extension cables, it yields a nominal sensitivity of 200 mV/mil (7.87 mV/μm) over a standard 80-mil (2.0 mm) linear range.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330101-02-12-10-02-05
Unthreaded Length Option	0.2 in
Overall Case Length Option	1.2 in.
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Probe Tip Material	Polyphenylene sulfide (PPS)
