330101-00-10-10-12-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
18x18x2cm
Weight:
0.1kg
Country of Origin: :
USA
Description:

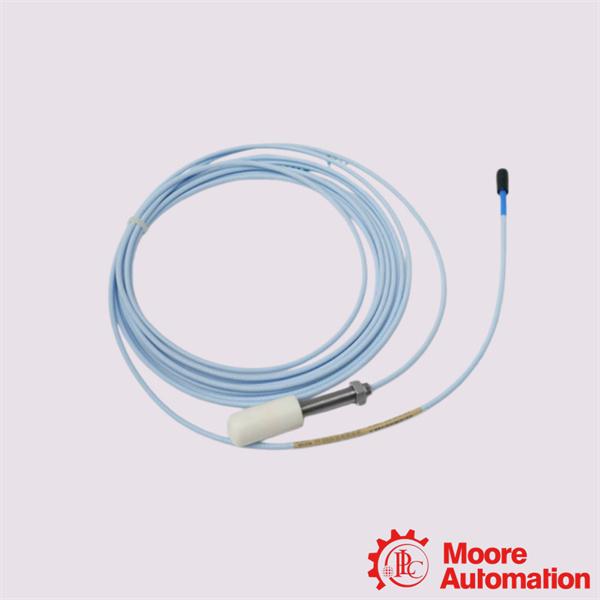

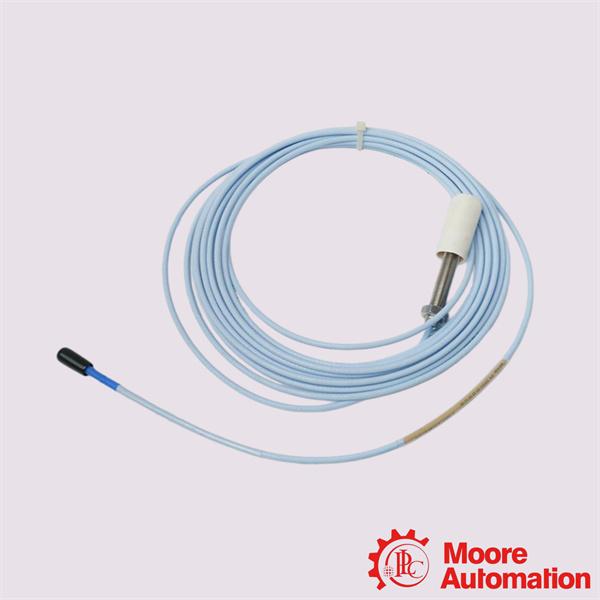

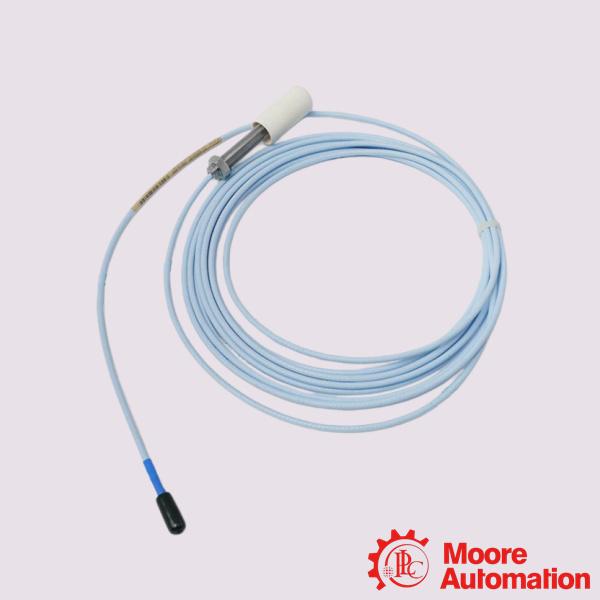

Bently Nevada 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330101-00-10-10-12-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes

Full Description:	The Bently Nevada 330101-00-10-10-12-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330101-00-10-10-12-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements

Application:

Steam & Gas Turbines: Monitors radial vibration, axial thrust positioning, and thermal growth expansion.
Boiler Feedwater Pumps: Provides real-time condition metrics for crucial auxiliary pump lines.
Centrifugal & Axial Compressors: Tracks high-speed rotor stability and safeguards against surge or misalignment conditions.
Industrial Fans & Blowers: Monitors massive air-handling assets in steel mills, cement plants, and exhaust systems.

Frequently Asked Questions (FAQ)

Q:What type of technology does this probe use?
A:It uses eddy current technology. The probe tip houses an internal coil that receives a radio frequency (RF) signal from a companion Proximitor Sensor. This design generates an output voltage directly proportional to the physical gap between the probe tip and a conductive target surface.
Q:Can I use this probe with non-XL 3300 system components?
A:Yes, individual components are physically and electrically interchangeable with older, non-XL 3300 series 5 mm and 8 mm system components. This backward compatibility ensures easy field upgrades without replacing existing infrastructure.

Q:Does this specific configuration have a braided armor jacket?
A:No. The configuration code indicates no armor extension sleeve over the FEP triaxial cable. If your application routes wiring through exposed spaces vulnerable to cutting or heavy abrasive damage, a separate protective conduit or an armored alternative (e.g., model code option -11) is recommended.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330101-00-10-10-12-05
Unthreaded Length Option	0.0 in.
Overall Case Length Option	1.0 in.
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Probe Tip Material	Polyphenylene sulfide (PPS).
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Standard Probe	-52°C to +177°C (-62°F to +350°F)
Operating Temperature	-52°C to +100°C (-62°F to +212°F）
Storage Temperatur	-52°C to +105°C (-62°F to +221°F）
