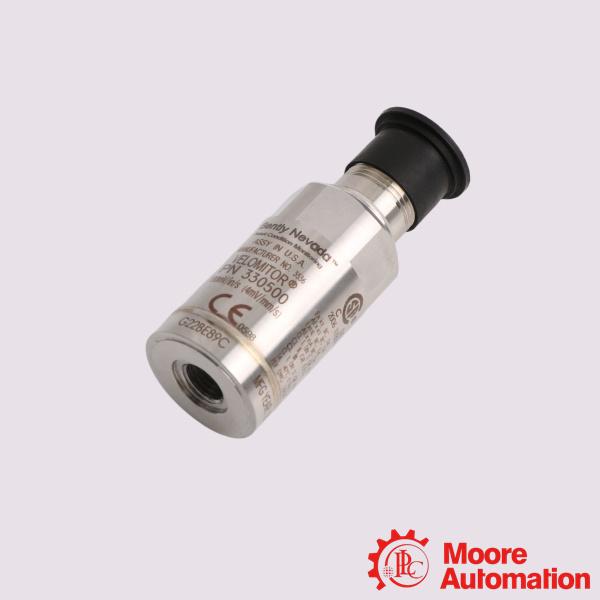

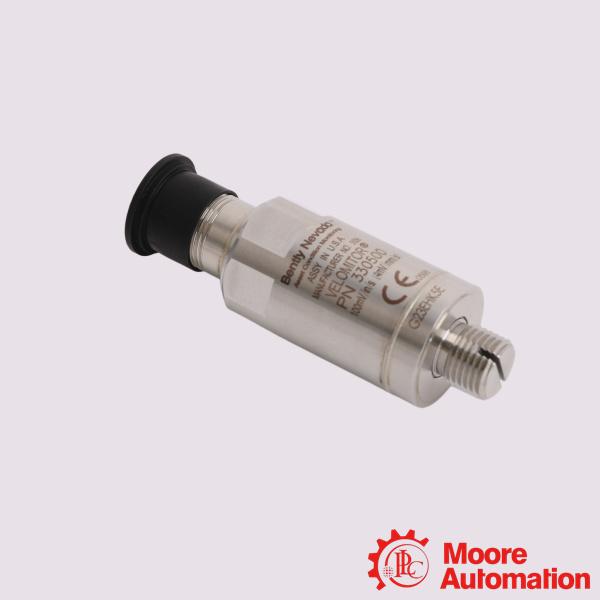

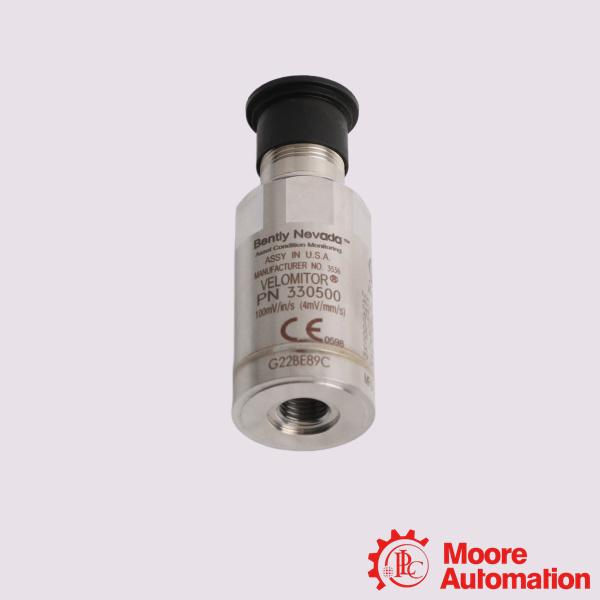

330500-08-04 | Bently Nevada Velomitor Piezo-velocity Sensor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
7.5x2.5x2.5cm
Weight:
0.15kg
Country of Origin: :
USA
Description:
Bently Nevada 330500-08-04 Velomitor Piezo-velocity Sensor

Inquiry now

Mfr. Part Number:	330500-08-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330500-08-04 Velomitor Piezo-velocity Sensor

Full Description:	The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330500-08-04 Velomitor Piezo-velocity Sensor is a specific configuration of the Velomitor piezoelectric velocity sensor, an industrial-grade accelerometer with built-in solid-state electronics for measuring absolute housing or structural vibration.The Bently Nevada™ Velomitor piezoelectric velocity sensor is used to measure absolute (relative to free space) vibration of bearing housings, housings, or structures. The 330500 is a dedicated piezoelectric accelerometer with a solid-state design and integrated electronics. Because the 330500 uses solid-state electronics and has no moving parts, it is free from mechanical aging and wear issues and can be mounted vertically, horizontally, or at any angle.

Application:

Oil & Gas / Petrochemical: Deployed across refineries, offshore platforms, and processing plants due to its ATEX/CSA explosion-proof certifications.
Power Generation: Used on balancing equipment and auxiliary rotating machinery (boilers, feed pumps).
Water & Wastewater: Monitors large submerged or surface water pumps operating under continuous load.
Pulp, Paper, & Mining: Applied to harsh, high-vibration screening, milling, and conveying machinery.

Frequently Asked Questions (FAQ)

Q:What makes a Velomitor different from a traditional moving-coil sensor?

A:Unlike older moving-coil velocity transducers (like the Bently Nevada Seismoprobe series), a Velomitor is a piezoelectric accelerometer with internal integrating electronics. Because it has no moving parts, it does not suffer from mechanical wear, degradation, or stiction over time.
Q:What orientation can the sensor be mounted in?
A:It can be mounted at any orientation angle (vertical, horizontal, or inverted) without any change in sensitivity or calibration. Moving-coil sensors are heavily restricted by mounting angles due to gravity forces acting on the internal spring-mass assembly.

Q:What is the maximum recommended cable length?
A:The sensor can drive a maximum cable length of 305 meters (1,000 feet) of approved Bently Nevada cable (such as Part Number 175873) without any signal degradation.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330500-08-04
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-14% to +7.5% typical over the operating temperature range
Velocity Range	1270 mm/s (50 in/s) peak
Transverse Sensitivity	Less than 5% of sensitivity
Amplitude Linearity	±2% to 152 mm/s (6 in/s) peak
Dynamic Output Impedance	Less than 2400 Ω
Grounding	Case isolated
Operating Temperature Range	-55°C to 121°C (-67°F to 250°F)
Shock Survivability	5,000 g peak, maximum
Mounting Thread Adaptor Option	1/2 – 13 UNC
Agency Approval Option	Multiple approvals (CSA, ATEX)
