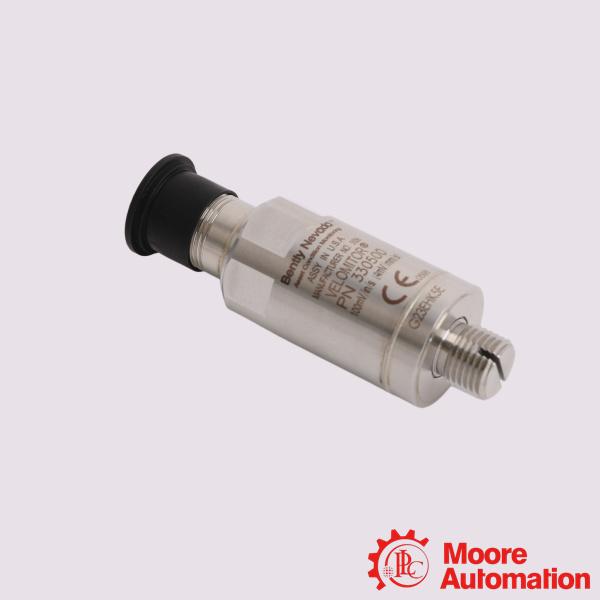

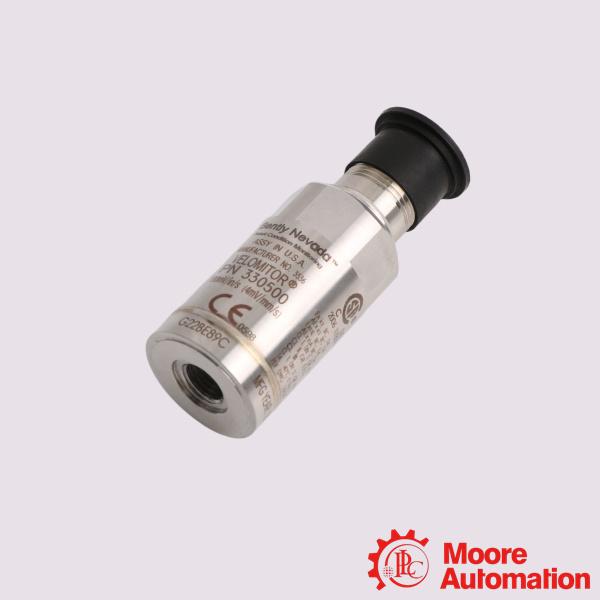

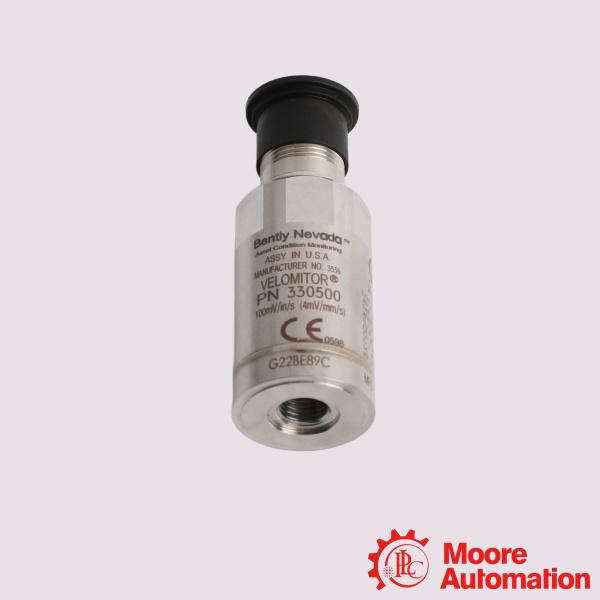

330500-05-02 | Bently Nevada Velomitor Piezo-velocity Sensor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
7.6x2.4x2.4cm
Weight:
0.15kg
Country of Origin: :
USA
Description:
Bently Nevada 330500-05-02 Velomitor Piezo-velocity Sensor

Inquiry now

Mfr. Part Number:	330500-05-02

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330500-05-02 Velomitor Piezo-velocity Sensor

Full Description:	The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330500-05-02 is a rugged Velomitor piezoelectric velocity sensor designed for absolute vibration monitoring in rotating and reciprocating machinery. Bently Nevada™ Velomitor piezoelectric velocity sensors are used to measure absolute vibration (relative to free space) and are suitable for monitoring vibrations in bearing housings, casings, or structures. The 330500 is a dedicated piezoelectric accelerometer with a solid-state design and integrated electronics. Due to its solid-state electronics and lack of moving parts, this sensor is free from mechanical degradation and wear and can be mounted vertically, horizontally, or at any angle.

Application:

Oil & Gas (Upstream & Downstream): Deployed on offshore drilling platforms, refineries, and petrochemical processing plants. It monitors highly critical infrastructure operating continuously within volatile gas atmospheres.
Power Generation: Utilized in both conventional fossil fuel plants and renewable installations to oversee heavy power generation trains
Chemical Processing: Standardized for plants handling corrosive and flammable compounds where ATEX zone integrity cannot be compromised.
Water & Wastewater Treatment: Placed on high-capacity transport infrastructure subject to moisture, demanding long cable runs up to 305 meters (1,000 feet) back to a central PLC

Frequently Asked Questions (FAQ)

Q:What is the recommended mounting torque?

A:To prevent sensor damage and ensure a linear frequency transmission response, it must be torqued tightly to between 32 to 46 kg-cm (24 to 40 in-lb).
Q:What is the maximum recommended cable length?
A:Yes, the solid-state design allows installation at any orientation (vertical, horizontal, or oblique) without losing calibration or performance.

Q:What mating connector does it require?
A:It uses an integrated 2-pin MIL-C-5015 hermetically sealed connector built into a 316L stainless steel shell. When wiring, Pin A becomes positive with respect to Pin B when the casing moves toward the connector.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330500-05-02
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-14% to +7.5% typical over the operating temperature range
Velocity Range	1270 mm/s (50 in/s) peak
Transverse Sensitivity	Less than 5% of sensitivity
Amplitude Linearity	±2% to 152 mm/s (6 in/s) peak
Dynamic Output Impedance	Less than 2400 Ω
Grounding	Case isolated
Operating Temperature Range	-55°C to 121°C (-67°F to 250°F)
Shock Survivability	5,000 g peak, maximum
Mounting Thread Adaptor Option	Unavailable for 330500
Agency Approval Option	ATEX (European)
