in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.5x2.5x8cmWeight:
0.15kgCountry of Origin: :
USADescription:

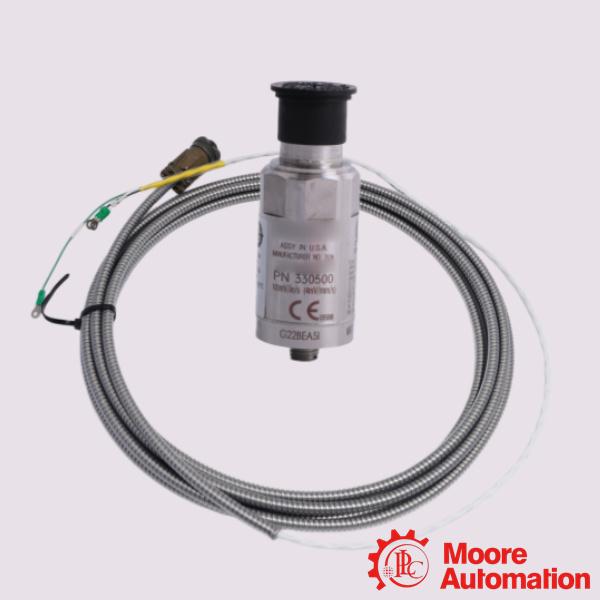

Bently Nevada 330500-02-CN 84661-16 Velomitor Piezo-velocity Sensor with Interconnection Cables
| Mfr. Part Number: |
330500-02-CN 84661-16 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

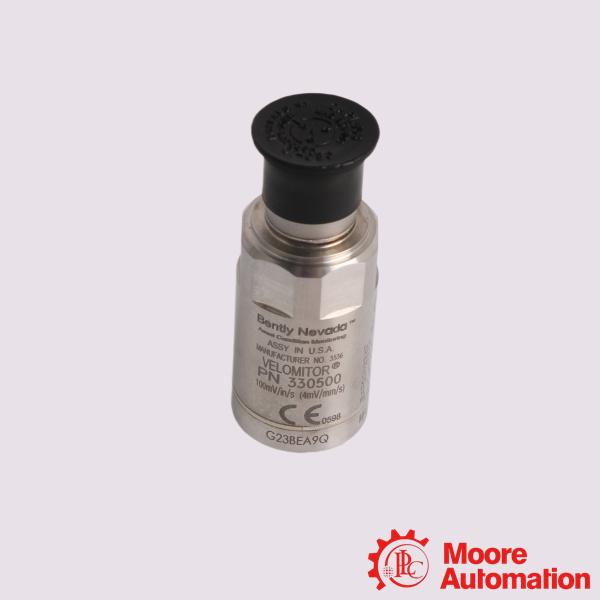

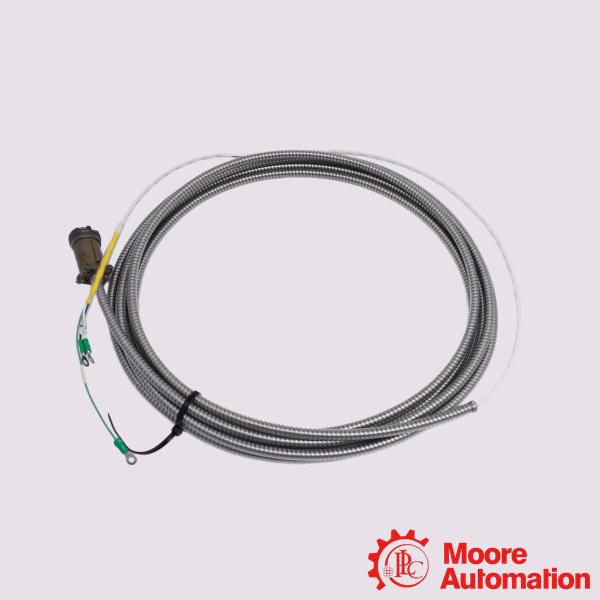

The Bently Nevada 330500-02-CN Velomitor Piezo-velocity Sensor paired with the 84661-16 Interconnect Cable is an industry-standard hardware combination used for continuous structural vibration and casing monitoring of heavy rotating machinery. Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Application:
Oil & Gas Facilities: Used to monitor casing and structural vibration on large centrifugal compressors, heavy-duty pumps, and gas turbines operating in explosive processing zones where stringent explosion-proof safety certification is required.
Power Generation Plants: Deployed on the outer bearing housings and machine casings of steam turbines, gas turbines, and large generators to detect rotor-generated faults transmitted through the machine frame.
Petrochemical & Chemical Processing: Applied to critical mixers, agitators, and high-pressure pumps dealing with volatile chemical compounds.
Balance-of-Plant (BoP) Assets: Used across secondary industrial infrastructure to monitor large induction motors, cooling tower fans, exhaust blowers, and gearboxes where using standard internal proximity probes is impractical.
Frequently Asked Questions (FAQ)
Q:Can this sensor measure displacement directly?
A:No. The sensor outputs a signal proportional to velocity. While the signal can be integrated by a monitoring framework to estimate displacement, doing so can amplify electrical noise and lead to data degradation.
Q:What is the maximum mounting torque?
A:Torque Limit: The maximum allowable mounting torque is 46 kg⋅cm (40 in⋅lb). Exceeding this can damage the sensor casing or thread adapter.
Q:Can the sensor be mounted at an angle?
A:Yes. Because it is an integrating piezo-accelerometer with solid-state electronics and no moving internal parts, it suffers no mechanical degradation based on orientation. It can be mounted vertically, horizontally, or at any angle.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330500-02-CN 84661-16 |
|
Mounting Thread Adaptor Option |
M8 x 1 |
|
Standard Cable Lengths |
16 ft |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5%. |
|
Velocity Range |
1270 mm/s (50 in/s) peak. |
|
Transverse Sensitivity |
Less than 5% of sensitivity. |
|
Dynamic Output Impedance |
Less than 2400 Ω |
|
Operating Temperature Range |
-55°C to 121°C (-67°F to 250°F) |
|
Shock Survivability |
5,000 g peak, maximum |
|
Output Bias Voltage |
-12 ±3.0 VDC, over temperature referenced to Pin A. |
|
