in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
,30x30x3cmWeight:
0.66kgCountry of Origin: :
USADescription:

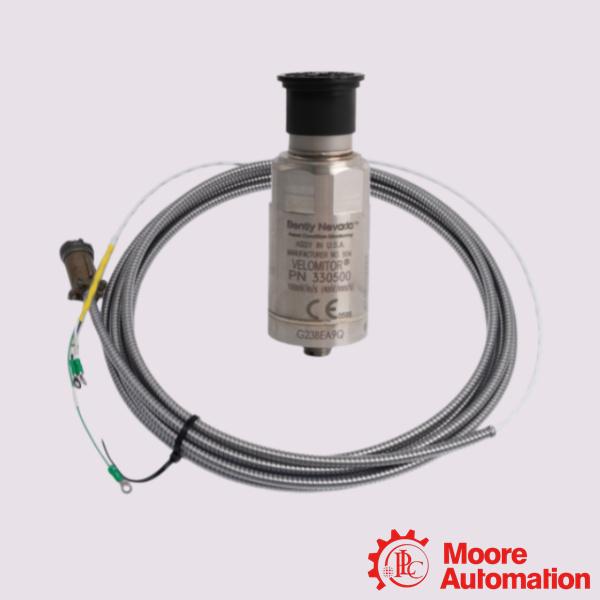

Bently Nevada 330500-02-05 84661-17 Velomitor Piezo-velocity Sensor with Interconnection Cables
| Mfr. Part Number: |
330500-02-05 84661-17 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

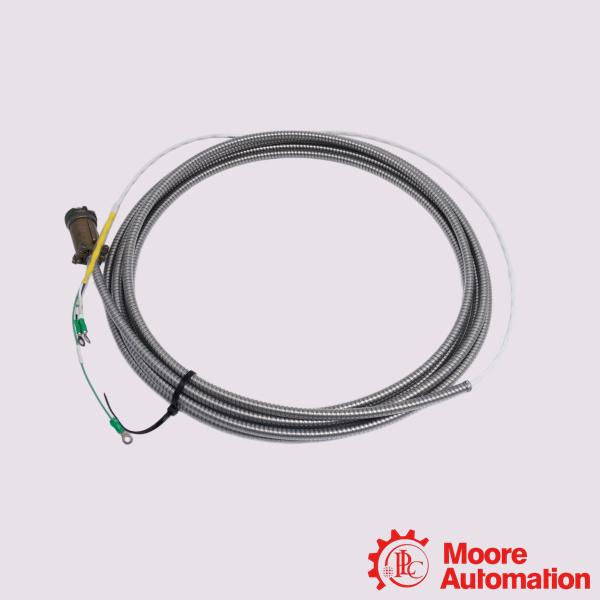

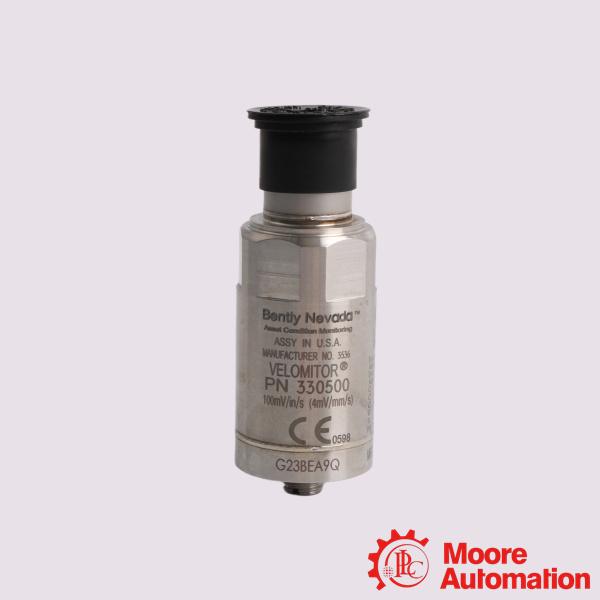

The Bently Nevada 330500-02-05 is a specialized Velomitor Piezo-Velocity Sensor paired with the 84661-17, which is a 17-foot stainless steel armored interconnect cable. Together, this system measures absolute casing vibration on industrial machinery to prevent catastrophic mechanical failure.Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Application:
Oil and Gas / Petrochemical: Used on critical process pumps, turbines, and compressors in refineries and offshore platforms.
Power Generation: Installed on auxiliary plant machinery (boiler feed pumps, draft fans) in fossil fuel and Nuclear Power Plants, as this specific sensor variant features a housing highly resistant to gamma radiation.
Water & Wastewater Treatment: Continuous monitoring of large-scale water distribution and effluent pumps.
Pulp, Paper, & Mining: Tracking machinery health in areas exposed to high moisture, heavy dust, and structural vibration.
Frequently Asked Questions (FAQ)
Q:What is the function of the internal electronics in the 330500?
A:The sensor embeds solid-state electronics that automatically integrate the raw piezoelectric acceleration signal into a velocity output. Because it contains no moving mechanical parts, it does not suffer from wear or orientation degradation and can be mounted at any angle.
Q:Why choose the 84661 armored cable option over standard cabling?
A:The stainless steel armor protects the internal 22 AWG twisted wire from physical pinching, crushing, environmental abrasion, and rodent damage. It eliminates the strict requirement for separate external conduit runs in vulnerable open-air configurations.
Q:What monitors are compatible with this setup?
A:The system interfaces directly via terminal lugs with standard machinery protection systems, including the Bently Nevada 3500 Series and the compact 2300 Series vibration monitors.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330500-02-05 84661-17 |
|
Mounting Thread Adaptor Option |
M8 x 1 |
|
Standard Cable Lengths |
17 ft |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5%. |
|
Velocity Range |
1270 mm/s (50 in/s) peak. |
|
Transverse Sensitivity |
Less than 5% of sensitivity. |
|
Dynamic Output Impedance |
Less than 2400 Ω |
|
Operating Temperature Range |
-55°C to 121°C (-67°F to 250°F) |
|
Shock Survivability |
5,000 g peak, maximum |
|
Output Bias Voltage |
-12 ±3.0 VDC, over temperature referenced to Pin A. |
|
