in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
7.6x2.4x2.4cmWeight:
0.15kgCountry of Origin: :
USADescription:

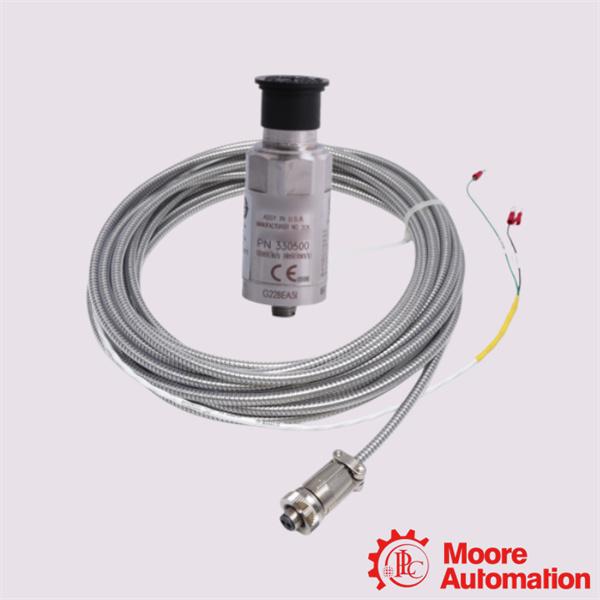

Bently Nevada 330500-02-00 84661-26 Velomitor Piezo-velocity Sensor with Interconnection Cables
| Mfr. Part Number: |
330500-02-00 84661-26 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

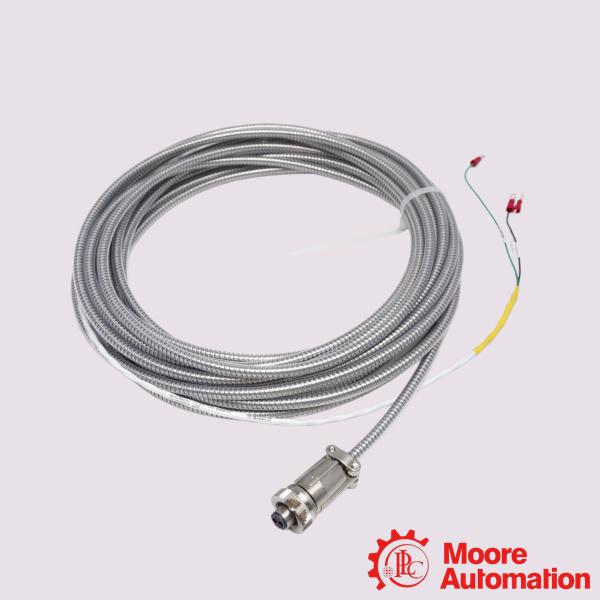

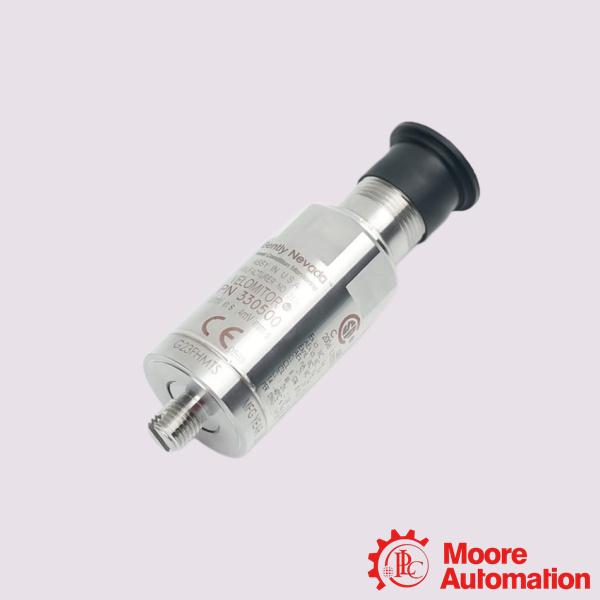

The Bently Nevada 330500-02-00 is a rugged Velomitor Piezo velocity Sensor designed to measure absolute casing vibration in rotating machinery. It is paired with the Bently Nevada 84661-26, which is a matching 26-foot armored interconnect cable featuring a moisture-resistant female connector and stainless steel armor protection.Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.
Application:
Gas & Steam Turbines: Tracks absolute bearing housing or casing vibration to prevent catastrophic catastrophic rotor instabilities.
Industrial Alternators & Generators: Monitors structural deck or casing dynamics under high electrical loads.
Centrifugal & Axial Compressors: Vital for gas processing plants to safeguard large-scale compression trains.
Large Water Pumps: Deployed on massive municipal intake, distribution, and effluent pumps to track mechanical degradation or cavitation-induced casing stress.
Frequently Asked Questions (FAQ)
Q:Why use a Velomitor instead of a standard accelerometer?
A:The Velomitor embeds an internal solid-state integration circuit. This means it processes raw acceleration into a velocity-proportional voltage output automatically, removing the need for manual or external tracking system math conversion integration.
Q:Can sudden mechanical shocks trigger false alarms?
A:Yes. A hard physical impact on the machinery casing causes the internal piezoelectric crystal to generate a sudden low-frequency spike. If your monitoring relays are set to respond instantly, this false indicator can trip safety systems unnecessarily. Ensure you configure an appropriate time delay on downstream alarms.
Q:What is the maximum torque allowed during installation?
A:Do not exceed 46 kg-cm (40 in-lb) of tightening torque when securing the M8 thread base adapter to the casing body. Over-tightening will warp the internal crystal mount structure and ruin sensor calibration accuracy.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330500-02-00 84661-26 |
|
Mounting Thread Adaptor Option |
M8 x 1 |
|
Standard Cable Lengths |
26 ft |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5%. |
|
Velocity Range |
1270 mm/s (50 in/s) peak. |
|
Transverse Sensitivity |
Less than 5% of sensitivity. |
|
Dynamic Output Impedance |
Less than 2400 Ω |
|
Operating Temperature Range |
-55°C to 121°C (-67°F to 250°F) |
|
Shock Survivability |
5,000 g peak, maximum |
|
Output Bias Voltage |
-12 ±3.0 VDC, over temperature referenced to Pin A. |
|
Agency Approval Option |
Not required |
|
