in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
6.8x2.4x2.4cmWeight:
0.12kgCountry of Origin: :
USADescription:

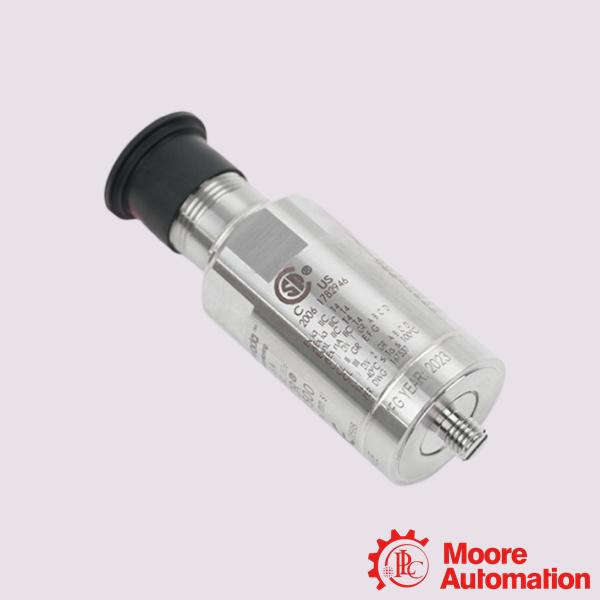

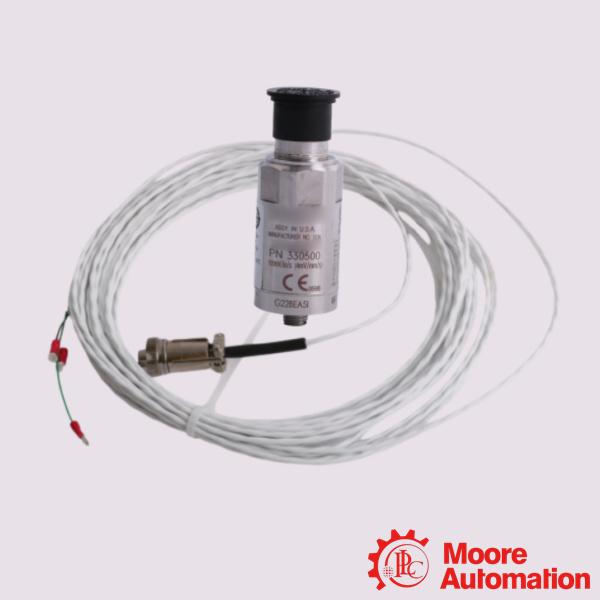

Bently Nevada 330500-02-00 9571-34 Velomitor Piezo-velocity Sensor with Interconnection Cables
| Mfr. Part Number: |
330500-02-00 9571-34 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

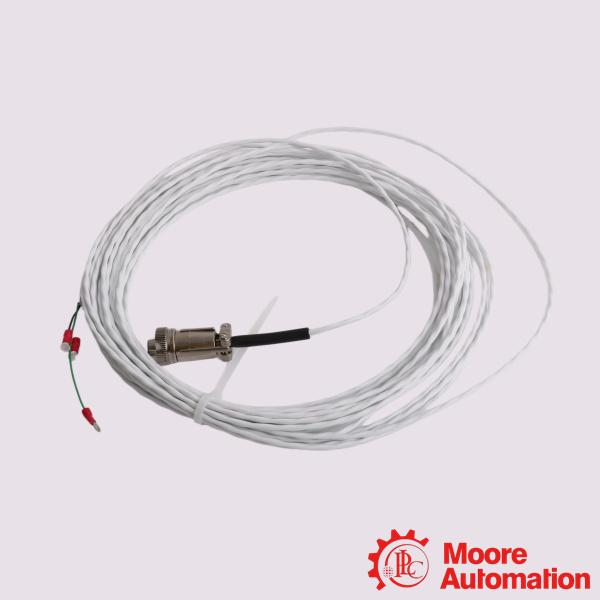

The Bently Nevada 330500-02-00 is a rugged Velomitor Piezo-Velocity Sensor paired with the 9571-34 custom two-conductor twisted, shielded 34-foot interconnect cable. This combination is primarily used to measure absolute casing vibration on industrial rotating machinery.Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.
Application:
Power Generation: Monitoring structural shell and bearing housings on gas turbines, steam turbines, and industrial generators to isolate unbalance or rotor-transmitted faults.
Oil & Gas Facilities: Providing continuous, rugged casing monitoring for large centrifugal/reciprocal compressors and heavy-duty process pumps in hazardous zones.
Petrochemical & Chemical Processing: Monitoring high-stakes machinery where bearing or seal failures could trigger catastrophic hydrocarbon releases.
Balance-of-Plant (BoP) Assets: Tracking secondary but vital equipment across multiple industries, including cooling tower fans, large industrial blowers, centrifuges, and electric motors.
Frequently Asked Questions (FAQ)
Q:Can I use the 9571-34 cable inside a 21128 housing?
A:No, standard 9571 cables are not designed for use inside the 21128 Velocity Transducer Housing.
Q:Why is my sensor outputting random low-frequency spikes?
A:Sudden mechanical impacts can shock the internal piezoelectric crystal. This creates a false low-frequency signal that might accidentally trip alarm or danger relays.
Q:Which monitoring systems are compatible?
A:It directly interfaces with Bently Nevada machinery protection systems, including the 3500/42M, 1900/65A, and 2300/20 vibration monitors.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330500-02-00 9571-34 |
|
Mounting Thread Adaptor Option |
M8 x 1 |
|
Standard Cable Lengths |
34 ft |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5%. |
|
Velocity Range |
1270 mm/s (50 in/s) peak. |
|
Transverse Sensitivity |
Less than 5% of sensitivity. |
|
Dynamic Output Impedance |
Less than 2400 Ω |
|
Operating Temperature Range |
-55°C to 121°C (-67°F to 250°F) |
|
Shock Survivability |
5,000 g peak, maximum |
|
Output Bias Voltage |
-12 ±3.0 VDC, over temperature referenced to Pin A. |
|
Agency Approval Option |
Not required |
|
