in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
7.5x2.5x2.5cmWeight:
0.15kgCountry of Origin: :
USADescription:

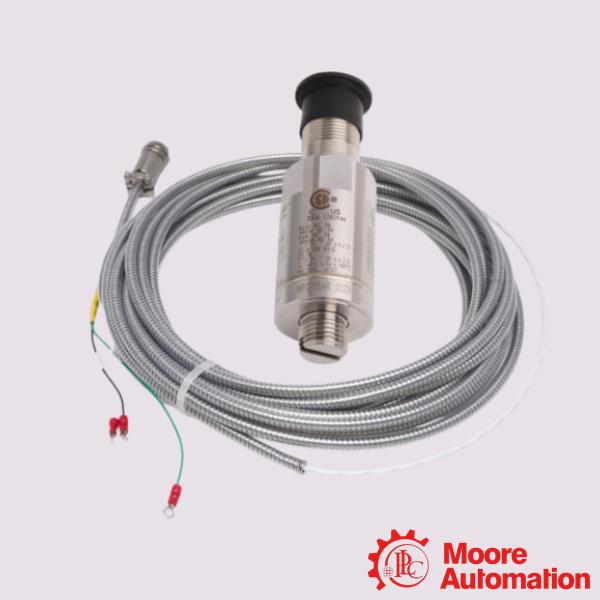

Bently Nevada 330500-01-CN 84661-35 Velomitor Piezo-velocity Sensor with Interconnection Cables
| Mfr. Part Number: |
330500-01-CN 84661-35 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

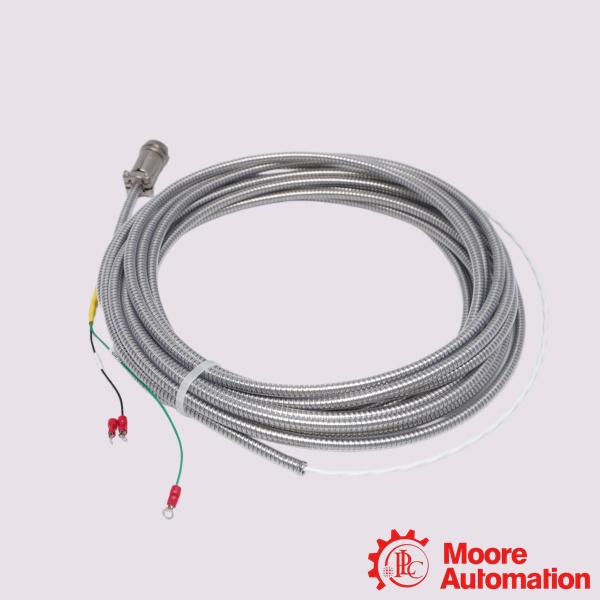

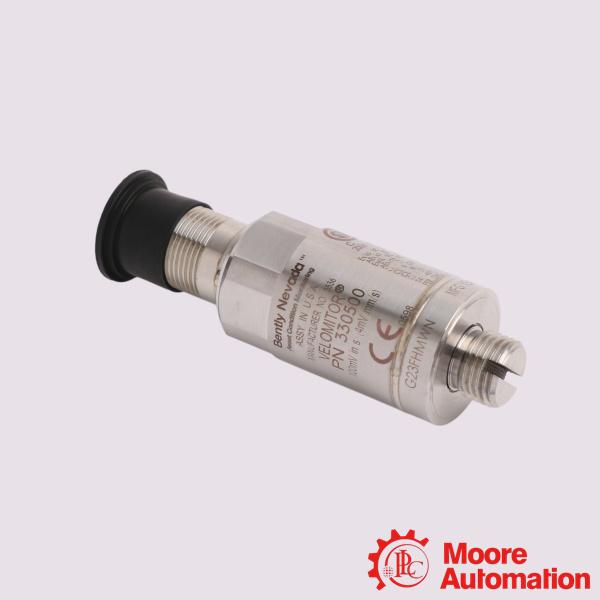

The Bently Nevada 330500-01-CN is an industry-standard Velomitor Piezo-Velocity Sensor, paired here with the 84661-35, which is a 35-foot standard armored interconnect cable. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.
Application:
Oil & Gas Refineries: Monitoring centrifugal compressors, heavy-duty pumps, and gas turbines in explosive hydrocarbon environments.
Petrochemical & Chemical Processing: Tracking vibration on agitators, mixers, and expanders where corrosive gases or flammable vapors dictate ATEX/NEPSI ratings.
Power Generation Plants: Measuring absolute bearing housing vibration on steam turbines, gas turbines, generators, and cooling tower fans.
Water & Wastewater Treatment: Assessing heavy-duty water pumps and large aeration blowers often exposed to high moisture.
Frequently Asked Questions (FAQ)
Q:What does this sensor actually measure?
A:Unlike traditional moving-coil velocity transducers that experience mechanical wear, the 330500 is a solid-state piezoelectric accelerometer with embedded integrating electronics. It naturally senses acceleration but converts the internal signal to output an absolute vibration velocity measurement.
Q:What is the electrical output and sensitivity?
A:The sensor provides a standardized scale factor of 100 mV/in/s (3.94 mV/mm/s) ±5%. It utilizes a 2-pin Mil-C-5015 hermetically-sealed connector interface.
Q:Can I mount the 330500 at an angle?
A:Yes. Because it contains no moving parts to sag or degrade mechanically, you can mount it vertically, horizontally, or at any angle of orientation without losing accuracy or damaging the internal components.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330500-01-CN 84661-35 |
|
Mounting Thread Adaptor Option |
1/2 - 20 UNF |
|
Standard Cable Lengths |
35 ft |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5%. |
|
Velocity Range |
1270 mm/s (50 in/s) peak. |
|
Transverse Sensitivity |
Less than 5% of sensitivity. |
|
Dynamic Output Impedance |
Less than 2400 Ω |
|
Operating Temperature Range |
-55°C to 121°C (-67°F to 250°F) |
|
Shock Survivability |
5,000 g peak, maximum |
|
Output Bias Voltage |
-12 ±3.0 VDC, over temperature referenced to Pin A. |
|
