Brand/ Manufacturer:
Bently NevadaDimensions:
7.2x2.2x2.5cmWeight:
0.14kgCountry of Origin: :
USADescription:

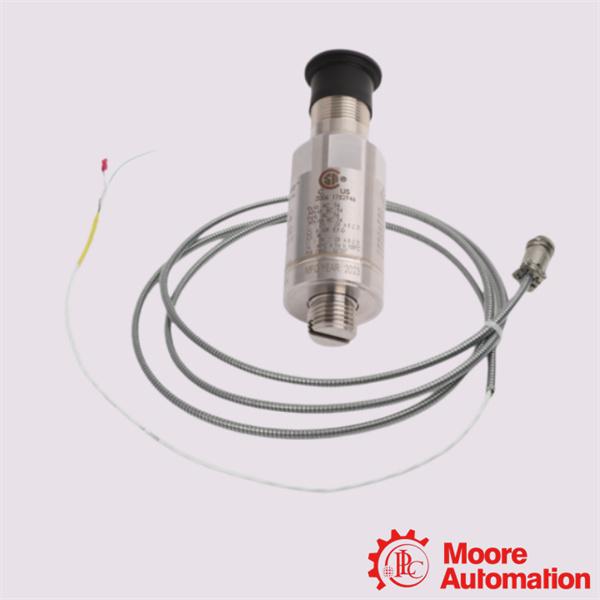

Bently Nevada 330500-01-00 84661-48 Velomitor Piezo-velocity Sensor with Interconnection Cables
| Mfr. Part Number: |
330500-01-00 84661-48 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

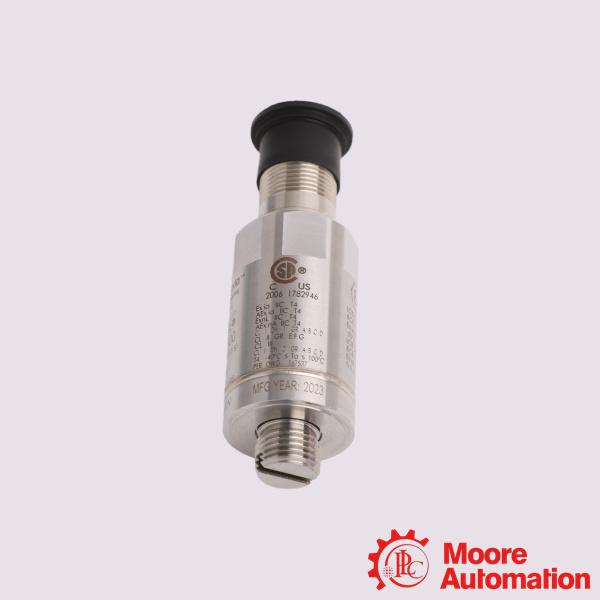

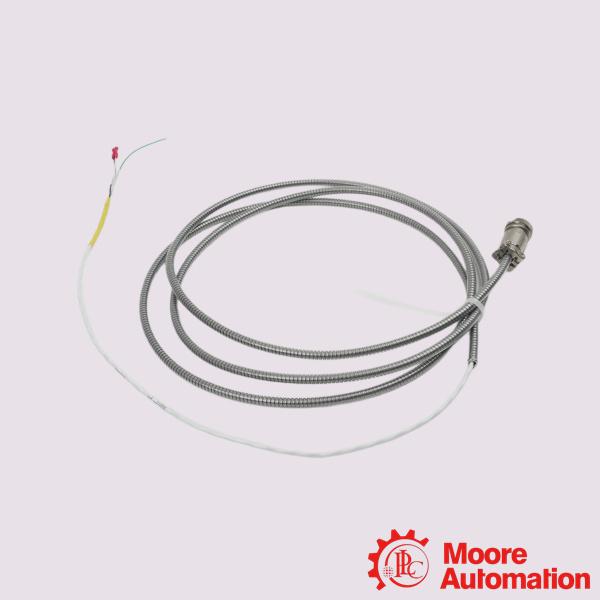

The Bently Nevada 330500-01-00 is a industrial-grade Velomitor Piezo-Velocity Sensor utilized for measuring absolute vibration on casing, structures, or bearing housings. The secondary code 84661-48 designates the matching heavy-duty, armored, or standard interconnect cable assembly often paired with this specific sensor family.Bently Nevada Velomitor Piezo-velocity Sensors to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Application:
Power Generation: Tracks vibration on steam turbines, gas turbines, and large industrial generators.
Oil & Gas: Monitors critical machinery like centrifugal compressors, reciprocating pumps, and turboexpanders.
Water & Wastewater: Measures structural and casing vibration on massive water distribution pumps.
Pulp, Paper & Mining: Ideal for harsh environments monitoring heavy-duty fans, blowers, and conveyors.
Frequently Asked Questions (FAQ)
Q:Can it be mounted horizontally?
A:Yes. Because it uses a solid-state piezoelectric design with no moving internal parts, it can be mounted at any physical angle without wear or loss of accuracy.
Q:What is the recommended mounting torque?
A:Installers must torque the hardware between 24 to 40 in-lb (32 to 46 kg-cm).
Q:What is the maximum allowed cable length?
A:Signals travel clearly across a maximum distance of 305 meters (1,000 feet) without degrading.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330500-01-00 84661-48 |
|
Mounting Thread Adaptor Option |
1/2 - 20 UNF |
|
Standard Cable Lengths |
48 ft |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5%. |
|
Velocity Range |
1270 mm/s (50 in/s) peak. |
|
Transverse Sensitivity |
Less than 5% of sensitivity. |
|
Dynamic Output Impedance |
Less than 2400 Ω |
|
Operating Temperature Range |
-55°C to 121°C (-67°F to 250°F) |
|
Shock Survivability |
5,000 g peak, maximum |
|
Output Bias Voltage |
-12 ±3.0 VDC, over temperature referenced to Pin A. |
|
Agency Approval Option |
Not required |
|
