in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
7.6x2.4x2.4cmWeight:
0.15kgCountry of Origin: :
USADescription:

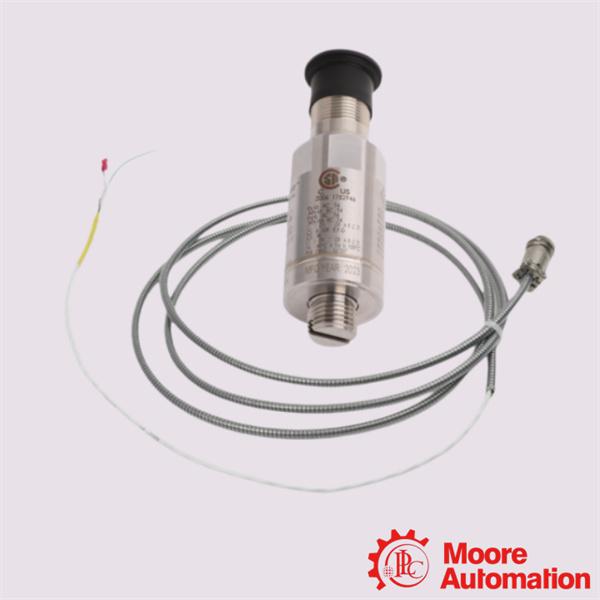

Bently Nevada 330500-00-CN 9571-06 Velomitor Piezo-velocity Sensor with Interconnection Cables
| Mfr. Part Number: |
330500-00-CN 9571-06 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

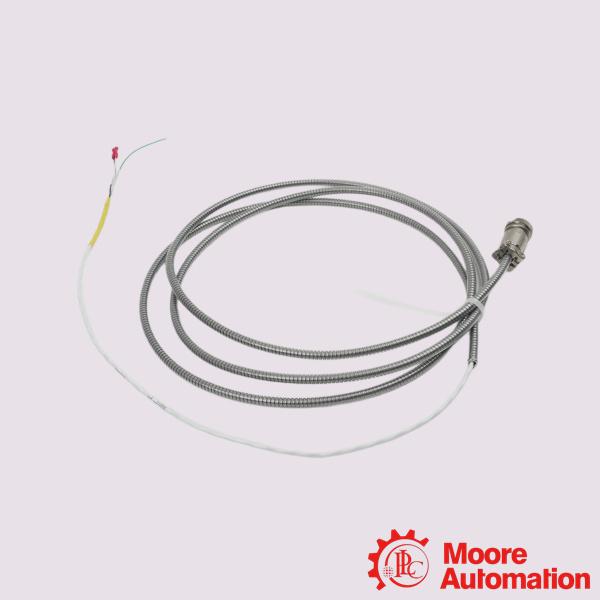

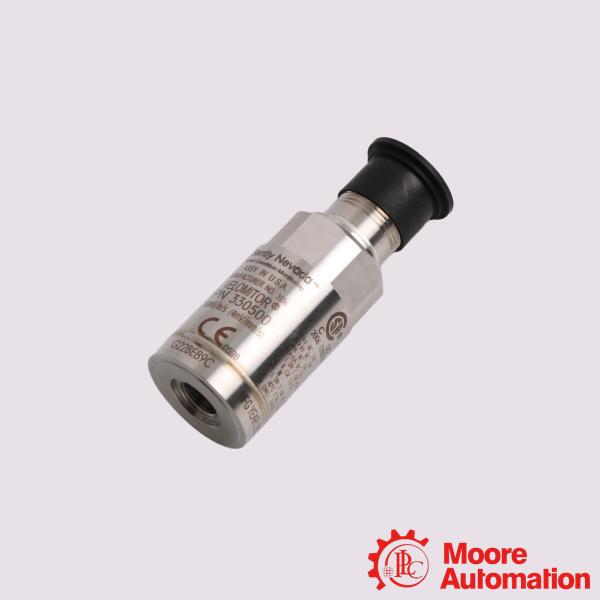

The Bently Nevada 330500-00-CN is an explosion-proof Velomitor Piezo-Velocity Sensor to measure absolute casing and bearing housing vibration. It is frequently paired with the 9571-06 shielded sensor cable (5-meter length) to transmit signals safely back to monitoring systems.Bently Nevada Velomitor Piezo-velocity Sensors to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation
Application:
Oil & Gas Refineries: Used on large centrifugal pumps, fans, and compressors operating in hazardous, explosion-prone environments where CN/Ex explosion-proof ratings are mandated.
Power Generation: Deployed on gas and steam turbines, cooling tower fans, and water pumps to continuous track structural and casing health.
Petrochemical & Chemical Processing: Essential for monitoring heavy-duty mixers, agitators, and process machinery that handle aggressive or volatile compounds.
Water & Wastewater Management: Ideal for large-scale water treatment pump stations and aeration blowers requiring robust casing vibration telemetry.
Frequently Asked Questions (FAQ)
Q:What exactly does this sensor measure?
A:It measures casing vibration velocity rather than relative shaft displacement. It is ideal for monitoring bearing housings, industrial pumps, gearboxes, and large fans where structural vibration indicates mechanical degradation.
Q:Can the 330500 sensor be mounted at any angle?
A:Yes. Traditional velocity sensors rely on a moving coil that suffers from mechanical wear if tilted. Because this unit uses solid-state piezo-electronics with no moving parts, you can mount it vertically, horizontally, or at any specific angle without losing performance.
Q:Is the 9571-06 cable required, or can I use a standard 2-pin cable?
A:While the sensor head utilizes a 2-pin top connector, utilizing a dedicated, manufacturer-specified cable like the 9571-06 flat shielded cable is critical to prevent electromagnetic interference (EMI) from clouding your vibration readings. This ensures the raw signal remains clean over long distances to your 3500 monitoring system rack.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330500-00-CN 9571-06 |
|
Mounting Thread Adaptor Option |
No adapter |
|
Standard Cable Lengths |
6 ft |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5%. |
|
Velocity Range |
1270 mm/s (50 in/s) peak. |
|
Transverse Sensitivity |
Less than 5% of sensitivity. |
|
Dynamic Output Impedance |
Less than 2400 Ω |
|
Operating Temperature Range |
-55°C to 121°C (-67°F to 250°F) |
|
Shock Survivability |
5,000 g peak, maximum |
|
Output Bias Voltage |
-12 ±3.0 VDC, over temperature referenced to Pin A. |
|
