in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
27x25x3cmWeight:
0.15kgCountry of Origin: :
USADescription:

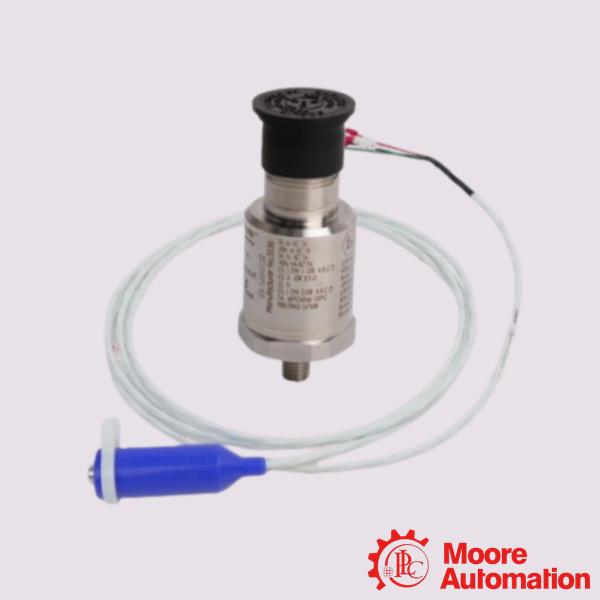

Bently Nevada 330400-02-CN 16925-08 Accelerometer
| Mfr. Part Number: |
330400-02-CN 16925-08 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

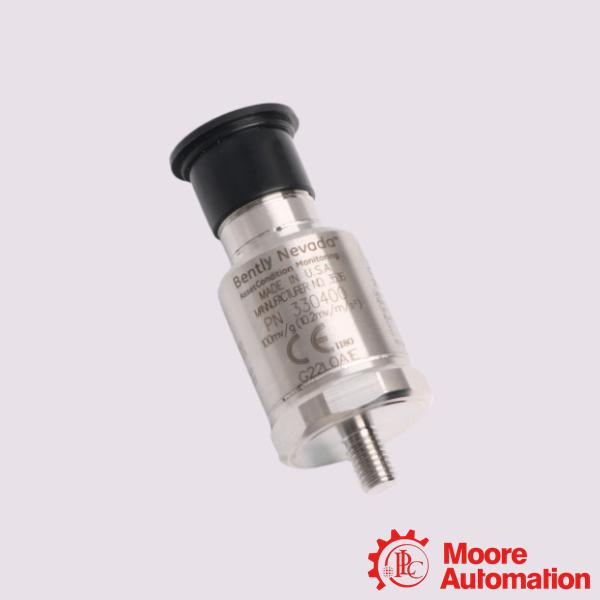

The Bently Nevada 330400-02-CN Accelerometer paired with the 16925-08 Interconnect Cable for critical machinery casing vibration monitoring and gear mesh monitoring in high-stakes heavy industrial environments.These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. It provides an amplitude range of 50 g peak and a sensitivity of 100 mV/g. The 330425 is identical except it provides a larger amplitude range (75 g peak) and a sensitivity of 25 mV/g.
Application:
Power Generation: Monitors casing vibration and bearing degradation on steam turbines, gas turbines, heavy-duty generators, and massive cooling tower fans.
Oil & Gas (Onshore/Offshore): Installed on remote offshore rig sensor networks, subsea extraction systems, and large natural gas pipeline compressors.
Mining & Heavy Industry: Monitors heavy-duty conveyor drives, rock-crushing mills, massive process fans, and high-torque gearboxes prone to structural fatigue.
Petrochemical & Refining: Protects multi-stage process compressors, high-pressure pumps, and expanders from failing due to mechanical unbalance, misalignment, or blade defects.
Frequently Asked Questions (FAQ)
Q:Where and how should the sensor be mounted?
A:Mount the accelerometer directly onto a rigid surface like a machine casing or bearing housing. For industrial compliance, use an approved mounting base and conduit kit to satisfy API 670 requirements. Ensure proper thread engagement with the M8 stud option.

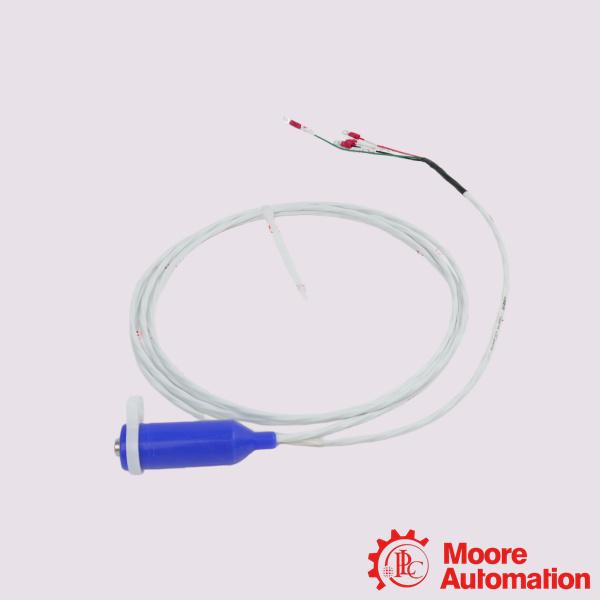

Q:Why is a shielded cable (16925-08) required?
A:The 3-conductor shielded architecture protects the tiny voltage transmissions (100 mV/g) from electro-magnetic interference (EMI) and industrial noise. This preserves signal integrity over the 8-foot distance to the terminal block.
Q:What monitoring systems is this assembly compatible with?
A:It integrates directly with the Bently Nevada 3500 Series Machinery Protection System and other standard machinery monitoring modules.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330400-02-CN 16925-08 |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ±5% |
|
Amplitude Linearity |
±1% to 490 m/ s2 (50 g) peak |
|
Transverse Sensitivity |
Less than 5% of axial. |
|
Input Voltage |
-24 ± 0.5 Vdc |
|
Bias Current |
2 mA nominal. |
|
Output Bias Voltage |
-8.5 ± 0.5 Vdc |
|
Cable Length Option in feet |
8 ft |
|
