in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
6x2.4x2.2cmWeight:
0.08kgCountry of Origin: :
USADescription:

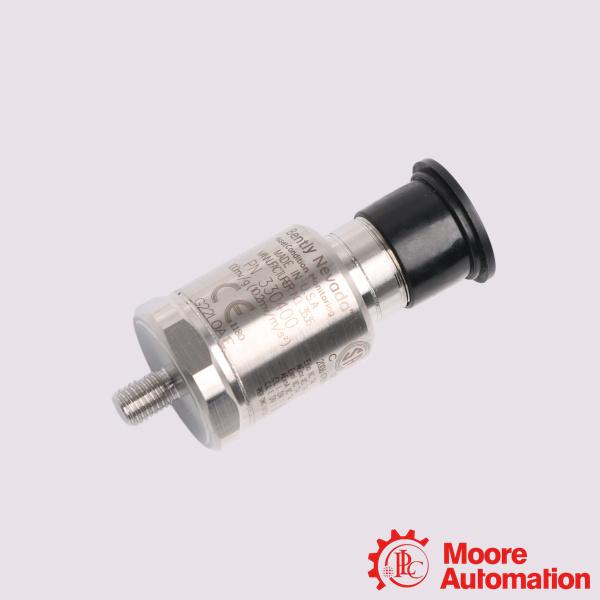

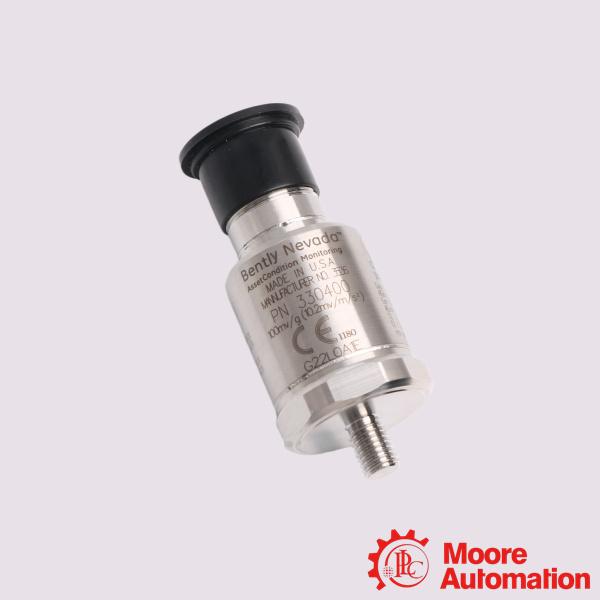

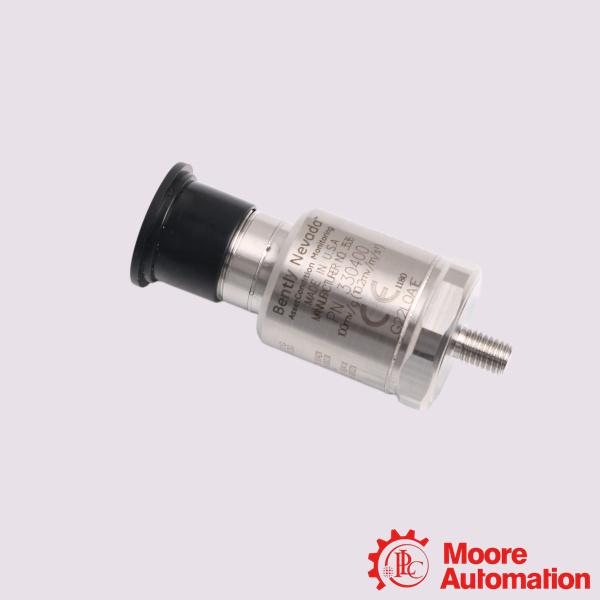

Bently Nevada 330400-02-00 Accelerometer
| Mfr. Part Number: |
330400-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330400-02-00 is a rugged, high-precision accelerometer for critical machinery asset condition monitoring applications requiring casing acceleration measurements, such as gear mesh monitoring. It meets the requirements of American Petroleum Institute (API) Standard 670 for accelerometers, offering a 50 g peak amplitude range, a sensitivity of 100 mV/g, and a frequency response spanning 10 Hz to 15 kHz. The 330425 model is identical in design except that it provides a larger amplitude range of 75 g peak and a sensitivity of 25 mV/g.
Application:
Gear Mesh Monitoring: Optimally tracks high-frequency vibrations in complex gearboxes.
Critical Machinery Protection: Continuous casing vibration tracking on multi-million dollar rotating assets.
Rolling Element Bearing Monitoring: Detects early-stage rolling element defects before catastrophic failure.
Aeroderivative and Industrial Gas Turbines: Monitors high-frequency structural elements and casing dynamics.
Frequently Asked Questions (FAQ)
Q:What is the proper installation torque?
A:The sensor must be torqued to exactly 4.1 N·m (3.0 ft·lb) during installation.Improper torque can degrade performance or cause false vibration readings.
Q:Can I integrate its output signal to measure velocity?
A:Extreme caution must be exercised if you integrate the acceleration output into a velocity signal. Mechanical and electrical noise can amplify heavily during integration, resulting in false alarms.
Q:What type of machinery is this accelerometer used for?
A:It is engineered for critical machinery applications that require casing acceleration measurements, notably high-frequency scenarios like gear mesh monitoring and rolling-element bearing defect tracking. It is designed explicitly to address the requirements of the American Petroleum Institute (API) Standard 670.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330400-02-00 |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ±5%. |
|
Amplitude Linearity |
±1% to 490 m/ s2 (50 g) peak. |
|
Broadband Noise Floor (10 Hz to 15 kHz) |
0.039 m/s2 (0.004 g) rms. |
|
Mounting Thread Option |
¼-28 UNF integral stud |
|
Input Voltage |
-24 ± 0.5 Vdc |
|
Bias Current |
2 mA nomina |
|
Output Bias Voltage |
-8.5 ± 0.5 Vdc |
|
Operating and storage temperature |
-55°C to +121°C (-67°F to +250°F) |
|
