in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
6x2.3x2.3cmWeight:
0.08kgCountry of Origin: :
USADescription:

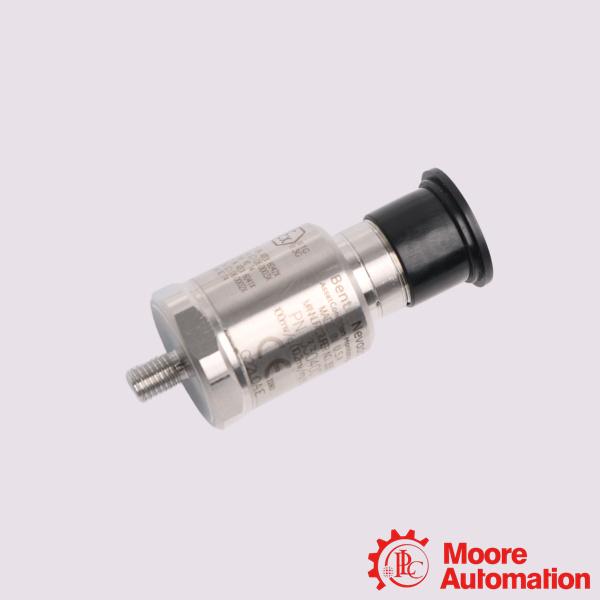

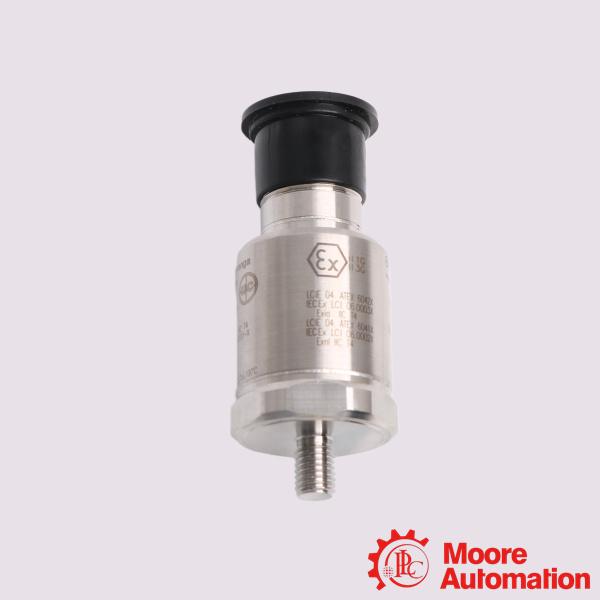

Bently Nevada 330400-02-00 130539-20 Accelerometer
| Mfr. Part Number: |
330400-02-00 130539-20 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

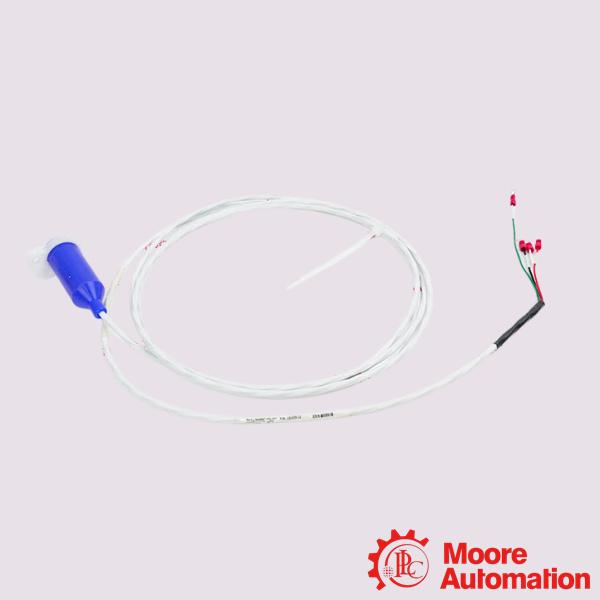

The Bently Nevada 330400-02-00 is an industrial accelerometer acceleration transducer, paired with the 130539-20, a 20-foot 3-conductor shielded interconnect cable. For critical machinery applications requiring casing acceleration measurements—such as gear mesh monitoring—the 330400 meets the requirements of American Petroleum Institute (API) Standard 670 for accelerometers. It offers an amplitude range of 50 g peak and a sensitivity of 100 mV/g. The 330425 model is identical in design, except that it provides a larger amplitude range of 75 g peak and a sensitivity of 25 mV/g.
Application:
Electric Motors & Generators: Evaluates stator and rotor imbalances, frame vibration, and structural loose parts.
Industrial Fans & Blowers: Continuously checks mechanical integrity in heavy industry exhaust systems, cooling towers, and ventilation setups.
High-Speed Turbomachinery: Monitors structural casing vibration on centrifugal compressors, steam turbines, and high-speed pumps.
Rolling-Element Bearing Monitoring: Detects early-stage inner/outer race defects or ball degradation before catastrophic failure occurs.
Frequently Asked Questions (FAQ)
Q:What are the mounting requirements and torque specs?
A:The sensor features a machined M8 x 1 integral mounting stud. It must be torqued down precisely to 4.1 N·m (3.0 ft·lb) on a flat, clean surface to ensure accurate high-frequency vibration transmission up to 15 kHz. Incorrect torque values can severely distort frequency response data.
Q:What is the purpose of the 130539-20 cable's elastomer boot?
A:The fluorosilicone elastomer boot at the sensor connection end creates an environmental seal over the 3-pin MIL-C-5015 receptacle. It provides crucial resistance against moisture, industrial solvents, oil splashes, and physical wear, ensuring structural signal integrity.
Q:Can this assembly be deployed in explosive environments?
A:No. The "-00" suffix in the accelerometer part number designates that this specific model does not carry hazardous area certifications (like ATEX, CSA, or IECEx). If your environment requires explosion-proof ratings, you must order the variant with appropriate approval options.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330400-02-00 130539-20 |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ±5%. |
|
Amplitude Linearity |
±1% to 490 m/ s2 (50 g) peak. |
|
Broadband Noise Floor (10 Hz to 15 kHz) |
0.039 m/s2 (0.004 g) rms. |
|
Mounting Thread Option |
¼-28 UNF integral stud |
|
Input Voltage |
-24 ± 0.5 Vdc |
|
Bias Current |
2 mA nomina |
|
Output Bias Voltage |
-8.5 ± 0.5 Vdc |
|
Operating and storage temperature |
-55°C to +121°C (-67°F to +250°F) |
|
Mounting Thread Option |
M8 X 1 integral stud |
|
Agency Approval Option |
None |
|
Cable Length Option in feet |
20 ft (6.10 m) |
|
