in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
4.5x2.3x2.3cmWeight:
0.06kgCountry of Origin: :
USADescription:
Bently Nevada 200350-02-00-00 130539-06 Accelerometer
| Mfr. Part Number: |
200350-02-00-00 130539-06 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 200350 and 200355 Accelerometers are general purpose, case-mounted seismic transducers designed Card, part number 149811-02 and the Seismic Direct Input Card, part number 164746-01. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

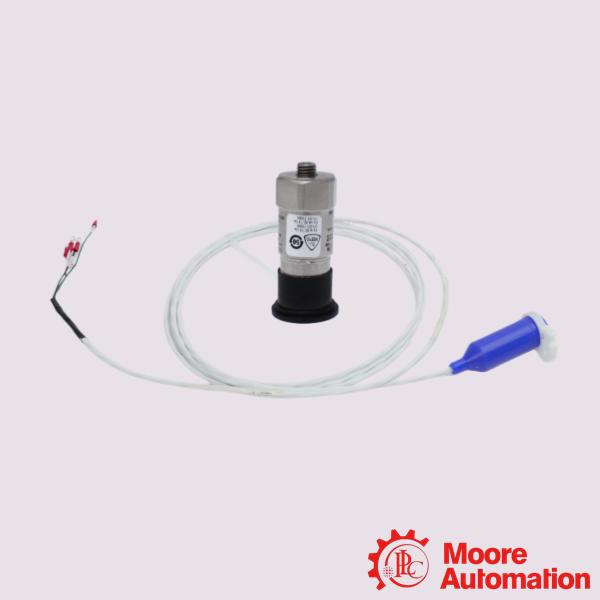

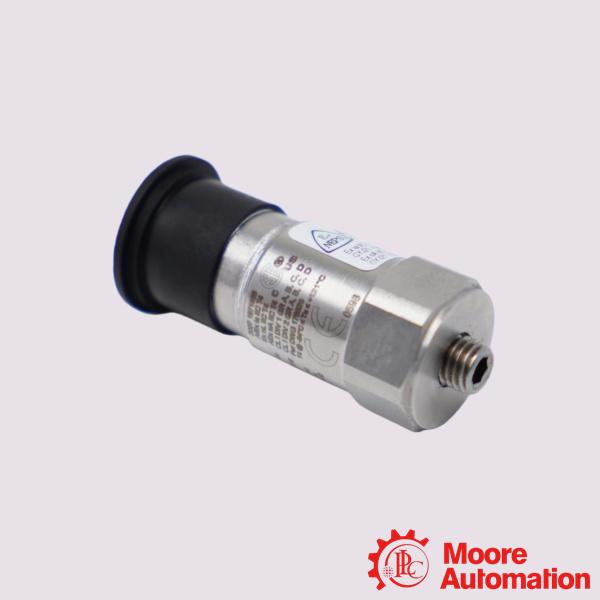

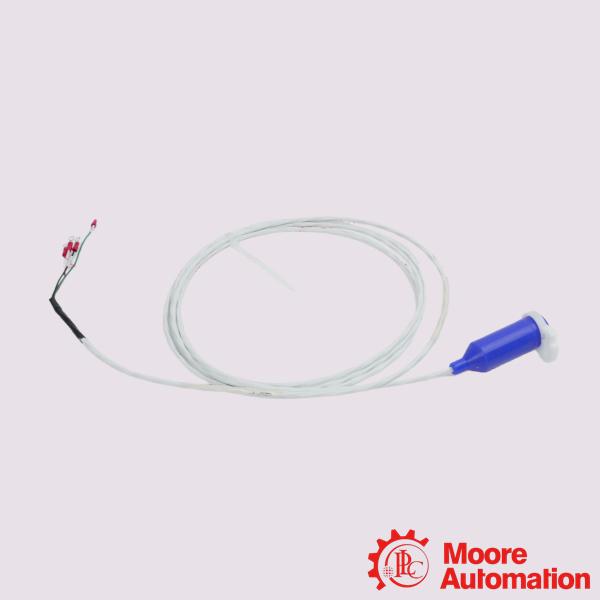

The Bently Nevada 200350-02-00-00 is a general-purpose, case-mounted industrial accelerometer. It is paired with the Bently Nevada 130539-06, which is a 6-foot, 3-conductor shielded interconnect cable equipped with a fluorosilicone elastomer boot. The 200350 and 200355 Accelerometers are contained within a hermetically sealed, stainless steel case. The provides an extremely rugged transducer, well suited for harsh industrial environments. Each transducer’s top mounted, 2-pin connector (MIL-C5015) allows for easy installation and removal of the interconnecting signal cable. A ¼-28 threaded hole on the bottom of the casing accommodates multiple mounting options.
Application:
Gas & Steam Turbines: Tracks continuous case vibration to avoid catastrophic blade or rotor contact.
Cooling Tower Fans: Standardized on long-distance monitoring lines to identify structural flex or blade imbalance.
Centrifugal Compressors: Detects dynamic imbalances, vane pass frequency issues, and alignment faults.
High-Pressure Pumps: Isolates structural loosening and piping strain on transport lines.
Frequently Asked Questions (FAQ)
Q:Can this model be deployed in explosion-hazard locations?
A:No, the "-00" suffix at the end of the sensor part number designates a variant with no active hazardous area approvals. If your deployment zone requires ATEX, IECEx, or Class/Division certifications, you must source a module ending in "-01" or "-CN".
Q:What is the purpose of the 130539-06 cable's shield and boot?
A:The internal 3-conductor shield protects raw voltage data from extreme electromagnetic (EMI) and radio frequency (RFI) interference common in industrial plants. The molded fluorosilicone boot seals the sensor's MIL-C-5015 connection against moisture, oil, and splash entry.
Q:What monitoring hardware is compatible with this accelerometer?
A:The 200350 sensor sends differential voltage signals directly to the Trendmaster Pro system. It integrates specifically with the 149811-02 Constant Current Direct Input Card and the 164746-01 Seismic Direct Input Card.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：200350-02-00-00 130539-06 |
|
Mounting Stud |
¼-28 to M8 x 1.25 Stainless Steel |
|
Tolerance |
100 mV/g ± 20% (10.2 mV/m/s^2 ±20%) |
|
Approvals |
No Approvals |
|
Sensitivity |
100 mV/g ±20% (10.2 mV/m/s^2 ±20%) |
|
Measurement Range |
± 50 g |
|
Transverse Sensitivity |
≤ 7% |
|
Amplitude Linearity |
± 1% |
|
Output Bias Voltage |
8 to 12 VDC |
|
Excitation Voltage |
18 to 28 VDC |
|
Operating Temperature Range |
-65°F to +250 ºF (-54°C to +121 ºC) |
|
